Yihetai manufactures custom trailer wiring harnesses, 4-pin and 7-way trailer cable assemblies, trailer lighting harnesses, hitch wiring harnesses, adapters and extension cables for OEM trailer manufacturers, automotive accessory brands and equipment suppliers.
A trailer wiring harness is an electrical cable assembly that connects a towing vehicle to a trailer, allowing power and signals to reach the trailer’s lighting and other supported electrical systems. It typically includes wires, connectors, terminals, and protective materials designed for specific applications.
A trailer wiring harness carries electrical connections for tail lights, turn signals, brake lights, and ground. Depending on the connector configuration, it may also support electric trailer brakes, reverse lights, or auxiliary power circuits.
4-Pin Trailer Harness
Lighting, brake and auxiliary circuits by design
Tail, stop, turn and marker light wiring
Vehicle-side adapter and towing connections
Connector adaptation and custom cable lengths
Moisture-resistant trailer wiring options

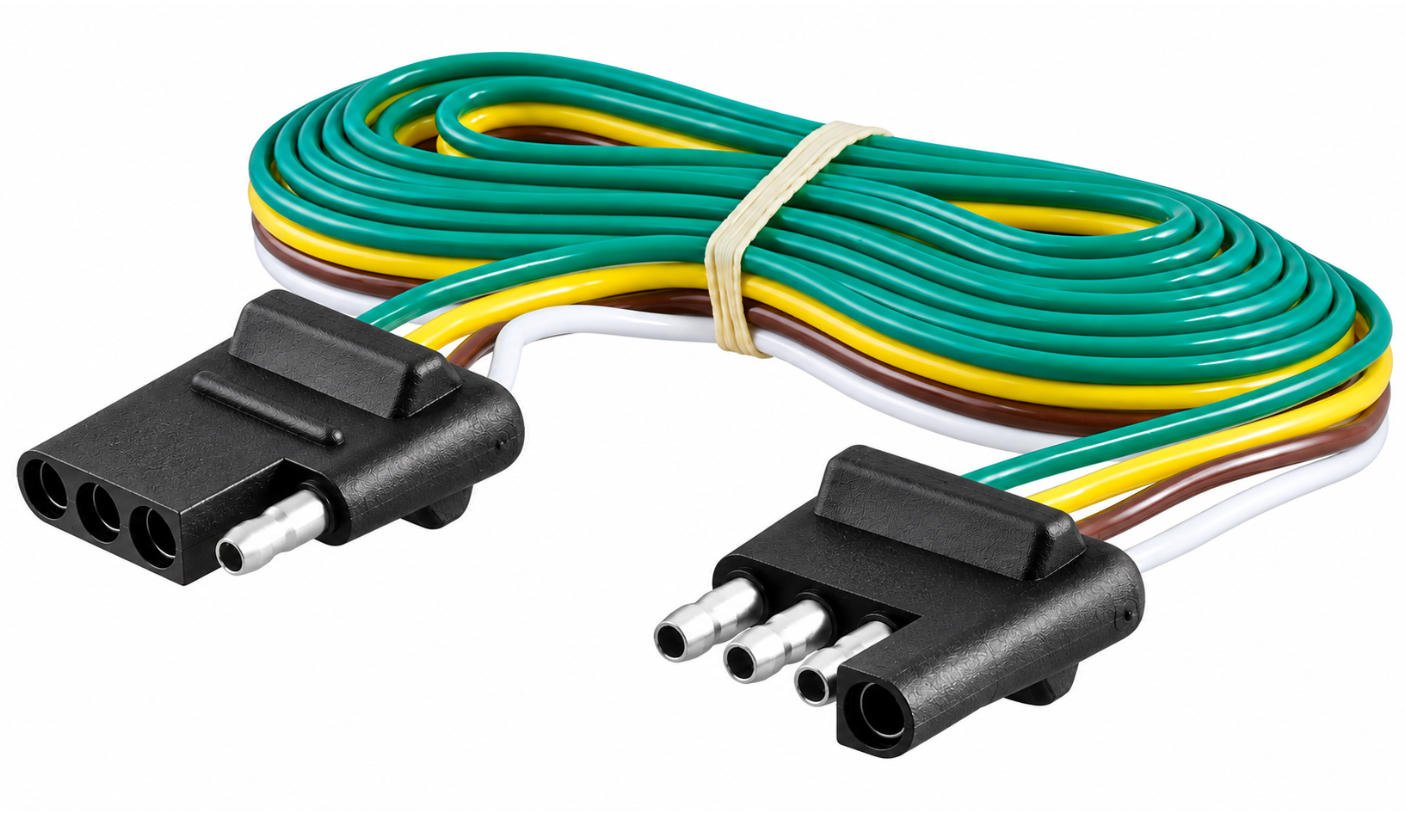

Yihetai manufactures custom 4 pin trailer wiring harness assemblies for trailer lighting and OEM towing applications. Each harness can be built to customer-approved drawings, connector specifications, and wiring requirements, with flexible cable lengths, branching layouts, and protective materials.

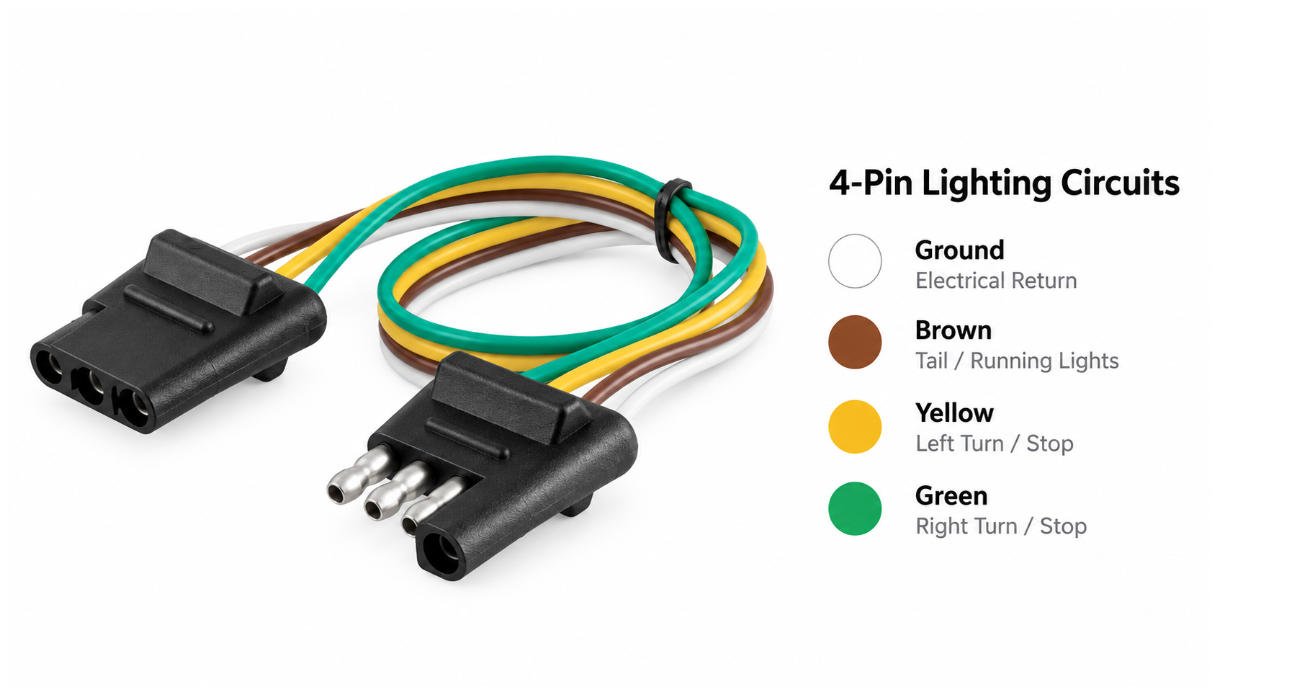

A 4 way flat trailer wiring harness commonly provides four electrical connections for ground, tail/running lights, left turn/stop lights, and right turn/stop lights. It is widely used in utility trailers, small cargo trailers, and other basic trailer lighting applications.
A typical North American trailer wiring harness 4 pin configuration includes four circuits:
Yihetai customizes 4 pin trailer wiring harnesses with specified cable lengths, left and right tail light branches, connector types, wire gauges, protective sleeving, and identification labels.
From prototypes to volume production, our assemblies are manufactured to customer specifications and undergo 100% electrical testing according to approved requirements.

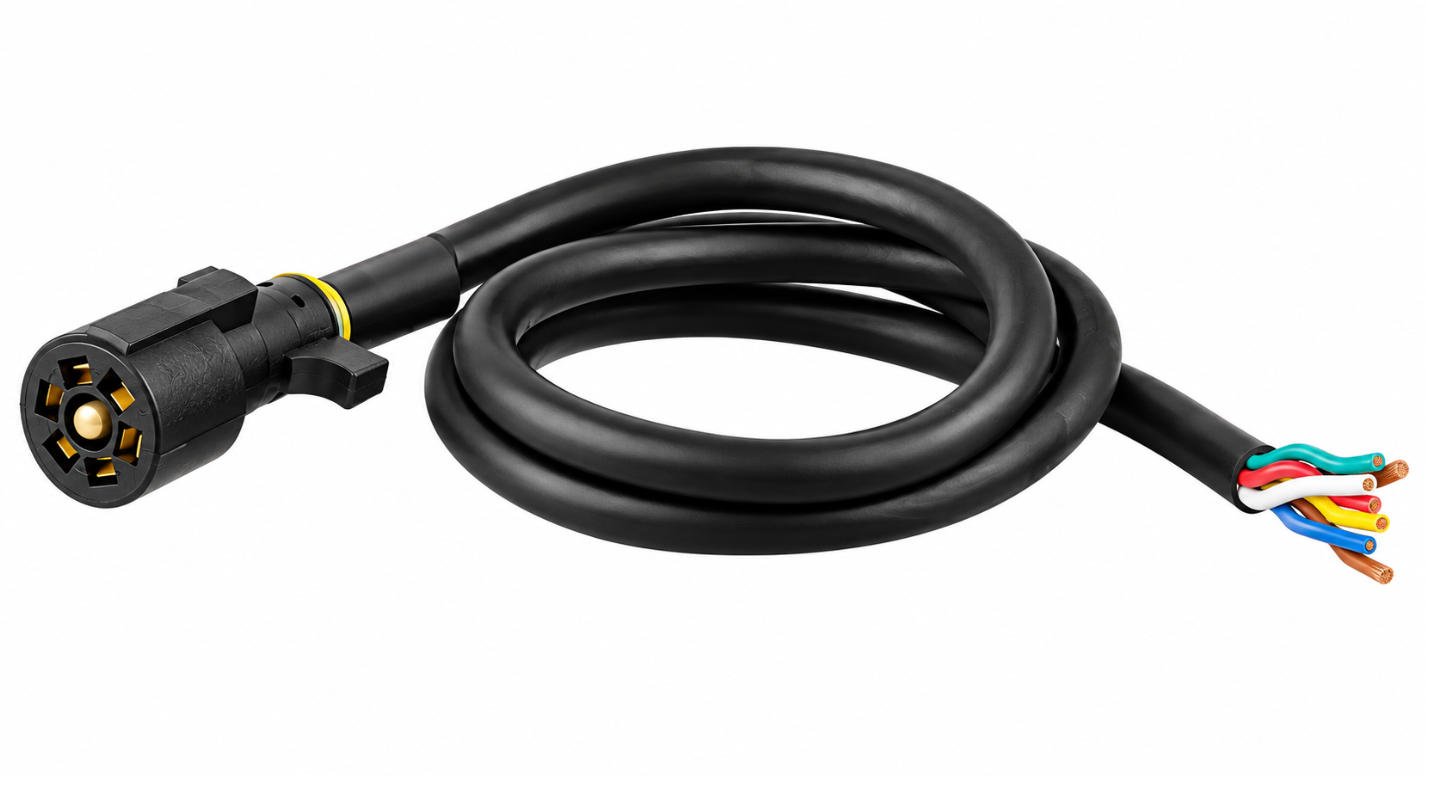

Yihetai manufactures custom 7 way trailer wiring harness assemblies for OEM trailer manufacturers, towing equipment suppliers, and automotive applications. Our harnesses can be configured with different connector types, wire gauges, cable lengths, and circuit layouts to meet customer-approved specifications.

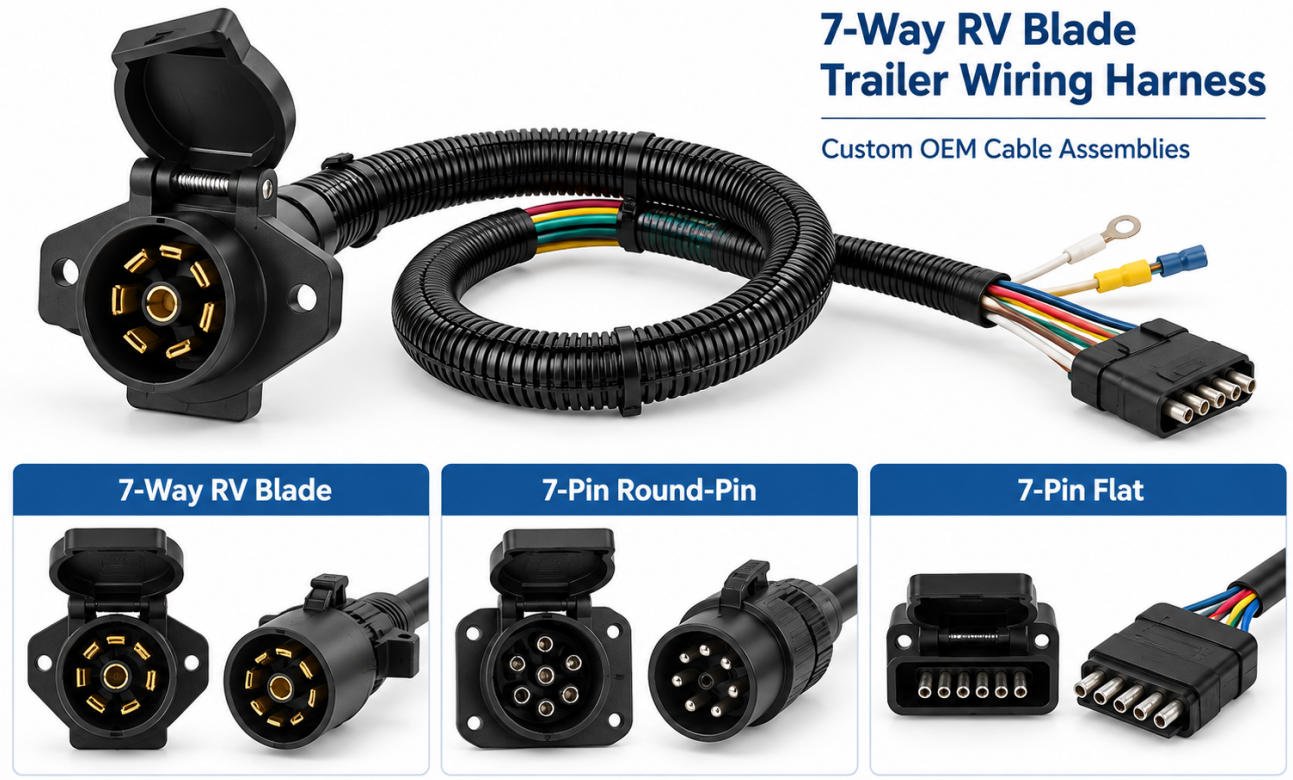

A 7 way RV blade trailer wiring harness uses a seven-contact connector commonly found in North American towing applications. Depending on the approved configuration, it can provide connections for trailer lighting, electric brake control, auxiliary power, and reverse lights.
Not all 7 pin trailer wiring harness connectors are interchangeable. Common designs include North American 7-Way RV Blade connectors, 7-pin round-pin connectors, and 7-pin flat trailer connectors used in markets such as Australia.
Each design has its own mating interface and pin configuration. Connector compatibility must be confirmed before manufacturing or installation.
A 7-way trailer harness may include circuits for electric trailer brakes, auxiliary power, and reverse lights, in addition to standard lighting connections.
Wire assignments, conductor sizes, and connector pinouts must follow the approved electrical design. The harness provides electrical connections but does not replace brake controllers or other required electronic modules.
H3Custom 7-Way Trailer Cable Assemblies
Yihetai manufactures custom 7-way trailer cable assemblies with customer-specified wire lengths, gauges, connector housings, terminals, branching layouts, protective sleeving, and labeling.
From prototypes to volume production, our assemblies undergo 100% electrical testing according to customer-approved requirements.

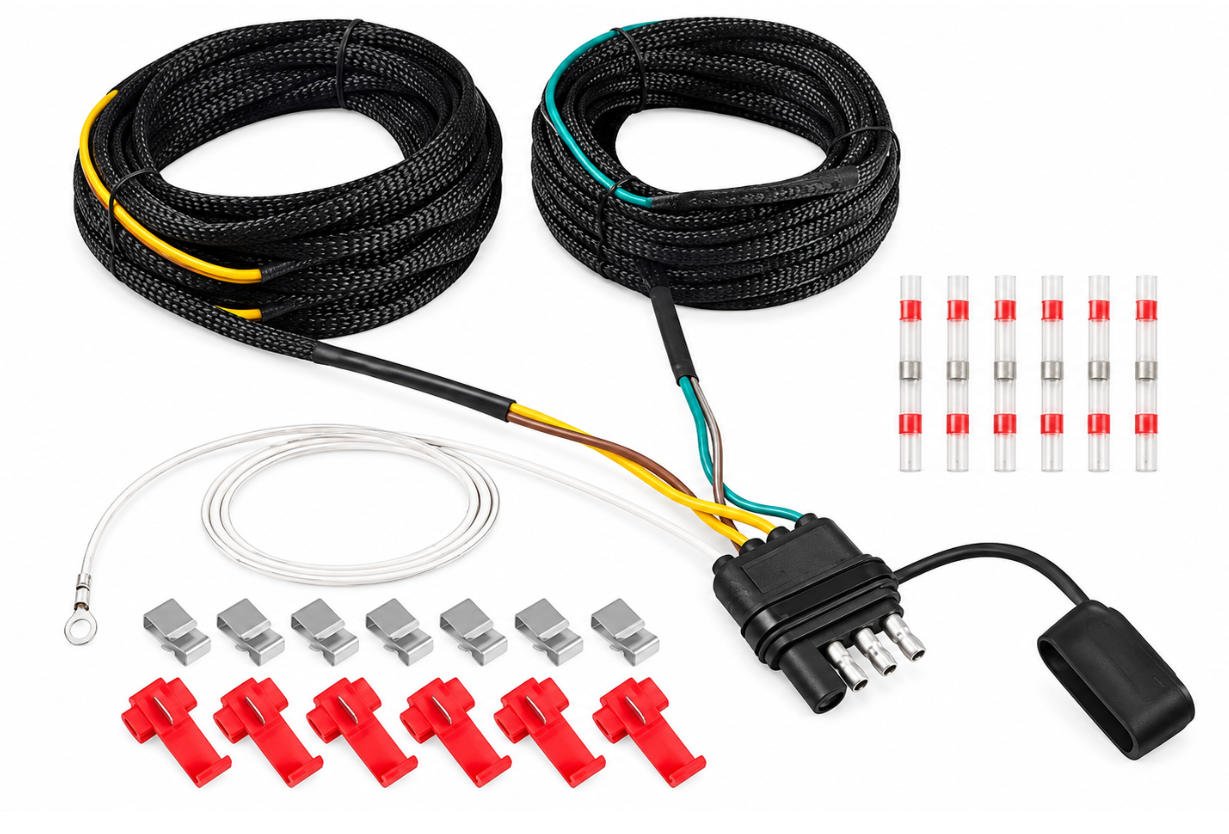

Yihetai manufactures custom trailer light wiring harnesses and trailer wiring harness kits for OEM trailer manufacturers, automotive lighting brands and equipment suppliers. Our cable assemblies are designed to connect trailer tail lights, brake lights, turn signals, side marker lights and other specified lighting components.
Depending on the approved circuit design, it may carry tail light, brake light, left and right turn signal, and ground connections. Custom tail light harnesses can include separate left and right lamp branches, specified lamp connectors, crimped terminals, ground leads, splices and protective sleeving.
A trailer LED light wiring harness is designed to connect LED tail lights, side marker lights, clearance lights and other compatible trailer lighting devices. LED lighting systems may require specific connector configurations, circuit assignments, ground connections or vehicle-side electronic interfaces.

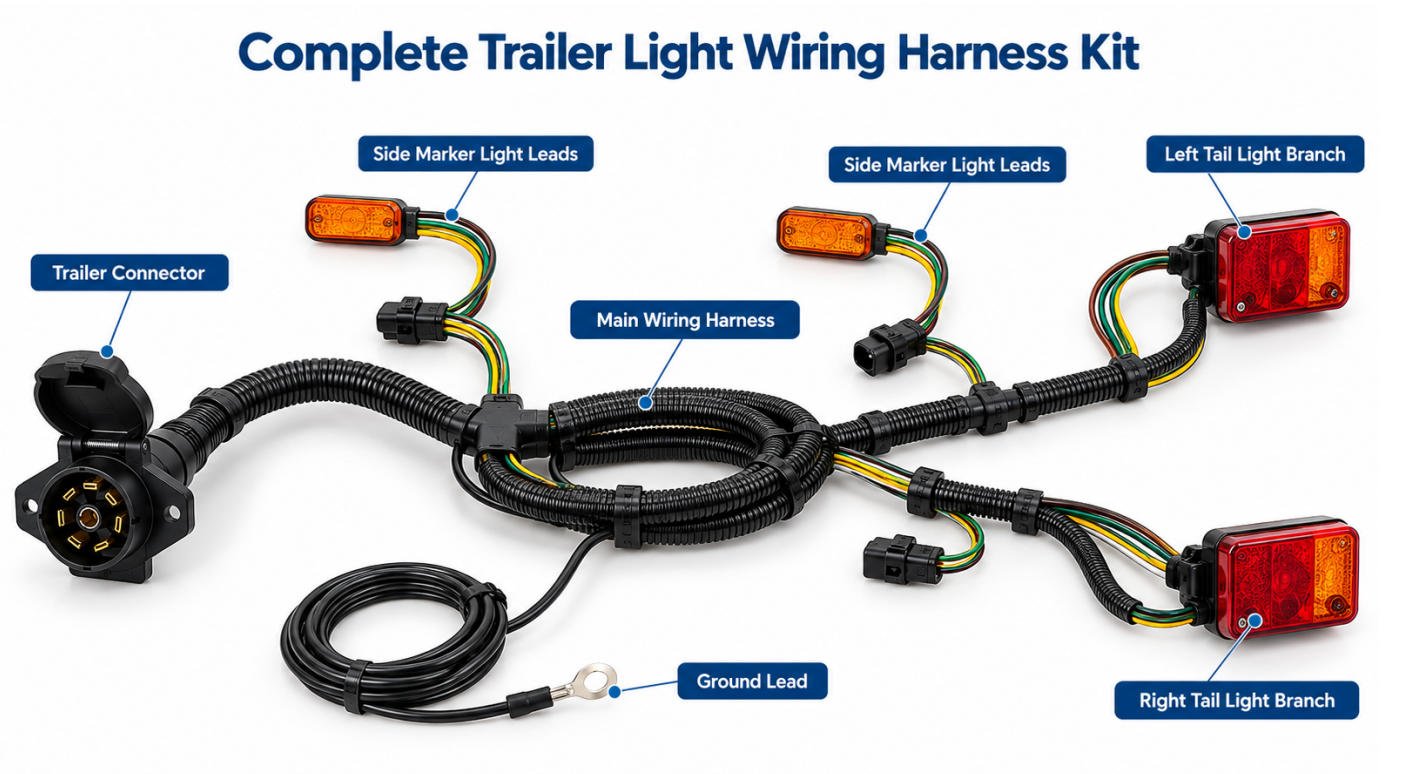

A trailer wiring harness kit combines the necessary cable assemblies, connectors, terminals and protective components into a coordinated package for trailer manufacturing or aftermarket distribution.
Yihetai can manufacture and assemble trailer wiring harness kits according to customer drawings, samples, wiring specifications and packaging requirements. Kits can be supplied with customer-defined component combinations, part numbers and OEM packaging to support repeatable production and installation.

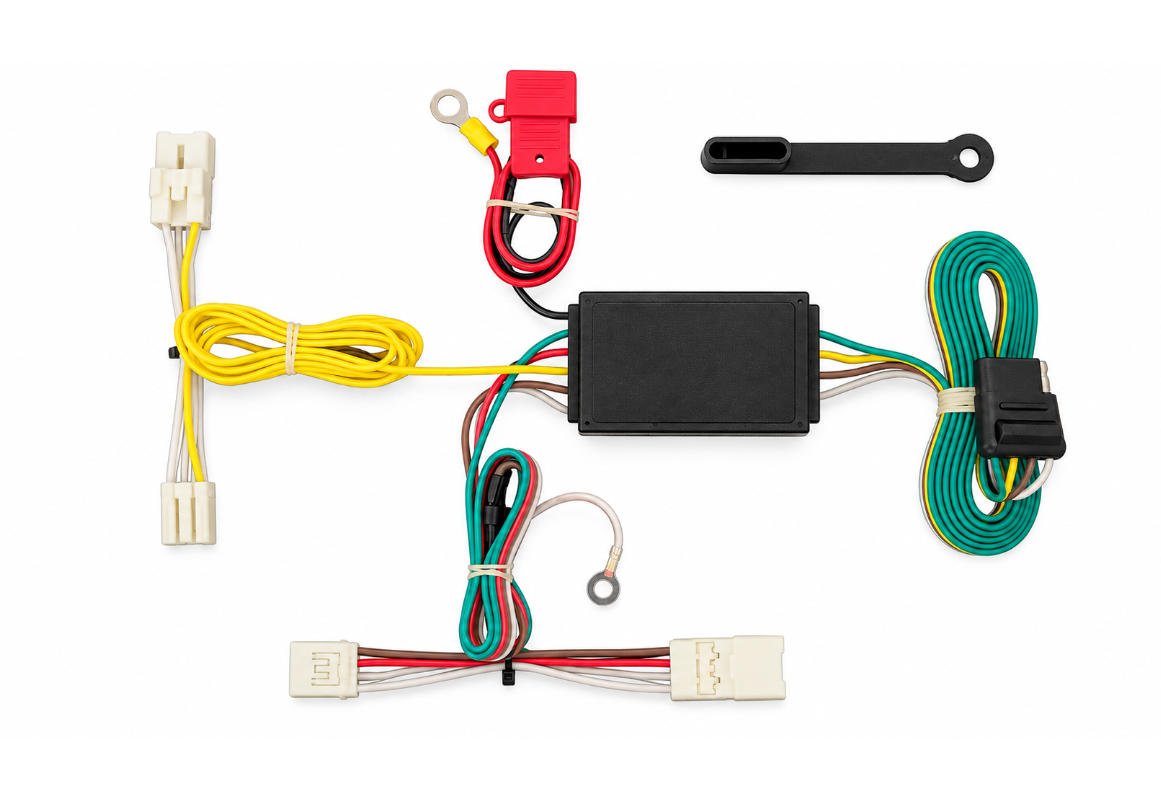

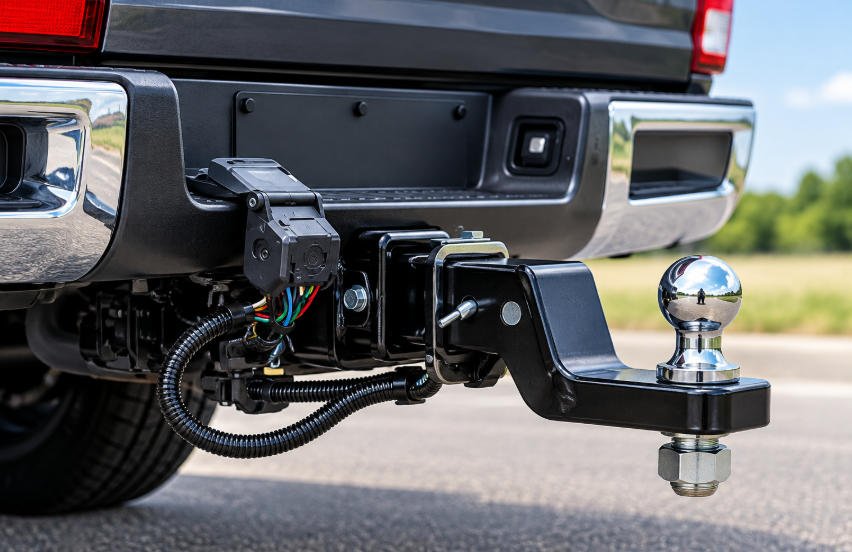

Yihetai manufactures trailer hitch wiring harness assemblies for connecting vehicle-side towing circuits to trailer-side connectors.
Depending on the application, the harness can be designed as a direct vehicle-side adapter, plug-and-play assembly, T-connector harness or custom OEM adapter.
A wiring harness for trailer hitch connects the vehicle electrical system to the trailer connector.
Typical structure:

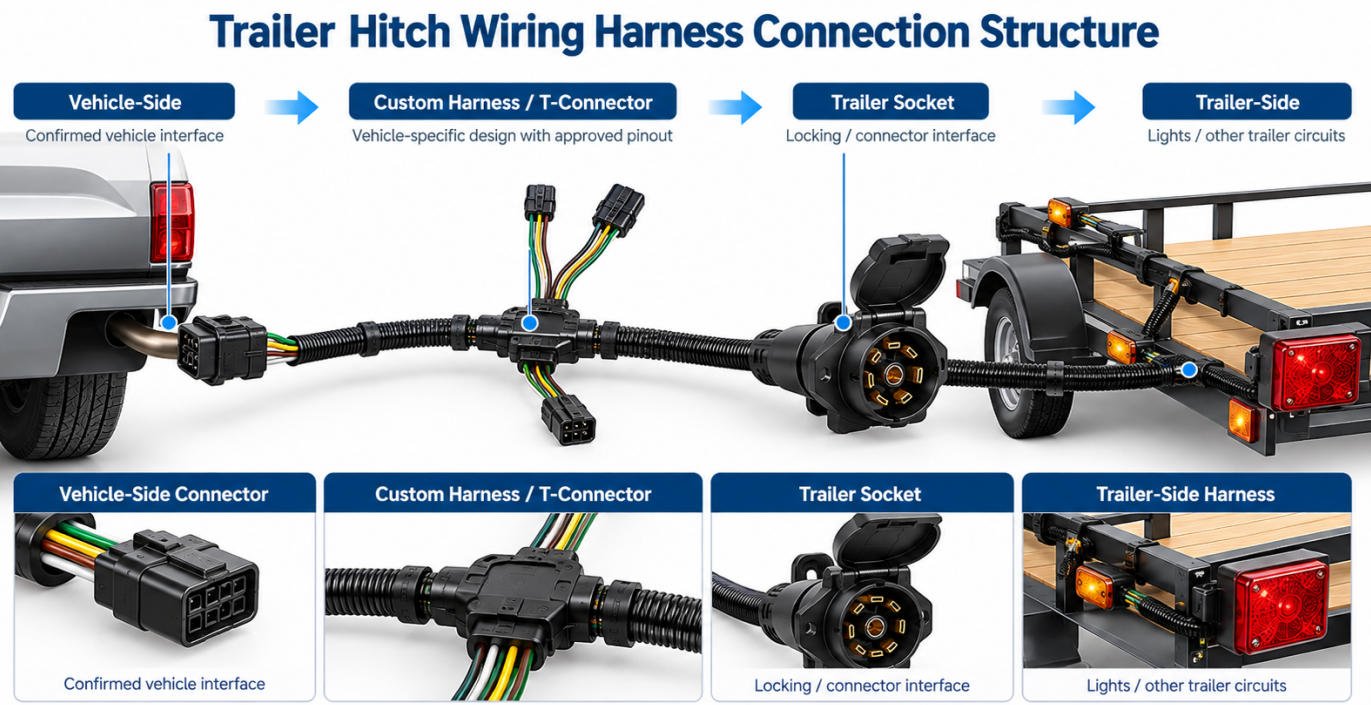

Vehicle Wiring → Hitch Wiring Harness → Trailer Connector → Trailer Harness
Custom options may include connector type, cable length, wire gauge, protection and mounting configuration.
A plug and play trailer wiring harness is designed around a confirmed vehicle connector and trailer-side interface.
Typical structure:
Vehicle Factory Connector → Pre-Terminated Harness → Trailer Socket
When correctly specified, this design can reduce cutting and field wiring.
A T-connector harness can connect into existing vehicle-side lighting or towing connectors while maintaining the required vehicle connections.
The exact connector, pinout and circuit functions must be confirmed for the specific vehicle application.
Yihetai can manufacture custom OEM trailer hitch adapters according to customer drawings, connector specifications and approved pinouts.
Available options include:

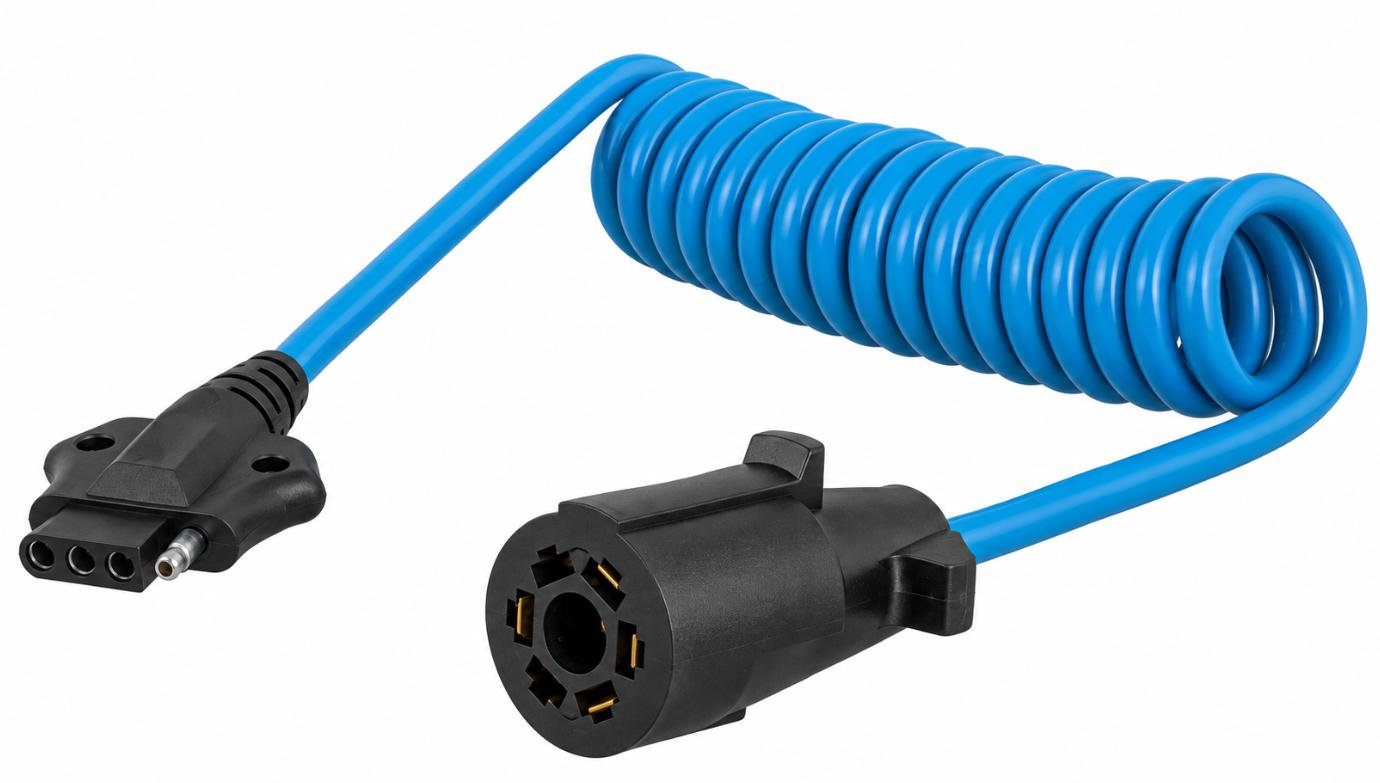

Yihetai manufactures custom trailer wiring harness adapter, extension cable, pigtail, and connector-conversion assemblies for OEM trailer, towing, and vehicle integration projects.
These assemblies can be produced according to confirmed connector mating, approved circuit mapping, cable length, wire gauge, jacket, terminal, and branch requirements.
Trailer Adapter & Extension Selection Guide
| Product | OEM Customization |
|---|---|
| 7-Way to 4-Way Adapter | Confirmed connector mating and circuit mapping |
| Trailer Extension Cable | Length, wire gauge, jacket, and plug type |
| Trailer Pigtail | Short leads, stripped ends, terminals, and connectors |
| Custom Adapter Harness | Connector A/B, approved pinout, cable length, and branch configuration |

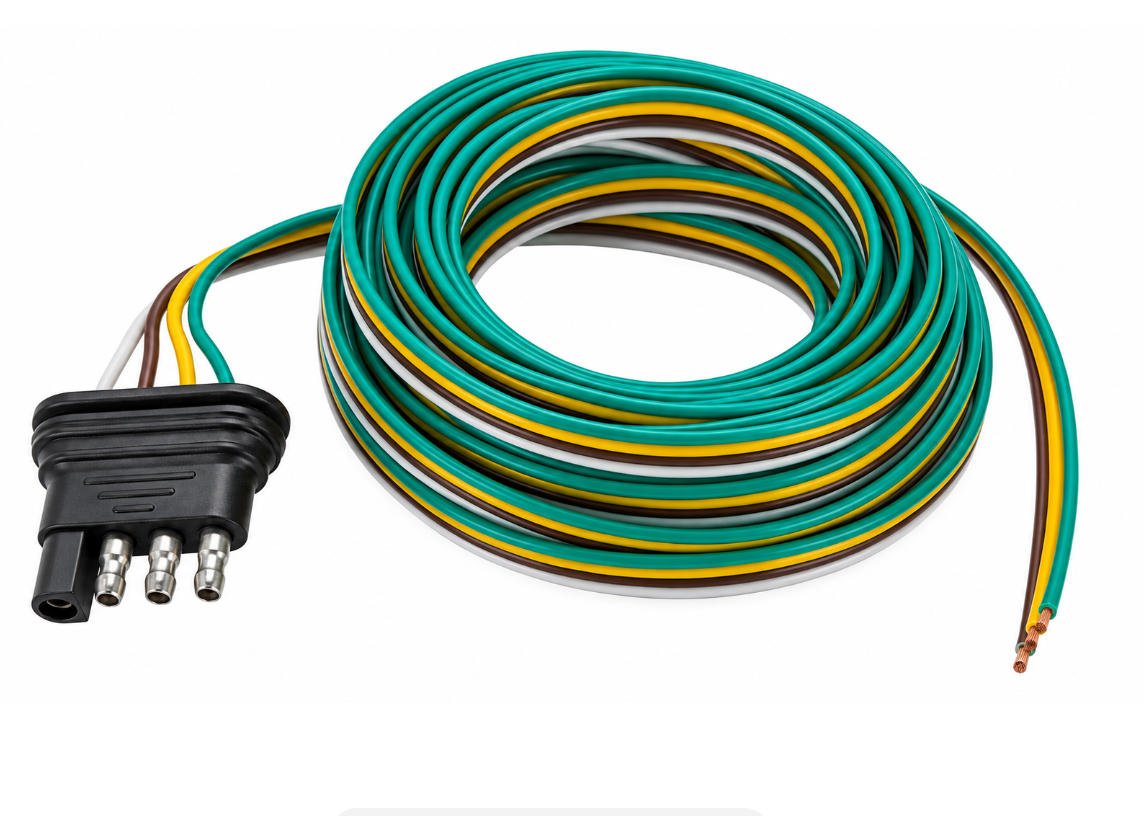

Yihetai manufactures custom boat trailer wiring harness assemblies for trailer lighting and marine-related towing applications. Designed according to customer specifications, our harnesses can incorporate moisture-resistant connectors, protective cable materials, and corrosion-resistant components to address exposure to water, road salt, abrasion, and outdoor conditions.

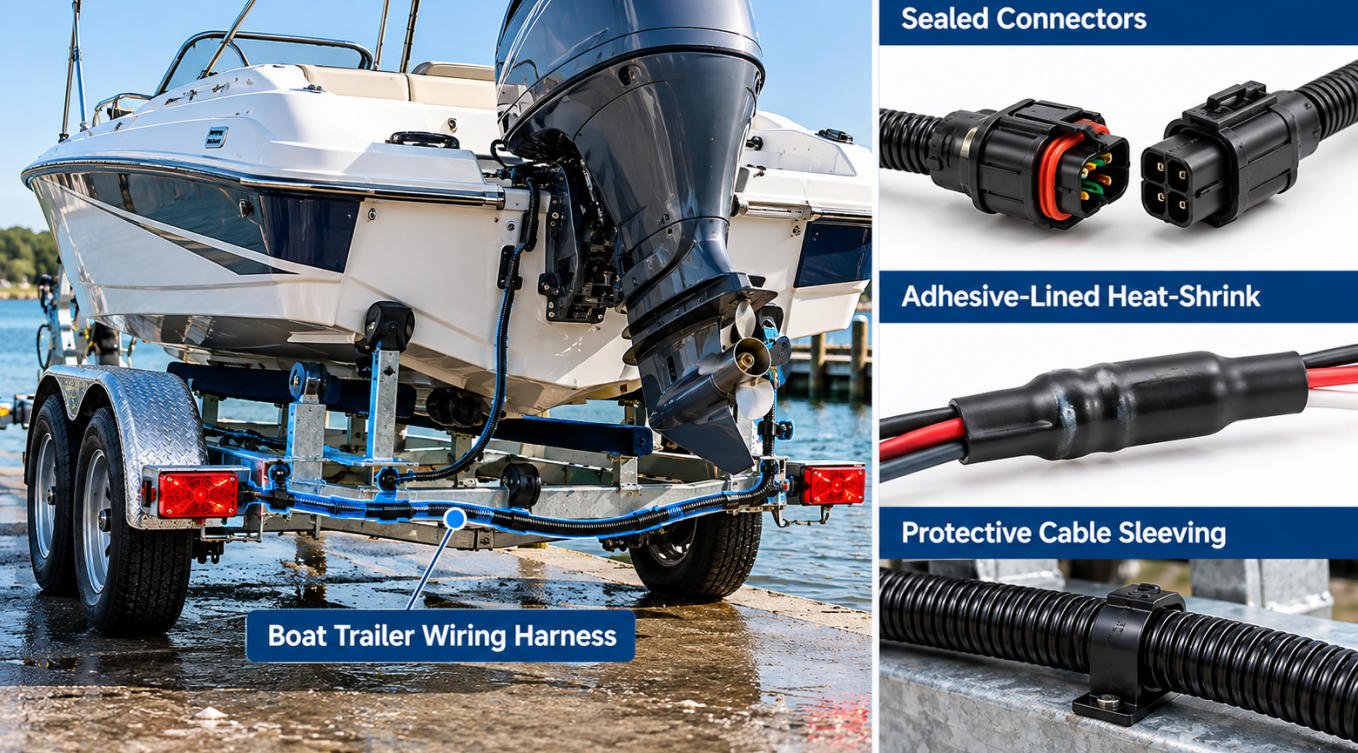

Customer-specified sealing solutions for rain, road spray and wet trailer environments.

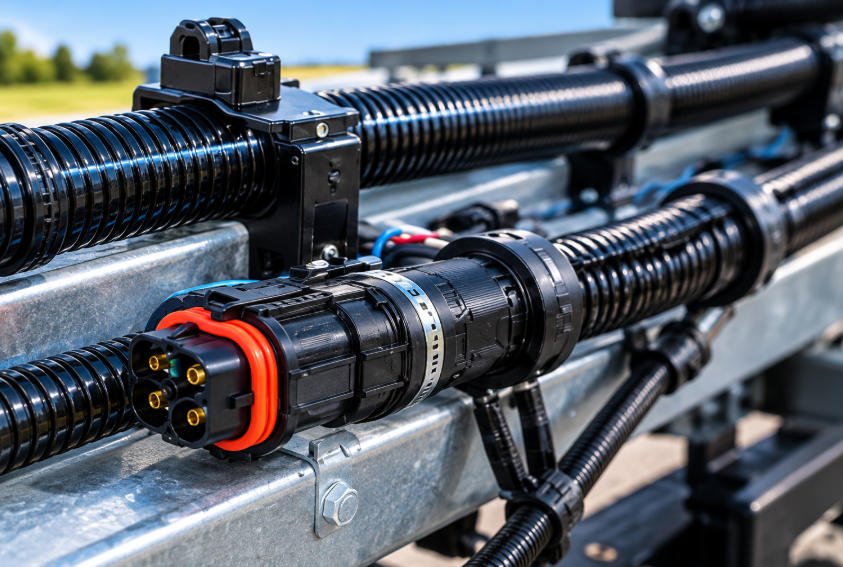

Sleeving, conduit and protective routing options for trailer frames and external cable runs.
Suitable terminal finishes and protective materials selected for specified corrosion exposure.
Specified connector seals, heat-shrink and splice protection for demanding environments.

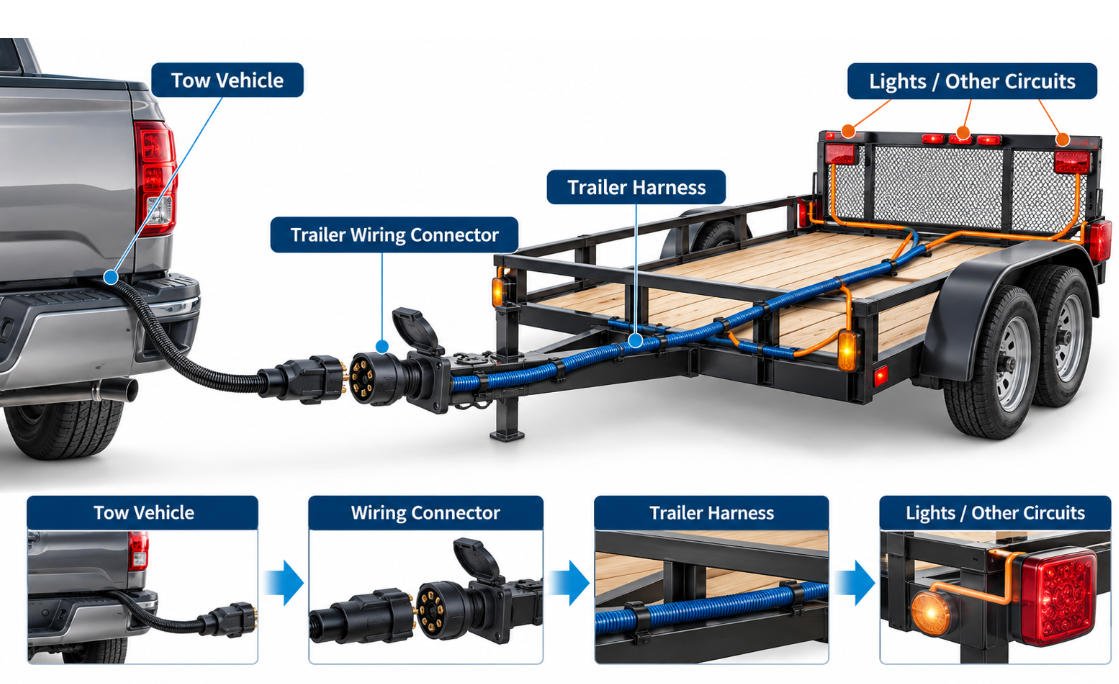

A trailer wiring harness diagram helps show how the tow vehicle, connector and trailer circuits are related.
Because trailer connectors are available in different formats, the correct diagram should always match the actual connector type, viewing orientation and approved pin assignment.
Basic Trailer Wiring Harness Diagram
A basic trailer wiring system can be understood as:
Tow Vehicle → Trailer Connector → Trailer Harness → Trailer Lights / Auxiliary Circuits
Depending on the application, the harness may carry lighting circuits only or include additional functions such as auxiliary power, reverse or electric brake circuits.

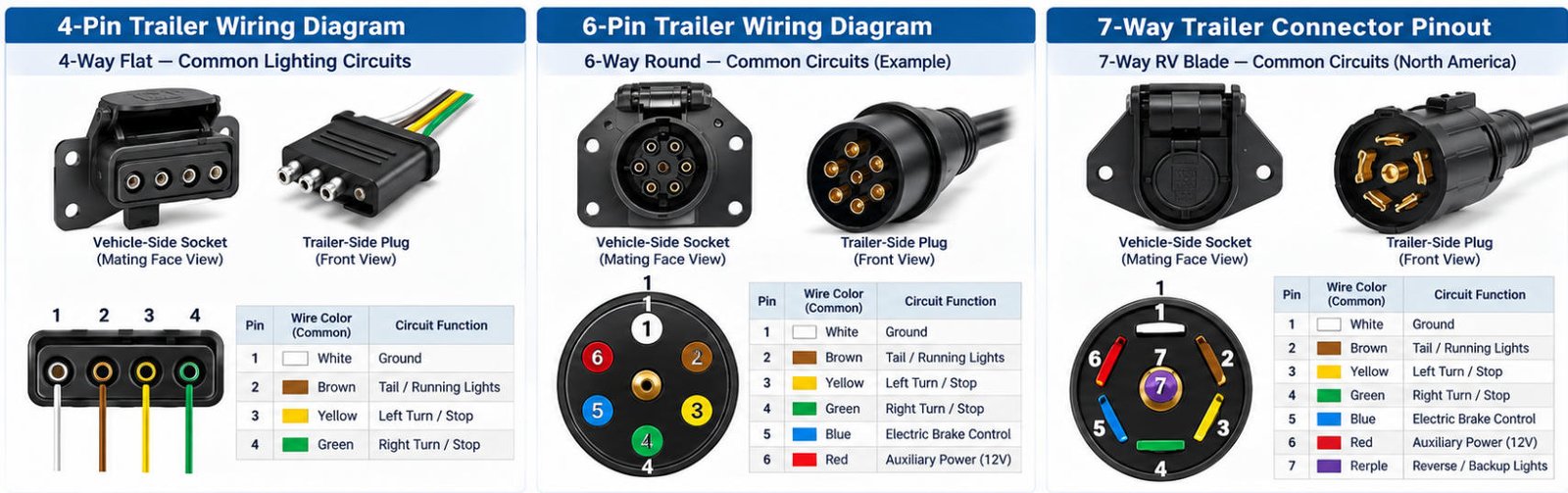

A 4 pin trailer wiring diagram typically shows the common lighting functions used in a 4-way flat trailer connection.
Typical circuits may include:
This is the most common basic trailer-lighting configuration for light-duty trailer applications.
A 6 pin trailer wiring diagram is commonly used where more than basic lighting functions are required.
Depending on the connector type and application, a 6-way harness may include circuits for:
Different 6-way connector styles may have different pin layouts, so the connector form and circuit assignment must be confirmed before production or installation.
A 7 way trailer wiring diagram should always be matched to the specified connector type, such as RV blade, round-pin or other approved 7-way format.
Typical 7-way circuits may include:
Connector standards should not be mixed. A 7-way diagram must be created according to the approved connector style and customer-defined pinout.

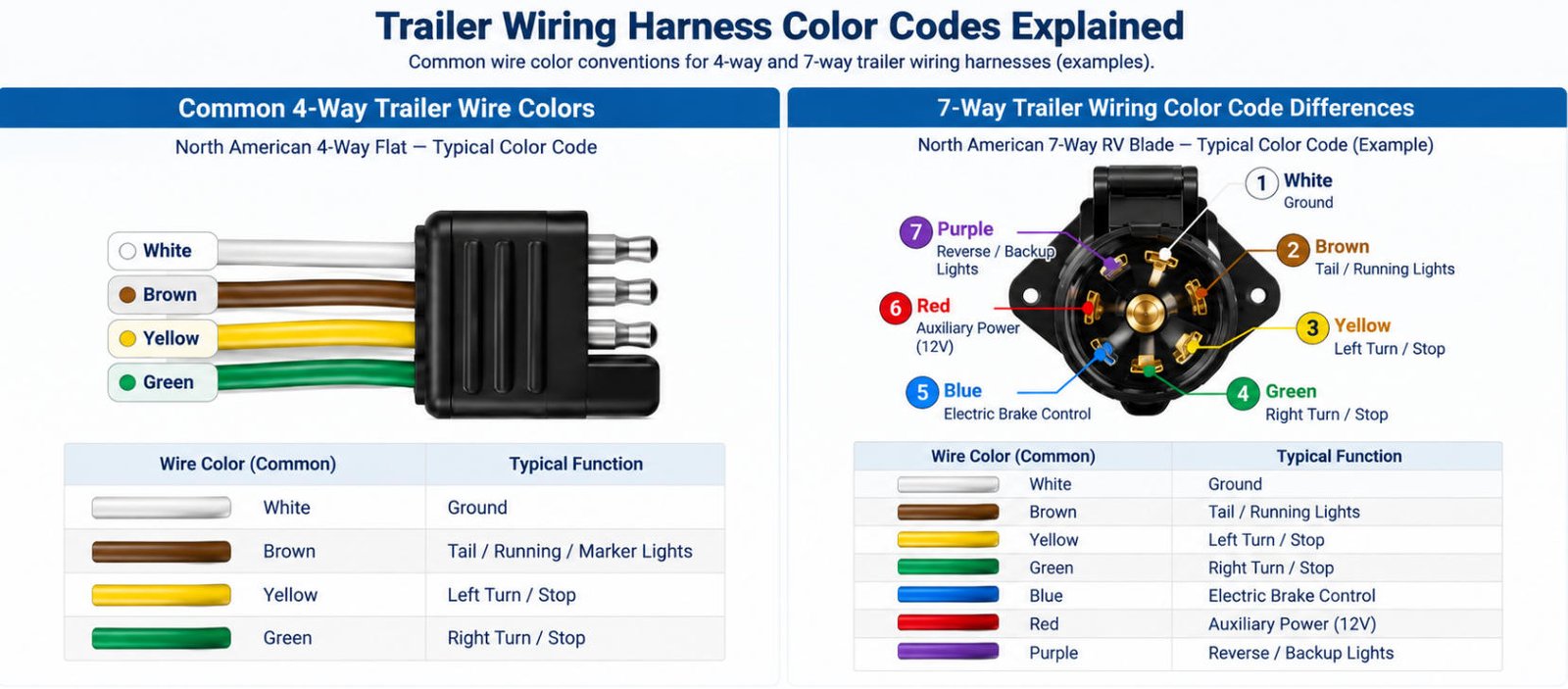

A trailer wiring harness color code helps identify the electrical functions assigned to individual wires in a trailer cable assembly. Common functions include ground, tail and running lights, brake lights, turn signals and, depending on the connector configuration, electric brake control, reverse lights and auxiliary power.
Wire color identification is useful when reviewing a trailer wiring diagram, preparing an OEM harness specification or checking connections during manufacturing. However, trailer wire colors are not universally standardized across every connector type, vehicle, trailer manufacturer or regional market.
| Common 4-Way Color | Typical Function |
|---|---|
| White | Ground |
| Brown | Tail / Running / Marker Lights |
| Yellow | Left Turn / Stop |
| Green | Right Turn / Stop |
A 7 way trailer wiring color code can be different from a standard 4-way flat configuration. Seven-way connectors may include additional circuits for electric trailer brakes, auxiliary power and reverse lights.
Even within North American 7-way RV blade connectors, Traditional and SAE J2863 wiring configurations can use different colors for the same electrical functions.
For example:
| Circuit Function | Traditional RV Blade Reference | SAE J2863 RV Blade Reference |
|---|---|---|
| Tail / Running Lights | Green | Brown |
| Left Turn / Brake | Red | Yellow |
| Right Turn / Brake | Brown | Green |
| Auxiliary 12V Power | Black | Orange |
| Reverse Lights | Yellow | Gray |
Not all trailer wiring harnesses are interchangeable. The correct solution depends on the vehicle connector, wiring configuration, trailer connector and any required electronic interface.
A universal trailer wiring harness can be adapted to different applications, but connector compatibility, circuit functions and pin assignments must be verified before installation.
Depending on the vehicle, additional wiring, splicing or an interface module may be required.
A vehicle specific trailer wiring harness is designed around a defined vehicle-side connector and approved wiring configuration.
When correctly matched, a plug and play trailer wiring harness can simplify installation and reduce cutting or field wiring.
However, some vehicles may still require additional electronic modules for lighting control, signal conversion or vehicle communication.
| Feature | Universal Harness | Vehicle-Specific Harness |
|---|---|---|
| Connector Compatibility | Must be verified | Designed for a defined vehicle interface |
| Wiring & Pinout | Requires circuit verification | Based on approved vehicle configuration |
| Installation | May require additional wiring | Can simplify installation when compatible |
| Electronic Interface | May require additional module | Defined by vehicle electrical system |
| OEM Customization | By specification | By vehicle and equipment requirements |
A 4-pin trailer wiring harness typically supports basic trailer lighting functions, including ground, tail/running lights, and left/right turn and stop lights. A 7-way trailer wiring harness can support additional circuits such as electric brake control, auxiliary power, and reverse lights. Available functions depend on the connector standard and approved wiring configuration..
Not all trailer wiring harnesses are universal. A universal trailer wiring harness may work across multiple applications, but connector compatibility, circuit functions, and electrical requirements must be verified. Some vehicles require vehicle-specific connectors or electronic interface modules. Yihetai manufactures custom harnesses according to customer-approved specifications.
In many North American 4-way flat trailer harnesses, white typically indicates ground, brown indicates tail/running lights, yellow indicates left turn/stop, and green indicates right turn/stop. However, trailer wiring harness color codes vary by connector type and manufacturer. Always verify the approved pinout rather than relying on wire colors alone.
A 4-pin trailer wiring diagram identifies four common circuits: ground, tail/running lights, left turn/stop, and right turn/stop. First, confirm the connector type and whether the diagram shows the mating face or wire-entry side. Then match each contact to the approved circuit assignment. Do not assume pin positions from wire colors alone.
A 6-pin trailer connector commonly supports basic lighting plus additional circuits such as electric brakes and auxiliary power, depending on its configuration. A 7-pin trailer connector provides seven contacts and may support an additional function, such as reverse lighting. Connector shapes, contact arrangements, and pinouts vary by standard, so compatibility must be confirmed.
Yes. A compatible 7-way to 4-way trailer adapter can connect the required lighting circuits from a 7-way vehicle-side connector to a 4-way trailer plug. However, the adapter must match the connector types and approved circuit assignments. A passive adapter cannot create electrical signals that the towing vehicle does not provide.
Many plug and play trailer wiring harnesses are designed for specific vehicle models, years, or factory connector configurations. Proper compatibility requires verification of the vehicle-side interface, trailer-side wiring, and any required electronic modules. Not every towing vehicle supports a passive plug-and-play harness without additional electrical components.
Yes. Yihetai manufactures custom boat trailer wiring harnesses according to OEM drawings and application requirements. Customization options include connector types, cable lengths, wire gauges, branching layouts, protective sleeving, and sealed connector systems. Moisture resistance, corrosion protection, and waterproof performance depend on the selected materials, approved design, and applicable testing.
Send us your wiring diagram, connector specifications, approved pinout, sample, or estimated order quantity. Yihetai can review your requirements and provide a customized manufacturing quotation.
