Custom EMI Shielded Cable Assembly Manufacturer

OEM custom EMI shielded cable assemblies with foil shield, braided shield, drain wire, shielded twisted pair, metal shell, 360° shield termination, grounding design, custom connector and electrical testing for signal stability and noise-sensitive equipment.

Yihetai manufactures custom EMI shielded cable assemblies for industrial automation, medical devices, automotive electronics, test instruments, communication equipment, machine vision systems, control panels, robotics and OEM electronic products.

Why EMI Shielding So Important?

In many industrial and electronic applications, cables are installed close to motors, servo drives, inverters, switching power supplies, high-current power lines or communication equipment. These components can generate electromagnetic noise that may interfere with nearby signal or data cables.

Without proper shielding design, electrical noise may affect cable performance and cause unstable signal transmission, data errors, communication failures, sensor instability or reduced equipment reliability.

For EMI-sensitive equipment, the shielding structure should be considered during the cable design stage, not after the cable is already assembled. Shielding options such as foil shield, braided shield, drain wire, shielded twisted pair, metal shell connection or ferrite core can help improve signal stability depending on the application environment.

Common EMI Noise Sources	Possible Cable Performance Risks
Motors	Signal fluctuation or sensor instability
Servo Drives	Communication interruption or control signal errors
Inverters	EMI interference and unstable data transmission
Switching Power Supplies	Noise coupling into signal or data lines
High-Current Cables	Induced interference in nearby low-voltage cables
Industrial Ethernet Equipment	Data errors or reduced communication reliability
Relays and Solenoids	Transient noise and signal disturbance
RF or Wireless Equipment	Interference with sensitive signal cables

Proper EMI shielding helps protect signal quality, improve equipment reliability and reduce the risk of field failures caused by electrical noise.

EMI Shielding Structure Selection Guide

Different EMI environments require different shielding structures. Yihetai can help review your signal type, cable length, connector type and equipment environment to select a suitable shielded cable assembly structure.

Shielding Structure	Best Used For
Foil Shield	General EMI protection and lightweight signal cable
Braided Shield	Better mechanical strength and EMI protection
Spiral Shield	Flexible shielded cable applications
Drain Wire	Grounding and shield termination
Shielded Twisted Pair	Differential signal or data transmission
Dual Shield	Applications requiring stronger EMI control
Metal Shell / Hood	Connector-side shielding and mechanical protection
Ferrite Core	Additional EMI suppression when required

Not every shielded cable uses the same structure. The right shielding design depends on noise source, frequency range, flexibility requirement, connector structure and equipment grounding method.

Shielding Termination & Grounding Design

For EMI shielded cable assemblies, shielding performance depends not only on the cable shield, but also on how the shield is terminated and grounded.

Before production, please confirm whether the shield should be connected to one end, both ends, chassis ground, drain wire or metal shell.

Grounding Design	Design Purpose
Single-End Grounding	Used in selected signal applications to reduce ground loop risk
Double-End Grounding	Used when both equipment sides require shield connection
Drain Wire Termination	Helps connect foil shield to ground
360° Shield Termination	Improves shielding continuity around connector area
Metal Hood Connection	Supports connector-side shielding
Shield to Chassis Ground	Used for equipment enclosure grounding
Shield Floating	Used only when customer design requires no shield grounding

A shielded cable may still perform poorly if the shield is not properly terminated. This is why grounding design should be confirmed together with cable structure and connector type.

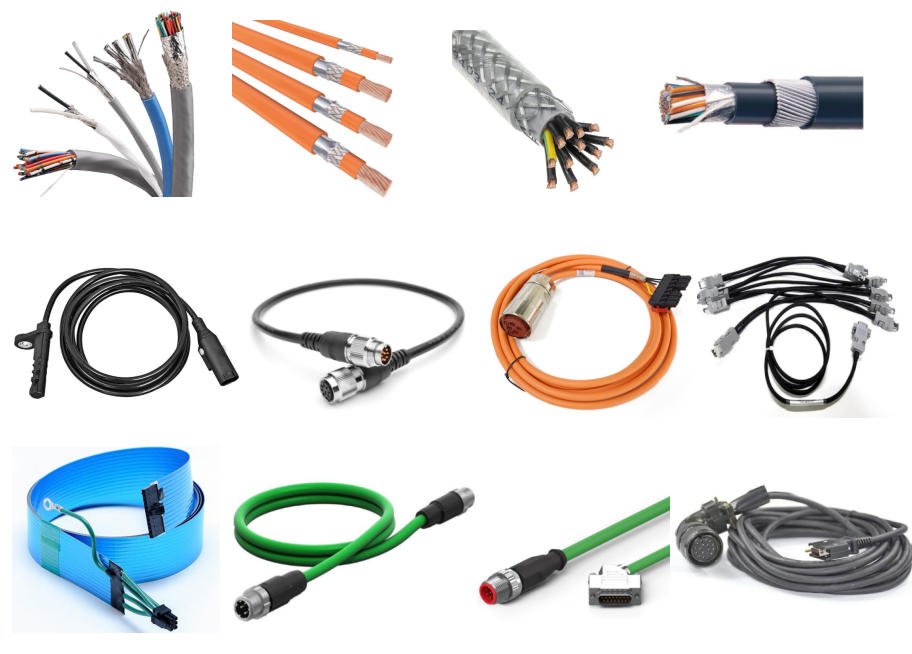

EMI Shielded Cable Assembly Types We Manufacture

Yihetai can manufacture different EMI shielded cable assemblies according to your signal requirement, connector type and application environment.

Custom Shielded Signal Cable Assembly
Custom Shielded Data Cable Assembly
Industrial Shielded Sensor Cable Assembly
Shielded Control Cable Assembly
Custom Shielded USB Cable Assembly
Shielded D-Sub Cable Assembly

Shielded M12 Cable Assembly
Shielded RJ45 Ethernet Cable Assembly
Medical EMI Shielded Cable Assembly
Automotive EMI Shielded Wire Harness
Shielded Audio and Video Cable Assembly
Custom EMI Shielded Wire Harness Assembly

Cable Structure, Connector & Protection Options

Custom EMI shielded cable assemblies can be designed with different cable structures, connector combinations and protection options.

Custom Item	Available Options
Cable Structure	Shielded twisted pair, shielded multi-core cable, coaxial cable, hybrid harness
Shielding Type	Foil shield, braid shield, spiral shield, dual shield, drain wire
Connector Type	USB, D-sub, M8/M12, RJ45, circular connector, JST, Molex, terminal or custom
Connector Shell	Plastic shell, metal shell, metal hood or shield-compatible housing
Cable Length	Fully customized
Jacket Material	PVC, PUR, TPE, TPU, silicone or customer-specified material
Protection	Heat shrink, sleeve, braided sleeve, ferrite core, overmolding or label
End Structure	Connector to connector, connector to open end, terminal, board connector or branch harness

For industrial sensors, actuators and automation equipment, shielded cable structures can also be combined with custom M8/M12 waterproof cable assemblies to support both EMI protection and envir

How To Select The Right Shielding Solution

Selecting the right shielding solution depends on the signal type, EMI environment, cable length, connector structure and grounding method. A sensor signal cable, encoder cable, industrial Ethernet cable and servo motor cable may require different shielding designs.

For example, foil shield is commonly used for general signal protection, while braided shield provides better mechanical strength and EMI protection. In applications with higher interference or data stability requirements, foil plus braid shielding may be used to improve overall shielding performance.

Yihetai can help customers review the application environment, cable structure, connector type and grounding requirement before recommending a suitable EMI shielded cable assembly solution.

Key Features of Our Custom EMI Shielded Cable Assemblies

Foil shield, braid shield, spiral shield, drain wire and dual-shield options
Shielded twisted pair, shielded multi-core cable and coaxial cable structures
Single-end, double-end, drain wire, chassis ground and metal shell grounding options
360° shield termination and metal hood connection available
USB, D-sub, M8/M12, RJ45, circular, terminal and custom connector options
Custom cable length, wire gauge, jacket material and cable structure
Ferrite core, overmolding, sleeve, label and protection options
Suitable for industrial, medical, automotive, communication and OEM equipment
100% electrical testing before shipment to ensure stable continuity and batch consistency

Typical applications of custom EMI shielded cable assemblies

Custom EMI shielded cable assemblies are widely used in equipment where signal stability and noise reduction are required.

Industrial Automation
Shielded cables for sensors, control systems, PLCs, inverters and machine equipment.

Medical Devices
Custom shielded cable assemblies for diagnostic equipment, patient monitoring devices and medical electronics.

Automotive Electronics
Shielded cable harnesses for automotive signal transmission, camera systems and electronic control modules.

Test & Measurement Equipment
Shielded signal and data cables for laboratory instruments, analyzers and testing devices.

Robotics Equipment
Flexible shielded cables for robotic systems, moving devices and automation equipment.

Communication Equipment
Shielded cable assemblies for communication modules, gateways and electronic data transmission.

Control Panels
Shielded control cables for panel wiring, terminal connection and signal routing.

Machine Vision Systems
Shielded data and signal cables for vision systems, cameras and imaging equipment.

Custom EMI shielded cable assemblies help protect sensitive signals from electromagnetic interference in demanding electronic and industrial environments. For complete machine wiring, Yihetai also provides custom industrial wire harness cable assembly solutions. For data transmission, display signals, and field device connections, we can also customize custom RJ45 Ethernet cable assembly, custom LVDS cable assembly, and custom M8 M12 waterproof cable assembly solutions.

Manufacturing Capability

For EMI shielded cable assemblies, our production team can handle different shield structures, including foil shield termination, braided shield processing, drain wire connection, heat shrink protection, connector assembly and overmolded strain relief. We support prototype development, small-batch production and mass production for OEM wire harness and custom cable assembly projects.

From material selection to final assembly and testing, all production processes are carried out under strict quality control to ensure consistent product performance and delivery reliability. Typical lead time for prototypes is 5-7 days, and mass production can usually be arranged within 3-4 weeks depending on material availability, tooling requirement and order quantity.

Our EMI Shielded Cable Assembly Quality Control

For shielded cable assemblies, correct shield structure, proper grounding treatment and final electrical inspection are important for reliable performance.

Yihetai controls shielded cable quality through material verification, connector matching, cable preparation, shield termination inspection, continuity testing and final visual inspection.

EMI, shielding, insulation, Hi-Pot, signal-related or functional tests can be arranged according to customer drawings, connector specifications and agreed inspection standards.

Why Choose Yihetai

Yihetai has 25+ years of experience serving customers in automotive, industrial, renewable energy, medical, communication, and consumer electronics markets

Yihetai supports wire selection, shielding design, connector matching, terminal selection, grounding structure, and prototype evaluation for custom cable assembly projects

Yihetai manufactures foil-shielded, braided-shielded, spiral-shielded, and foil-plus-braid shielded cable assemblies to meet different EMI protection requirements

We provides flexible EMI shielding solutions, including foil-shielded, braided-shielded, spiral-shielded, and foil-plus-braid shielded cable assemblies

Each custom EMI shielded cable assembly is 100% tested before shipment to ensure stable electrical connection performance and reliable quality traceability

As a professional wiring harness factory and cable assembly supplier, Yihetai helps customers reduce sourcing cost while maintaining quality and delivery reliability

Frequently Asked Questions

Can Yihetai customize EMI Shielded Cable Assembly according to my drawing?

Yes. Yihetai can manufacture EMI Shielded Cable Assembly products according to your drawing, sample, BOM list or application requirements. Our engineering team can review your wire gauge, connector type, shielding method, grounding method, cable length and testing requirements, then provide a practical manufacturing solution and quotation for your project.

What shielding types can you manufacture?

We can manufacture cable assemblies with aluminum foil shielding, copper foil shielding, tinned copper braided shielding, spiral shielding, drain wire and combined foil-plus-braid shielding. Foil shielding is often used for higher coverage, while braided shielding provides better mechanical durability. Combination shielding can be selected when the application needs broader EMI protection and stronger structure.

What information should I provide for a quotation?

For a fast and accurate quotation, please provide the cable drawing, wire gauge, cable length, connector model, pin assignment, shielding type, grounding requirement, jacket material, rated voltage, rated current, operating temperature, quantity and testing standard. If you do not have a complete drawing, you can send a sample or application description.

Can you help choose the right shielding structure?

Yes. Our engineering team can help evaluate your application environment and recommend a suitable shielding structure. For example, foil shielding may be used for compact signal cables, braided shielding may be better for flexible or mechanically demanding applications, and foil-plus-braid shielding may be suitable for equipment exposed to stronger EMI sources.

Do you support prototypes and mass production?

Yes. Yihetai supports prototypes, small-batch trial production and mass production. For new projects, we can first make samples for installation testing, electrical testing and structure confirmation. After customer approval, we can move to stable batch production with controlled process documents, inspection standards and traceability records..

Can you add ferrite core or metal shell structures?

Yes. Ferrite core, metal shell, metal hood, 360° shield termination and additional protection structures can be customized according to project requirements.

Need a Custom EMI Shielded Cable Assembly?

Yihetai can help you develop custom shielded cable assemblies for industrial automation, medical devices, automotive electronics, test equipment, communication devices, control panels, robotics and OEM electronic products.
