Custom Ribbon Cable Assembly Manufacturer

OEM custom ribbon cable assemblies with IDC connectors, custom pitch, conductor count, cable length, pinout, red edge marker orientation and 100% electrical testing for PCB, industrial control and electronic equipment.

Yihetai manufactures custom ribbon cable assemblies for PCB interconnection, industrial control systems, PLC panels, HMI devices, test fixtures, embedded electronics, medical equipment, communication devices and OEM electronic products. We can customize cable pitch, conductor count, wire gauge, cable length, IDC connector type, wiring sequence, color coding, red edge marker direction, labeling and packaging according to your drawing, sample or application requirement.

Whether you need an IDC ribbon cable assembly, flat ribbon cable with dual IDC sockets, ribbon cable to D-sub connector, ribbon cable breakout assembly, rainbow ribbon cable, shielded ribbon cable or a custom flat cable assembly, Yihetai can support prototype development and mass production.

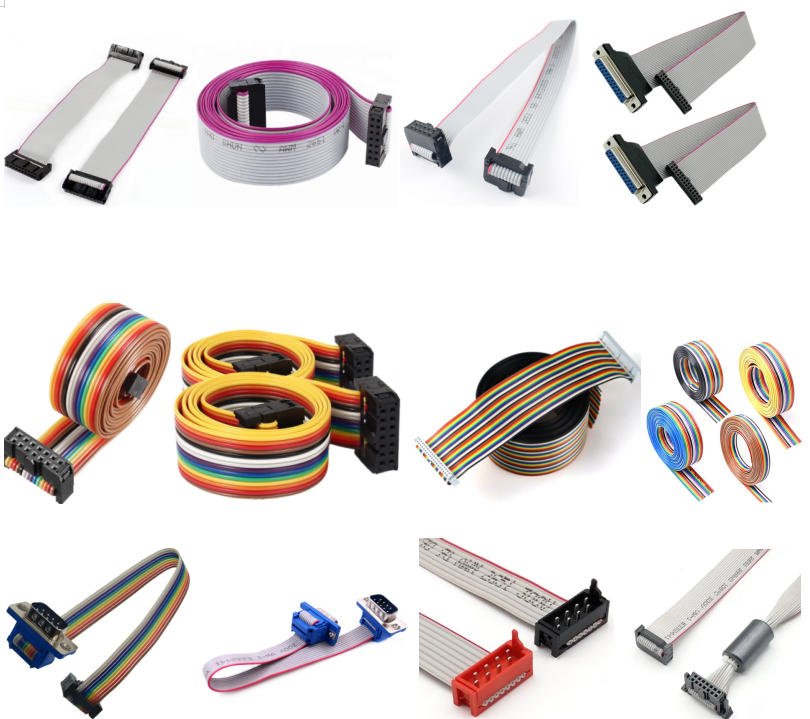

Custom Ribbon Cable Assemblies We Manufacture

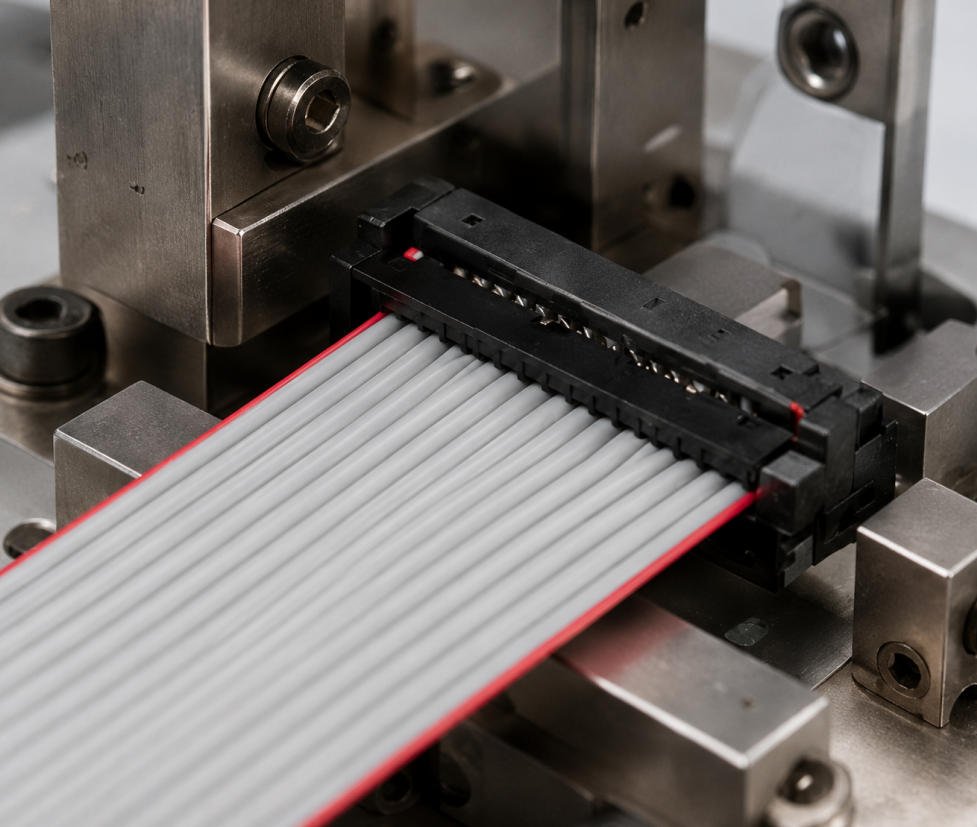

1.IDC Ribbon Cable Assembly
IDC ribbon cable assemblies are commonly used for PCB connections, control boards, display modules, industrial controllers and embedded electronic devices. Yihetai can manufacture IDC flat ribbon cables with different pitch options, conductor counts, connector orientations, keying methods and cable lengths.

Typical configurations include:

IDC socket to IDC socket ribbon cable
IDC socket to box header mating cable
IDC ribbon cable with strain relief
IDC ribbon cable with keyed or polarized connectors
2.54mm IDC ribbon cable assembly
1.27mm IDC ribbon cable assembly
Custom pinout IDC ribbon cable

2. Flat Ribbon Cable Assembly
Flat ribbon cable assemblies are suitable for applications that require neat routing, consistent conductor spacing and compact internal wiring. Yihetai can customize conductor count, cable length, color marking, connector type and end termination according to your equipment layout.

3.Rainbow Ribbon Cable Assembly
Rainbow ribbon cables use color-coded conductors to make pin identification easier during production, installation and maintenance. They are useful in electronic devices, test fixtures, prototype systems, control panels and low-voltage signal connections.

4.Ribbon Cable with D-Sub Connector
Yihetai manufactures ribbon cable assemblies terminated with D-sub connectors for data transmission, signal connection, industrial equipment, control systems and legacy interface applications. Options include DB9, DB15, DB25 and custom D-sub configurations depending on your design.

5.Ribbon-to-Discrete Wire Breakout Assembly
For applications where a flat ribbon cable needs to connect to separate terminals, housings, switches, sensors or PCB points, we can produce ribbon-to-discrete-wire breakout assemblies. These hybrid cable assemblies can combine ribbon cable, single wires, crimp terminals, housings, heat shrink tubes and labels.

6.Ribbon Cable with Custom Pinout
Special wiring sequences are common in OEM products. Yihetai can manufacture straight-through, reverse, crossed, split, transition or custom-mapped ribbon cable assemblies based on your circuit and connector requirements.

7.Shielded or Jacketed Ribbon Cable Assembly
For applications with higher EMI requirements or mechanical protection needs, Yihetai can support shielded, screened or jacketed ribbon cable structures depending on your technical specification.

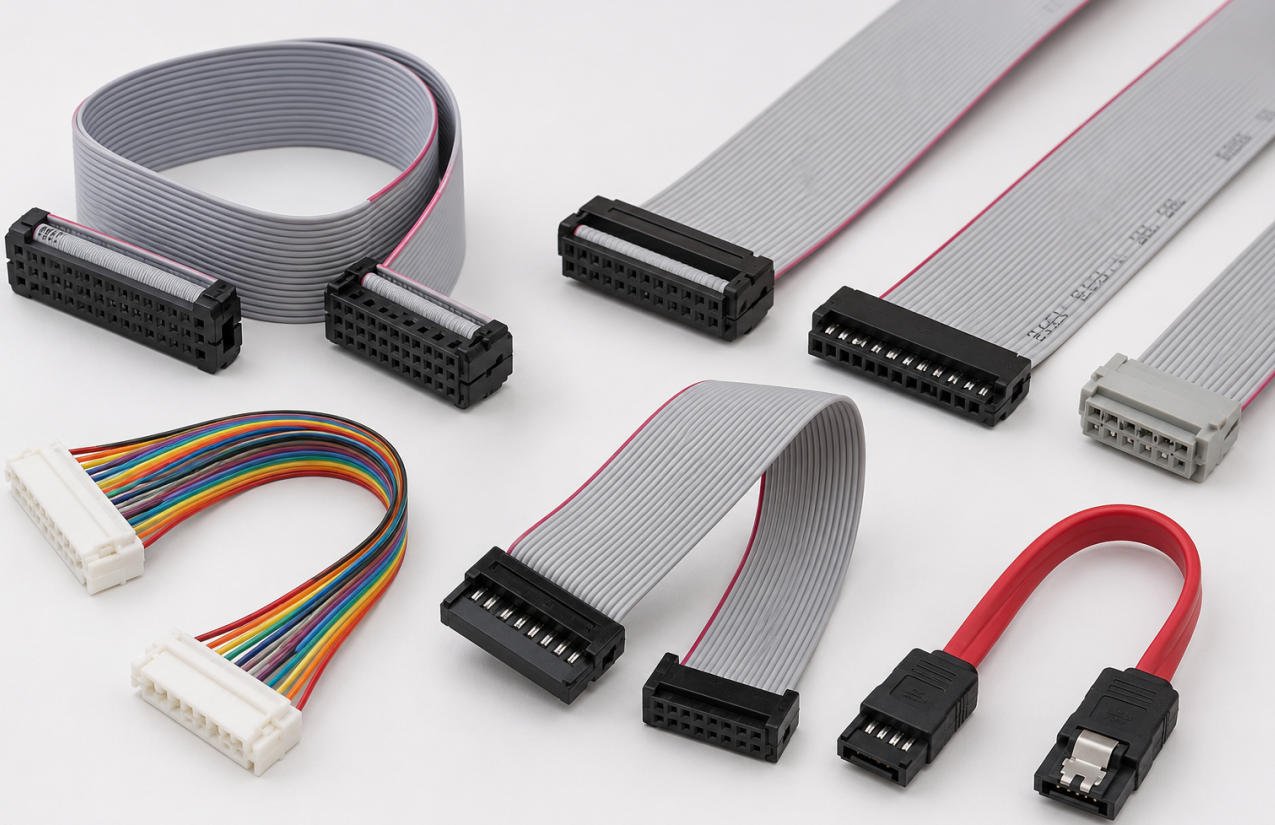

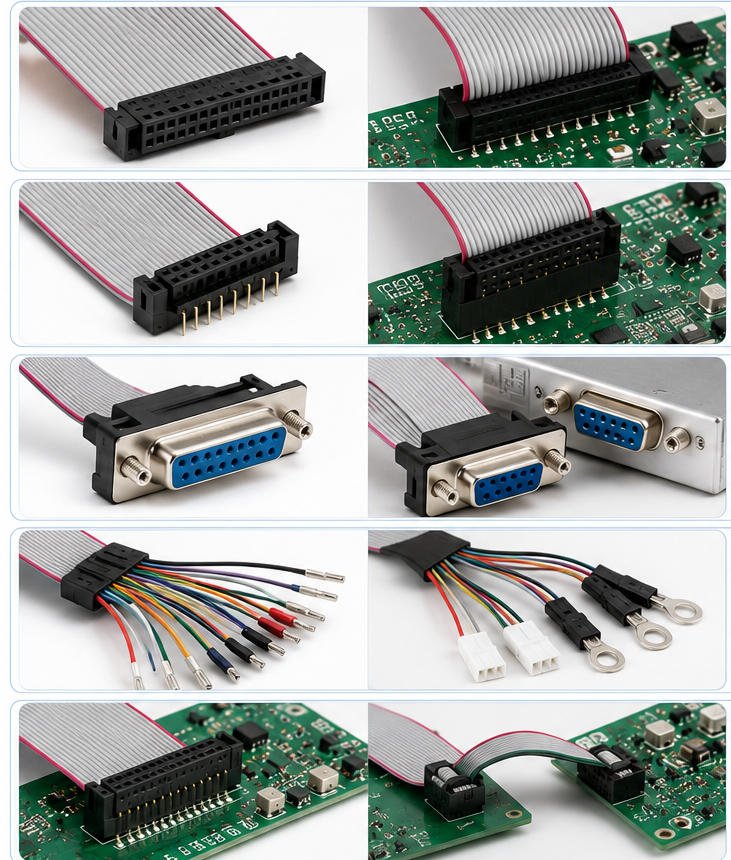

IDC Connector & Termination Options

IDC Socket Ribbon Cable

IDC socket ribbon cable assemblies are widely used for PCB board connection, control systems and electronic modules. They provide fast assembly and stable multi-pin signal connection.

IDC Box Header Cable

Ribbon cables can be designed to mate with box headers, shrouded headers or ejector headers according to your PCB connector layout.

Ribbon Cable to D-sub Connector

Ribbon cable to D-sub cable assemblies are suitable for industrial control, test equipment, legacy interface devices and communication systems.

Ribbon Cable Breakout Assembly

A ribbon cable breakout assembly separates the flat ribbon cable into individual wires, which can be terminated with crimp terminals, housings, open ends, tinned wires or other connectors.

Ribbon Cable to Board Connector

Custom board-to-board ribbon cable assemblies are used for compact internal connection between PCB boards, display modules, control boards and embedded systems.

Pinout & Wiring Options

Wiring Type	Description
1-to-1 Wiring	Pin 1 connects to Pin 1, Pin 2 connects to Pin 2, suitable for standard board-to-board connection
Reverse Wiring	Pin sequence is reversed according to connector orientation or board layout
Crossed Wiring	Selected conductors are crossed according to signal or control requirements
Split Wiring	Ribbon cable is separated into multiple branches or connector groups
Transition Wiring	Ribbon cable changes from one connector type to another connector type
Custom Pin Assignment	Fully customized conductor mapping based on customer drawing
Red Edge Marker Orientation	Pin 1 direction can be defined according to assembly and PCB requirement

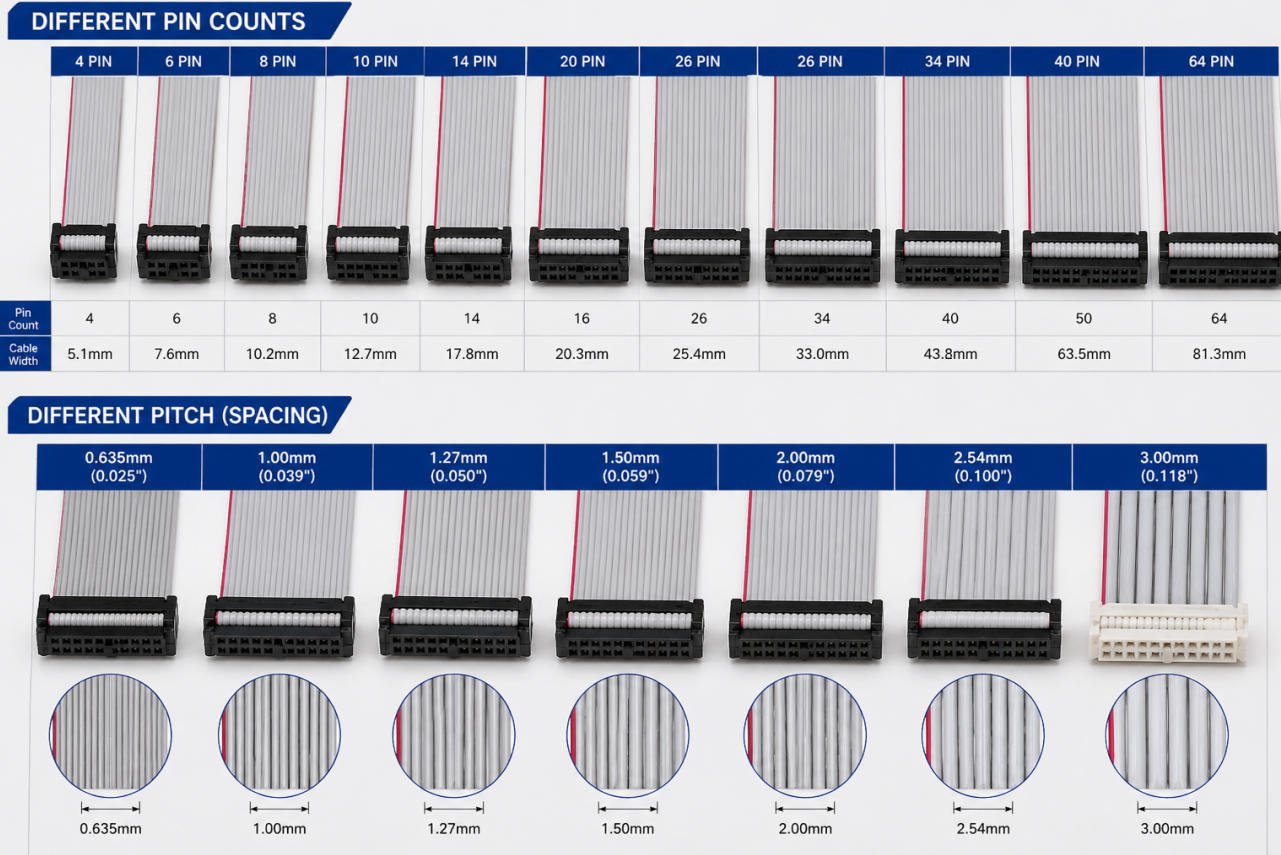

IDC Ribbon Cable vs D-SUB Flat Cable vs Micro Match Cable vs Round Cable

Cable Type	Main Features	Best For	Common Applications
IDC Ribbon Cable	Flat structure, multi-pin connection, easy assembly	Parallel signal transmission	PCB board, control board, display module, computer equipment
D-SUB Flat Cable	Stable interface, suitable for data and control signals	External or internal equipment connection	Industrial control, communication equipment, computer peripherals
Micro Match Cable	Compact size, reliable PCB connection	Small devices and tight spaces	PCB modules, sensors, compact electronics
Round Ribbon Cable	More flexible routing, cleaner internal wiring	Equipment with limited cable routing space	Control cabinet, machinery, electronic devices

Ribbon Cable vs Round Cable vs Wire Harness

Product Type	Structure	Advantages	Typical Use
Ribbon Cable Assembly	Flat parallel wires with multi-pin connectors	Space-saving, organized wiring, ideal for multi-pin signals	PCB, LCD display, computer, printer, control board
Round Cable Assembly	Multiple wires bundled in a round structure	Flexible routing, better for movement and bending	Industrial equipment, control systems, machinery
Wire Harness	Multiple wires, branches, connectors, terminals, sleeves, labels	Suitable for complex electrical systems	Automotive, appliances, medical devices, industrial equipment

Custom ribbon cable assemblies with different conductor counts

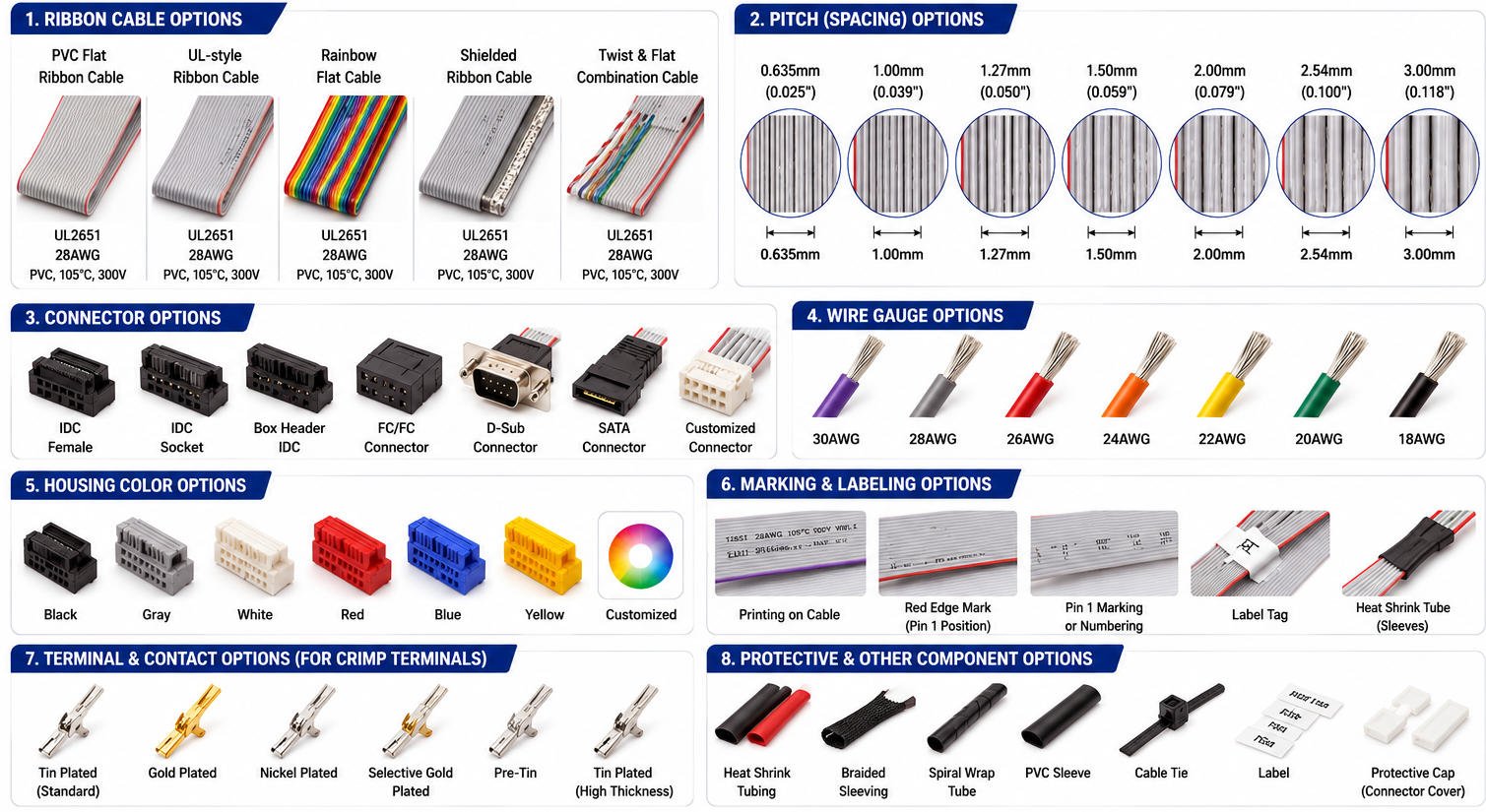

Materials and Component Options

Yihetai can source and assemble ribbon cable materials according to project requirements. Common options include PVC flat ribbon cable, UL-style ribbon cable, rainbow flat cable, shielded ribbon cable, IDC connectors, D-sub connectors, crimp terminals, heat shrink tubing, sleeves, labels and protective components.

If you have a specified connector brand or part number, please send it to us. If you need an equivalent connector option, our team can help check suitable alternatives based on pitch, pin count, mating connector, current rating, locking design, cable exit direction and cost requirement.

Ribbon Cable Assemblies for PCB and Internal Equipment Wiring

Custom ribbon cable assemblies are widely used when engineers need compact, organized and repeatable internal connections. Compared with loose wires, a flat ribbon cable helps reduce wiring errors, improve assembly efficiency and keep the internal layout clean.

Yihetai can manufacture ribbon cable assemblies for:

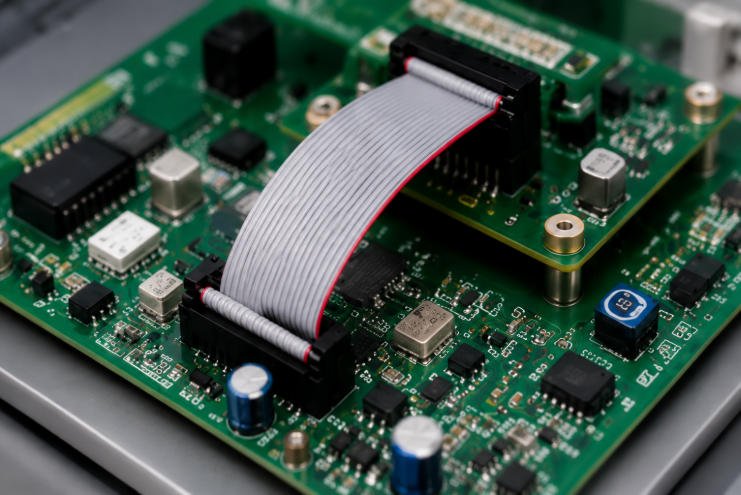

Board-to-board connections
PCB-to-front-panel wiring
PCB-to-display module connections
Control board and I/O module wiring
Embedded system interconnection

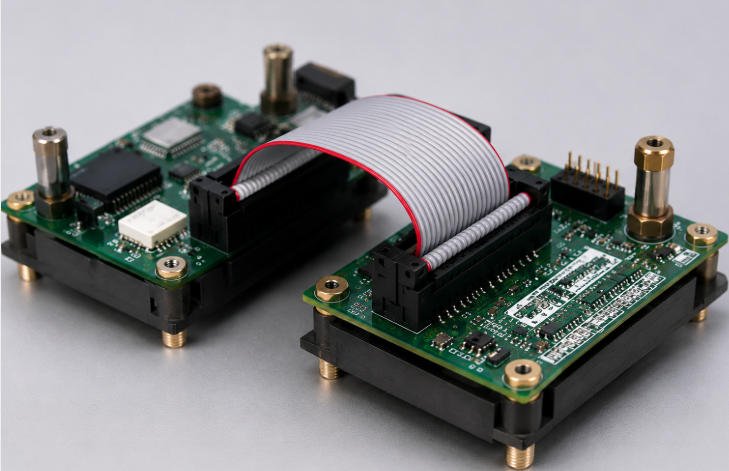

Test fixtures and programming fixtures

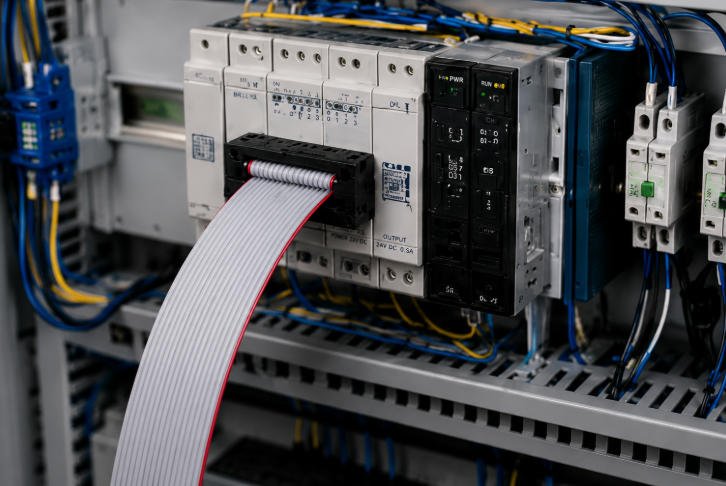

Industrial controller internal wiring

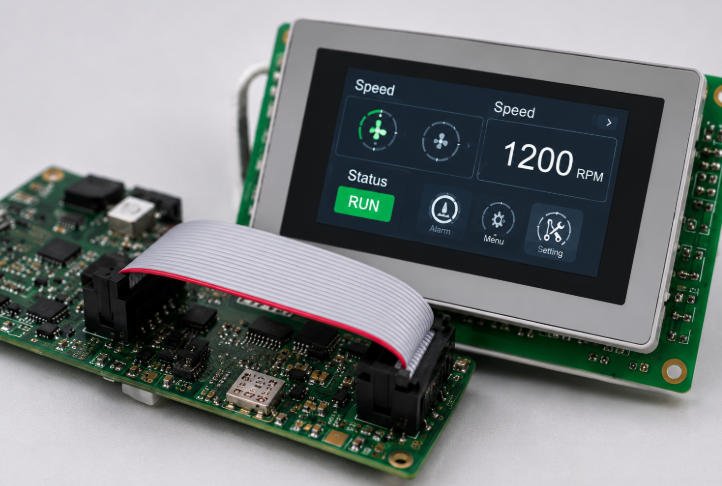

HMI and instrumentation wiring
Printer and scanner internal connections

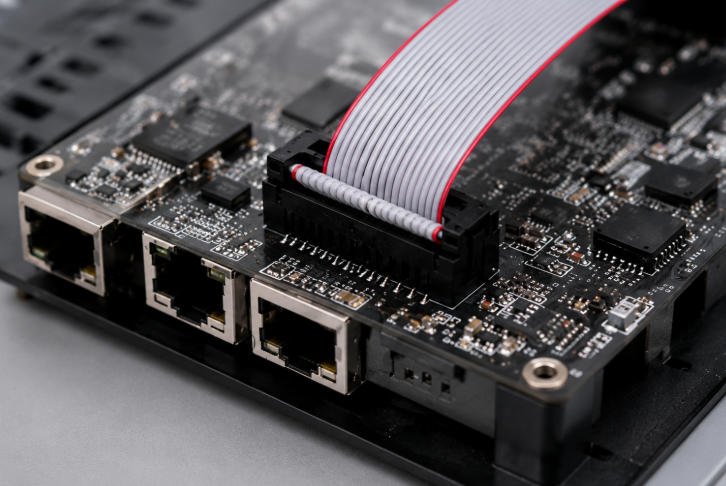

Communication equipment interfaces

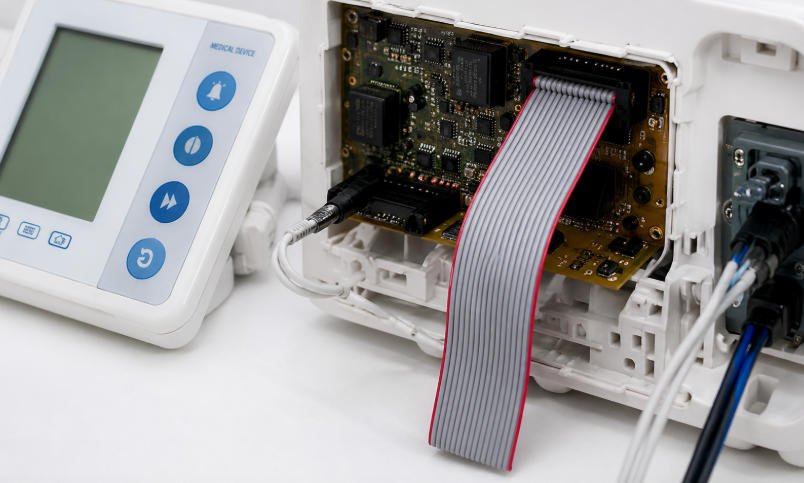

Medical electronics and monitoring devices
Custom OEM equipment requiring compact wiring

Key Features of our Ribbon Cable Assembly

Custom cable length, pitch and conductor count for compact PCB and equipment interconnection projects
Available in gray, rainbow, twist-and-flat, screened and other ribbon cable structures
Supports IDC socket, box header, D-sub and other connector termination options
Organized flat cable layout helps improve assembly efficiency and internal routing management
Suitable for both signal transmission and compact internal device wiring applications
High-quality cutting, pressing, assembly and inspection process for stable connection performance
Flexible support for prototype development, low-volume orders and mass production projects

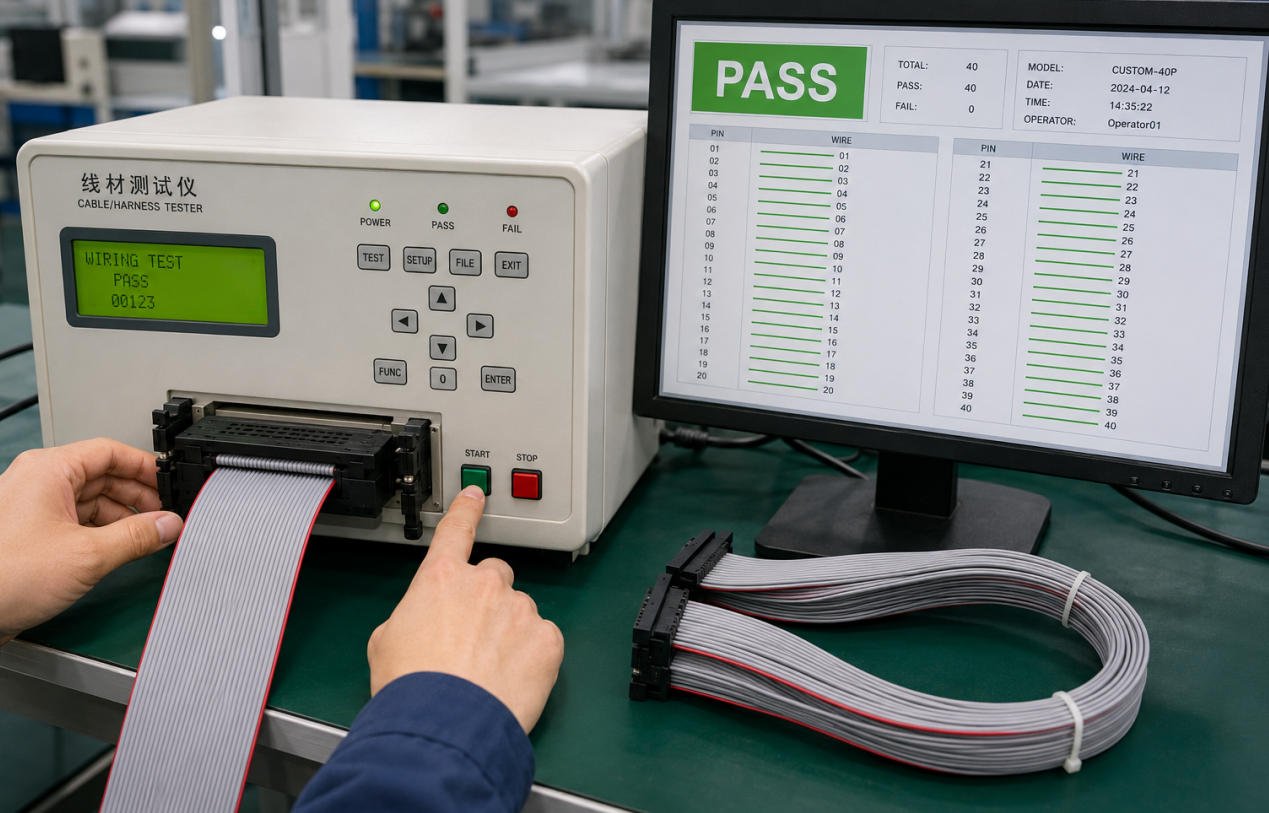

100% electrical testing before shipment for continuity, pin sequence and connection reliability

Applications of Our Ribbon Cable Assemblies

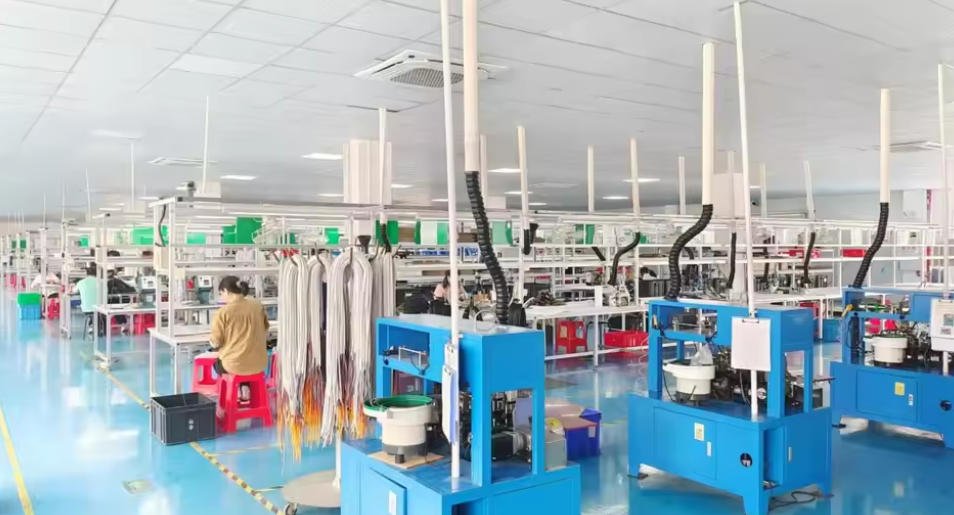

Manufacturing Capability

Yihetai supports custom ribbon cable assembly manufacturing from material preparation to final inspection. Our production process can include cable cutting, conductor separation, IDC termination, connector assembly, crimping, soldering, labeling, bundling and electrical testing.

We can manufacture simple IDC ribbon cable assemblies, ribbon cable breakout assemblies, ribbon cable to D-sub assemblies, rainbow ribbon cables, shielded ribbon cables and customized hybrid flat cable assemblies according to customer requirements.

For OEM projects, our team can support connector matching, pitch confirmation, wiring sequence review, sample development, production feasibility review and batch quality control.

Quality Assurance and Testing

Every custom ribbon cable assembly is controlled through a complete quality process covering material inspection, cable preparation, connector termination, assembly, testing, appearance inspection and final packaging.

Quality checks can include:

Cable pitch and conductor count verification
Cable cutting length inspection
IDC termination quality inspection
Connector orientation and locking position check
Pin 1 and red edge marker direction verification
Pinout and wiring sequence test
Continuity test
Short circuit and open circuit test
Visual inspection for appearance and workmanship
Label and packaging verification

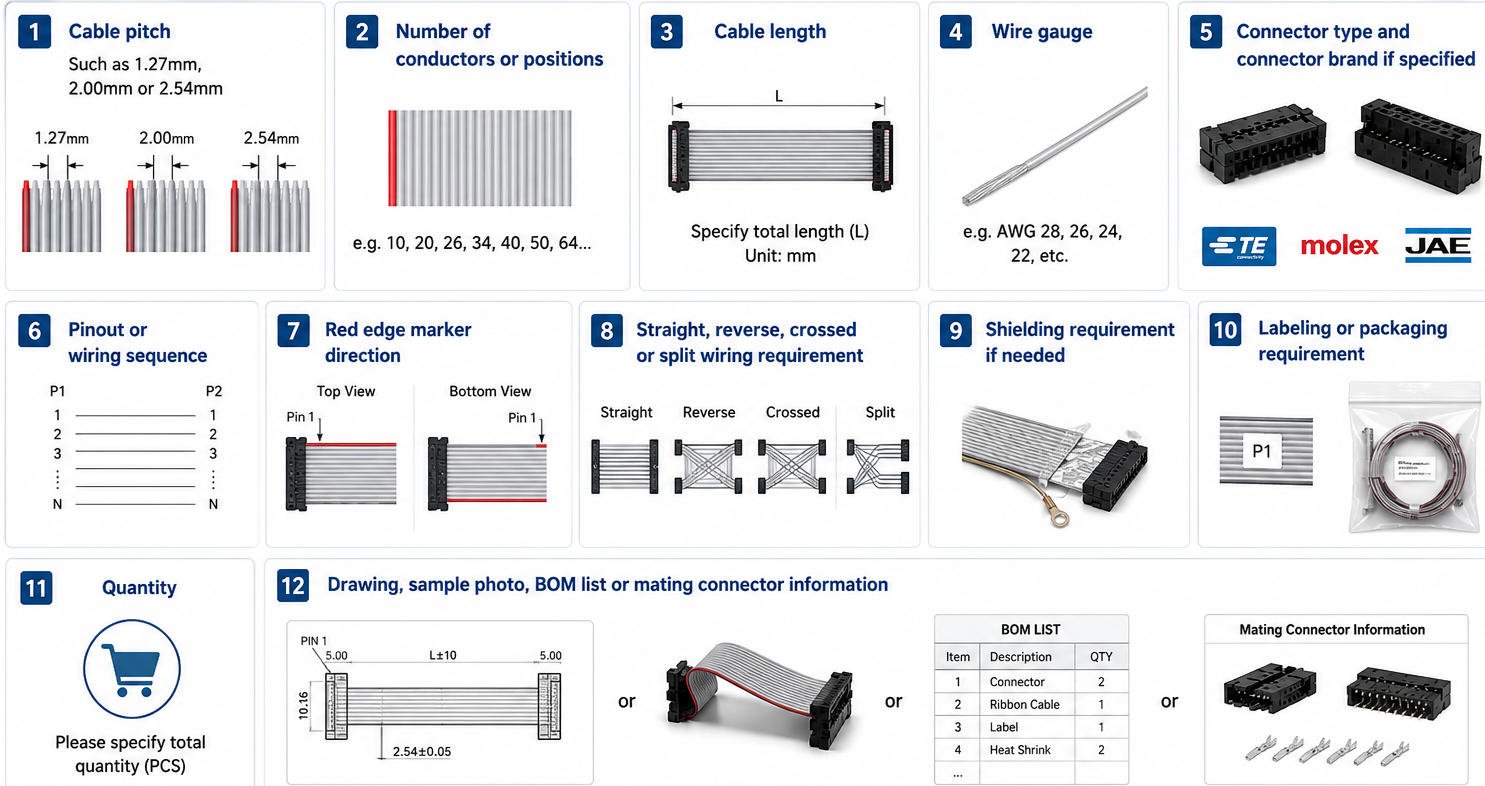

How to Specify Your Custom Ribbon Cable Assembly

To help us provide an accurate quotation, please send the following information:

Not sure which ribbon cable or IDC connector you need? Send us your PCB connector photo, sample cable or equipment interface information. Our team can help review the connector type, pitch, conductor count and suitable cable assembly structure.

Why Choose Yihetai

25+ years of experience in custom wire harness and custom cable assembly manufacturing.

Support for Ribbon Cable Assembly, OEM wire harness and other custom wiring solution projects.

In-house processing, assembly and testing for better quality consistency and production control.

Strong engineering team for custom design and connector matching.

Certified management basis with ISO 9001:2015, UL and IATF 16949.

Responsive factory support for prototype development, technical review and stable volume supply.

Frequently Asked Questions

Can you manufacture Ribbon Cable Assembly based on our drawing or sample?

Yes. Yihetai supports custom manufacturing based on drawings, samples, BOM lists or application requirements, which is suitable for OEM equipment development and replacement projects.

What connector types can be used on a custom ribbon cable assembly?

Common options include IDC sockets, keyed/polarized connectors, shrouded header mating systems, ejector-style systems and some hybrid terminations depending on the application.

Can you customize pitch, pin count and cable length?

Yes. Ribbon cable assemblies are commonly available in different pitch systems and contact counts, and we can customize length, wiring sequence and end structure according to your project.

Can you make reverse or special pinout ribbon cable assemblies?

Yes. Depending on the connector system and wiring requirement, special pinout, reverse wiring, transition wiring or customized internal mapping can be reviewed during engineering evaluation.

Are your ribbon cable assemblies tested before shipment?

Yes. Yihetai’s published process and testing information show electrical testing and final inspection as part of standard production control. Test items can be confirmed according to your project requirement.

Need a custom ribbon cable assembly for your application?

Yihetai can help you develop custom ribbon cable assemblies for PCB connection, industrial control systems, PLC panels, HMI devices, test fixtures, medical electronics, communication equipment and OEM electronic products.
