Custom Waterproof Sensor Cable Assembly Manufacturer

Yihetai manufactures custom waterproof sensor cable assemblies for industrial automation, PLC systems, I/O modules, robotics, machine vision, outdoor monitoring equipment and OEM industrial devices.

Available options include M5, M8, M12 and circular waterproof connectors, open-end wires, panel-mount connectors, custom pinout, shielding, PUR/PVC jacket, overmolding and electrical testing.

Send us your drawing, sample or cable specification for a custom quote.

What Is a Waterproof Sensor Cable Assembly?

A waterproof sensor cable assembly is a customized cable solution used to connect sensors with PLCs, I/O modules, control cabinets, controllers, monitoring devices or OEM equipment. It is designed to transmit sensor power, signal or data in environments where moisture, dust, vibration, oil, washdown or outdoor exposure may exist.

Waterproof sensor cable assemblies are commonly used with proximity sensors, photoelectric sensors, pressure sensors, temperature sensors, level sensors, encoder sensors, magnetic sensors and outdoor monitoring sensors.

Yihetai manufactures waterproof sensor cable assemblies according to customer drawings, samples, sensor connector datasheets, pinout tables or real installation requirements.

Sensor Cable Connection Design

Different sensors require different cable structures. Before production, it is important to confirm the sensor type, connector interface, signal output, pinout and installation environment.

Sensor Connection Type	Design Focus
Proximity Sensor Cable	M8/M12 connector, pinout and compact routing
Photoelectric Sensor Cable	Signal stability, cable length and waterproof connector
Pressure Sensor Cable	Reliable signal transmission and sealing structure
Temperature Sensor Cable	Cable material and application temperature
Flow Sensor Cable	Waterproof sealing and signal protection
Level Sensor Cable	Moisture resistance and connector matching
I/O Module Sensor Cable	PLC wiring, pinout and labeling
Sensor Extension Cable	Cable length, voltage drop and signal stability
Machine Vision Sensor Cable	Shielding, data stability and routing flexibility
Outdoor Monitoring Sensor Cable	Waterproof sealing, UV resistance and environmental protection

For machine vision and industrial Ethernet devices, Yihetai can also manufacture custom IP67 M12 to RJ45 shielded Ethernet cable assemblies for waterproof data transmission.

Sensor Pinout & Wiring Definition

For waterproof sensor cable assemblies, pinout accuracy is critical. A wrong signal, power or ground connection may cause sensor instability, wrong output, communication failure or device damage.

Yihetai can manufacture sensor cables according to customer pinout drawings, sensor datasheets, wiring diagrams or existing samples.

Design Item	Why It Matters
Pin Assignment	Defines sensor signal, power and ground
Wire Color Coding	Helps installation and maintenance
NPN / PNP Signal	Should match sensor and controller requirement
Analog / Digital Signal	Different signals may need different cable structures
Shield Connection	Helps reduce signal interference
Open-End Wiring	Used for PLC, I/O module or terminal block connection
Labeling	Helps identify sensor channel and wiring position
Pinout Test	Prevents wiring mistakes before shipment

For sensors installed near motors, drives or electrical noise sources, Yihetai can design custom EMI shielded cable assemblies with foil shield, braid shield, drain wire and proper grounding options.

Waterproof Sealing Design for Sensor Cables

Waterproof performance is important when sensor cables are installed near machines, outdoor equipment, washdown areas, dust, oil, moisture or vibration environments.

Yihetai can customize waterproof sensor cable assemblies with different sealing structures according to your application.

Sealing Design	Purpose
Overmolded Connector	Improves waterproof sealing and strain relief
O-Ring / Sealing Ring	Supports waterproof mating connection
Threaded Coupling	Helps prevent loose connection in vibration environments
Adhesive Heat Shrink	Seals open-end or joint areas when required
Potting / Glue Filling	Used for selected waterproof structures
PUR / PVC Jacket	Selected according to environment and flexibility
Panel-Mount Sealing	Used for equipment enclosure or control box interface
Molded Strain Relief	Reduces bending stress near the sensor connector

Waterproof performance depends not only on the connector IP rating, but also on the mating connector, cable jacket, overmolding quality, sealing structure and installation method. For higher sealing requirements, Yihetai can also provide IP67/IP68 waterproof cable assemblies with overmolded connectors, O-rings, durable jackets and customized strain relief.

Custom M8 and M12 Waterproof Sensor Cable Options

Yihetai also manufactures custom M8/M12 waterproof cable assemblies for sensors, actuators, I/O modules and field devices used in harsh industrial environments.

Yihetai can manufacture custom M8 and M12 waterproof sensor cable assemblies with different connector styles, cable lengths, wiring configurations, and waterproof protection levels.

Available connector options include:

Connector Type	Custom Options
M8 connector cable	3-pin, 4-pin, straight, right-angle, male, female
M12 connector cable	3-pin, 4-pin, 5-pin, 8-pin, 12-pin, A-coded, B-coded, D-coded, X-coded
Waterproof circular connector	M5, M8, M12, M16, M23 or custom connector
Panel mount connector	Front mount, rear mount, bulkhead type
Open-end sensor cable	Stripped, tinned, ferrule, terminal, customized end
Splitter sensor cable	Y cable, T cable, multi-branch cable
Overmolded connector cable	PVC, TPU, TPE, PUR or custom molding material

We can also support connector brands or equivalent connector solutions according to your drawing, sample, or BOM.

Sensor Cable to PLC / I/O Module Connection

Many waterproof sensor cables are used to connect field sensors to PLCs, I/O modules, control cabinets or terminal blocks. In these applications, open-end wiring, wire color coding and labels are very important for installation efficiency.

Connection Requirement	Yihetai Support
Sensor to PLC Wiring	Custom open-end cable preparation and wire stripping
Sensor to I/O Module	Pinout confirmation and wire color identification
Control Cabinet Wiring	Cable labels, channel labels and terminal preparation
Sensor Extension	Custom cable length and waterproof connector matching
Multi-Sensor System	Multi-branch sensor harness and channel marking
Field Installation	Right-angle connector, flexible cable and suitable jacket
Maintenance Support	Labels, barcode and wiring identification
OEM Assembly	Approved sample, drawing control and batch consistency

For control panel or PLC wiring, please provide the terminal position, wire color requirement, stripped length and labeling requirement if available.

Key Features of Our Custom Waterproof Sensor Cable Assemblies

M8, M12, circular, panel-mount and custom waterproof connector options
3-pin, 4-pin, 5-pin, 8-pin and custom pin count available
Custom pinout for power, ground, NPN, PNP, analog, digital or custom sensor signals
Sensor cable to open-end, terminal, JST, Molex or custom connector structures
PUR, PVC, TPE, TPU, silicone and custom jacket options
Unshielded, foil shield, braid shield, drain wire and twisted pair options
Overmolded waterproof sealing, O-ring and strain relief design
Custom cable length, wire color, label, barcode and packaging
Suitable for sensors, PLCs, I/O modules, automation equipment and outdoor device
100% tested for continuity, hi-pot, and water ingress before shipment

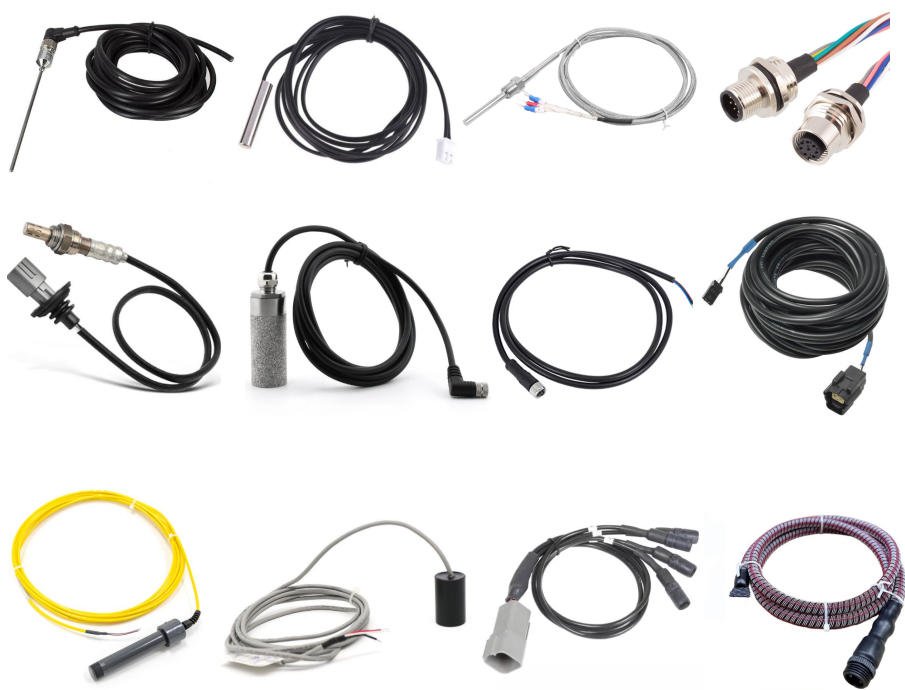

Waterproof Sensor Cable Assembly Types We Manufacture

Yihetai can manufacture different waterproof sensor cable assembly structures according to your sensor interface, control system, installation environment and wiring requirement.

M8 Waterproof Sensor Cable
M12 Waterproof Sensor Cable
Sensor Cable to Open-End
Sensor Extension Cable
Shielded Sensor Cable
Right-Angle Sensor Cable
Waterproof Overmolded Sensor Cable

Where Waterproof Sensor Cable Assemblies Are Used

Waterproof sensor cable assemblies are widely used in industrial and outdoor systems that require stable signal transmission between sensors, actuators, PLCs and control equipment. Yihetai manufactures custom waterproof sensor cables for automation, machinery, robotics, control cabinets and harsh environment applications.

1.Industrial Automation
Waterproof sensor cables are used to connect sensors, actuators, field devices and PLC input/output modules in automation systems. Correct pin assignment, connector mating and cable durability are important for stable equipment operation.
Typical uses:
Sensors / Actuators / PLC input-output / Field devices / Automation systems

2.Proximity Sensors
Proximity sensors may use M8 or M12 sensor cables to detect objects, machine position or moving parts. In these applications, stable signal transmission and secure connector mating help reduce false signals and downtime.
Typical uses:
Inductive sensors / Capacitive sensors / Position detection / Machine monitoring

3.Photoelectric Sensors
Photoelectric sensors are used for object detection, counting, sorting and inspection. Waterproof sensor cable assemblies can help protect the sensor connection in dusty, wet or machine-side environments.
Typical uses:
Object detection / Counting systems / Sorting equipment / Inspection machines

4.Limit Switches and Actuators
Limit switches, solenoid valves and actuators require reliable field wiring for control and feedback signals. Waterproof sensor and actuator cables can be customized with open-end, M8/M12 or custom connector combinations.
Typical uses:
Limit switches / Solenoid valves / Actuators / Machine feedback signals

5.Control Cabinets and PLC Systems
In control cabinets and PLC systems, sensor cables connect field devices to input/output modules, terminal blocks or panel mount connectors. Clear wire color, pin assignment and labeling help simplify installation and maintenance.
Typical uses:
PLC wiring / Control cabinets / Panel mount connectors / Terminal block connection

6.Machinery, Robotics and Harsh Environments
Machines, robots and outdoor equipment may expose sensor cables to vibration, bending, oil, dust, water spray or temperature changes. Flexible cable jacket, strong strain relief and reliable sealing should be considered according to the working environment.
Typical uses:
Robotics / Machine modules / Moving equipment / Outdoor sensors / Harsh environment wiring

Overmolded Waterproof Sensor Cable Manufacturing

For waterproof sensor cable assemblies, overmolding is often used to improve sealing, strain relief and mechanical protection around the connector. Yihetai can provide customized overmolded cable assemblies with different molding materials, connector shapes, cable exit angles and strain relief designs.

Overmolding can help improve:

Waterproof sealing around the connector
Pulling resistance
Bending protection
Connector durability
Installation safety
Appearance consistency
Long-term reliability in wet or dusty environments

How to Choose a Waterproof Sensor Cable Assembly

When choosing a waterproof sensor cable assembly, should be confirm the sensor connector type, pin count, cable length, wiring map, signal type, shielding requirement, cable jacket material, connector direction and application environment.

For proximity sensors and photoelectric sensors, M8 or M12 connector cables are commonly used. For PLC input/output wiring, pin assignment and wire color identification should match the control system. For machines with limited installation space, right-angle connectors may help reduce cable bending stress. For environments with motors, drives or strong electrical noise, shielded sensor cables may be required.

Selection Item	What to Confirm
Sensor Type	Proximity sensor, photoelectric sensor, limit switch, actuator
Connector Size	M8, M12 or custom waterproof connector
Pin Count	3-pin, 4-pin, 5-pin, 8-pin or custom
Connector Gender	Male, female, male-to-female or open-end
Connector Direction	Straight, right-angle, panel mount or custom
Signal Type	PNP, NPN, analog, digital, control or power signal
Cable Length	Customized according to equipment layout
Cable Type	PVC, PUR, shielded or non-shielded cable
Wire Gauge	Selected according to current and signal requirement
Pin Assignment	Standard or custom wiring map
Protection	Overmolding, strain relief, waterproof sealing
Testing	Continuity, pin mapping, open/short test, insulation resistance

Quality Control for Waterproof Sensor Cable Assemblies

A waterproof sensor cable assembly must provide stable sensor signal or actuator control connection during equipment operation. Poor pin mapping, incorrect wire color, weak sealing, unstable soldering, wrong connector gender or insufficient strain relief may cause false triggering, signal loss, water ingress, installation failure or premature cable damage.

Yihetai focuses on the following quality points:

correct sensor connector model
accurate cable length
correct pin count and wiring map
correct male or female connector type
stable soldering or crimping
correct wire color and polarity
proper shielding treatment when required
clean overmolded appearance
strong strain relief
suitable waterproof sealing design
no conductor or shield damage during stripping
reliable electrical continuity
no open circuit or short circuit
appearance and dimensional inspection before shipment

Need a Custom Waterproof Sensor Cable Assembly?

Yihetai can help you develop custom waterproof sensor cable assemblies for industrial sensors, PLC systems, I/O modules, machine vision sensors, robotics, outdoor monitoring devices, automotive sensors, renewable energy equipment and OEM industrial products.

Send us your drawing, sample, sensor datasheet, connector specification, pinout, cable length, quantity and application details. Our team will review your project and provide a practical waterproof sensor cable assembly solution.
