Custom Control Panel Wire Harnesses for Industrial Control Cabinets

Yihetai manufactures custom control panel wire harnesses for industrial control cabinets, PLC control panels, electrical cabinets, automation equipment, HVAC control boxes, pump control systems, packaging machines, CNC machines, and power distribution panels.

Each control panel harness can be customized according to your wiring diagram, cabinet layout, terminal connection table, BOM, sample, or 2D drawing. We can support different wire lengths, wire colors, ferrules, ring terminals, fork terminals, quick disconnect terminals, terminal block connections, connector types, labeling, wire numbering, branch routing, sleeving, and bundling methods.

Our goal is to help panel builders, machine manufacturers, and OEM equipment companies reduce wiring time, improve assembly consistency, avoid wiring errors, and simplify installation inside control cabinets.

Where Are Our Control Panel Wire Harnesses Used?

Our custom control panel wire harnesses are widely used in PLC control panels, industrial automation cabinets, electrical control boxes, HVAC control panels, pump control systems, motor control cabinets, CNC machine control systems, packaging machinery control panels, power distribution panels and building automation control systems.

What Information Do We Need to Build Your Control Panel Harness?

Yihetai can manufacture control panel wire harnesses based on different types of customer-supplied technical information. You can provide complete drawings or simply send us a sample harness for evaluation.

We can produce according to:

Wiring diagram
Electrical schematics
2D drawings
Cabinet layout drawings
Terminal connection tables
BOM lists
Wire length and color requirements
Connector and terminal specifications
Existing samples for reverse engineering

If your design is still in the development stage, our team can also support prototype production and help confirm the most suitable wire type, terminal, connector, labeling method, and bundling structure for your control panel application.

How Pre-Assembled Control Panel Harnesses Help Panel Builders

For panel builders and OEM machine manufacturers, wiring a control cabinet manually can be time-consuming and prone to mistakes, especially when the same cabinet needs to be built repeatedly in small or large batches.

Pre-assembled control panel wire harnesses help simplify cabinet assembly by providing organized, tested, and ready-to-install wiring sets. This can reduce installation time, improve wiring consistency, minimize connection errors, and make the final cabinet easier to inspect and maintain.

By using custom-made control panel harnesses from Yihetai, customers can improve production efficiency, shorten assembly time, and ensure that each harness matches the required layout, terminal position, wire number, connector type, and electrical function before installation.

Common Problems We Help You Solve

Yihetai helps customers convert complex cabinet wiring into pre-assembled wire harness solutions. This makes production more efficient, improves quality consistency and helps reduce total assembly cost.

Traditional Cabinet Wiring

Time-consuming manual wiring
High risk of wiring mistakes
Inconsistent wire length
Difficult mass production
Messy cabinet layout
Hard to track quality issues

Industrial control cabinet manufacturers often face problems such as inconsistent manual wiring, long assembly time, wiring mistakes, unstable terminal crimping, unclear cable identification and difficulty scaling production.

Yihetai Custom Harness Solution

Pre-assembled harnesses
100% tested before delivery
Controlled wire length and routing
Stable batch production
Cleaner wiring structure
Full inspection and traceability

Customization Options for Our Control Panel Wire Harnesses

At Yihetai, all Control Panel Wire Harness products can be customized according to customer requirements.

Item	Customization Options
Wire Type	UL wire, hook-up wire, control cable, shielded cable, multicore cable, appliance wire, customized
Conductor	Bare copper, tinned copper, stranded conductor, solid conductor, customized
Wire Gauge	22-14 AWG or customized
Length	Customized according to drawing, sample or panel layout
Color	Black, red, white, blue, yellow, green, gray, multi-color, customized color code
Connector	Terminal block, ferrule, ring terminal, fork terminal, spade terminal, JST, Molex, TE, Hirose,Phoenix PLC, spring terminals, customized
Terminal	Crimp terminal, ferrule, ring terminal, fork terminal, tinned end, quick disconnect terminal
Jacket Material	PVC, PE, XLPE, TPE, silicone, PTFE and other optional materials
Process	Cutting, stripping, crimping, tinning, soldering, ultrasonic welding, labeling, bundling, sleeving, overmolding, heat-shrink
Testing	Continuity, short/open, wrong pin, polarity, insulation resistance, hi-pot, pull force, appearance inspection

We can manufacture based on customer drawings, samples, BOM lists or application requirements.

Send us your drawing, sample or specification for a fast quotation

Manufacturing Capability

With 25+ years as a wire harness manufacturer, Yihetai’s facility features automated strippers, Komax crimpers, ferrule machines, laser printers for labeling, and test benches tailored for control wiring. We manage full in-house production from prototyping to bulk orders. Rigorous controls from material to testing guarantee performance, with prototype leads at 5-7 days and mass runs in 3-4 weeks.

Quality Assurance

Quality control is built into the full production flow of our control panel wire harness projects. From incoming material inspection to cutting, stripping, crimping, tinning, soldering, assembly, labeling, bundling, electrical testing and final packaging, each step follows a documented control process. This helps ensure that every harness matches the approved drawing, sample or technical requirement. Our production is managed under ISO 9001:2015, and Yihetai also operates with UL and IATF 16949 certification systems. These systems support more consistent process control and traceability for custom wire harness and cable assembly manufacturing.

Typical inspection and test items include:

Incoming material RoHS/UL inspection
Ferrule crimp pull test (≥30N)
Crimp pull-force test (≥60N)
Visual, continuity, and polarity checks
Hi-pot insulation test (500V)
Labeling and barcode traceability
Dimensional verification with fixtures

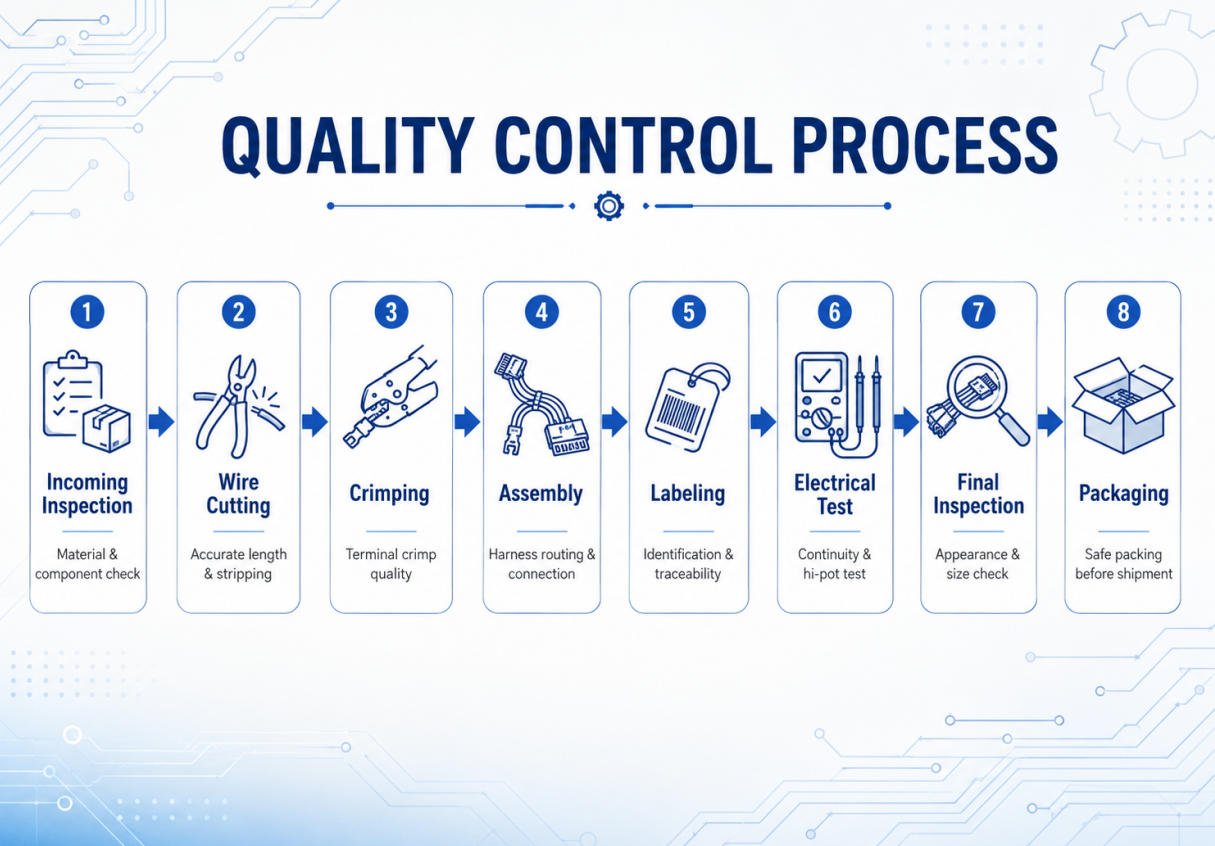

Yihetai Quality Control Process

Every control panel wiring harness is manufactured under strict process control and tested before shipment. We check terminal crimping quality, wire sequence, continuity, insulation resistance, withstand voltage, appearance, dimensions and labeling accuracy.

Why Choose Yihetai Control Panel Wire Harnesses?

1. Custom Built to Your Design

We manufacture according to your drawings, wiring diagrams, samples, connector requirements, wire gauge, color coding and labeling rules.

2. Faster Cabinet Assembly

Pre-assembled harnesses reduce wiring time inside the cabinet and help your team avoid repeated manual wiring work.

3. Reduced Wiring Errors

Each harness can be produced with clear wire colors, labels, terminals and routing structure to improve assembly accuracy.

4. Reliable Electrical Performance

Every product can be tested for continuity, insulation resistance, withstand voltage, appearance and size before shipment.

5. Flexible Production Volume

From prototype and small-batch orders to mass production, Yihetai supports different production needs.

6. Certified Manufacturing

Yihetai operates with ISO9001 quality management and also holds UL and IATF16949 certifications.

Frequently Asked Questions

Can you manufacture control panel wire harnesses based on our drawings or BOM lists?

Yes. We can manufacture according to your 2D drawings, wiring diagrams, BOM lists, samples or application requirements. If needed, our team can also help review wire gauge, terminal type, labeling and harness routing before sampling.

What kinds of terminals and connectors can you use for control panel wire harness projects?

We can support ferrules, ring terminals, fork terminals, spade terminals, terminal blocks, quick disconnect terminals and many common connector systems such as JST, Molex, TE and Hirose, depending on your design requirements.

Can you provide labeled wires or numbered harnesses for easier installation?

Yes. We can provide customized wire marking, number sleeves, printed labels, color coding and branch identification to help improve installation speed and reduce wiring mistakes in the field.

Can you support prototype orders and low-volume production?

Yes. We support prototype development, sample making, pilot production and mass production. This is suitable for new equipment development, panel design validation and later volume orders.

How do you ensure the quality of each control panel wire harness?

We use controlled production and inspection procedures including incoming material inspection, crimp verification, assembly inspection and 100% electrical testing. Depending on the project, we can also carry out insulation resistance, hi-pot and pull force tests.

Need a custom Control Panel Wire Harness for your application?

Whether you need prototype samples or mass production, Yihetai can manufacture custom control panel wire harnesses according to your drawings, samples or technical requirements.
