Custom RCA Cables Built for Reliable Audio, Video and Signal Connections
Custom RCA Cables Built for Reliable Audio, Video and Signal Connections
When your equipment needs stable signal transmission, a standard off-the-shelf RCA cable is often not enough. Different applications may require special cable length, shielding structure, connector angle, jacket material, color coding, overmolding design or mixed connector combinations.
Yihetai manufactures custom RCA cable assemblies for audio/video equipment, CCTV systems, industrial control devices, display equipment, medical-related devices, home appliances and electronic products. With more than 25 years of cable and wire harness manufacturing experience, we support both small-batch custom projects and high-volume production. Our company’s product range includes RCA cable, DC cable, DVI cable, network cable, USB cable, terminal cable, automotive wiring harness, machinery wire harness, photovoltaic harness and energy storage harness.
An RCA cable assembly is a cable solution used for audio, video and low-voltage signal connection. RCA connectors are commonly used in audio equipment, video systems, cameras, automotive electronics, monitoring devices, test instruments and many OEM electronic products.
Compared with standard retail RCA cables, a custom RCA cable assembly can better match your device structure, signal requirement, cable routing, connector direction, color coding, shielding requirement and installation environment.
For OEM projects, RCA cable assemblies may need customized cable length, shielded coaxial cable, overmolded strain relief, panel-mount sockets, special color coding, mixed connectors or open-end wiring for internal assembly.
Yihetai can manufacture RCA cable assemblies based on your drawings, samples, pinout, connector datasheets or application requirements.

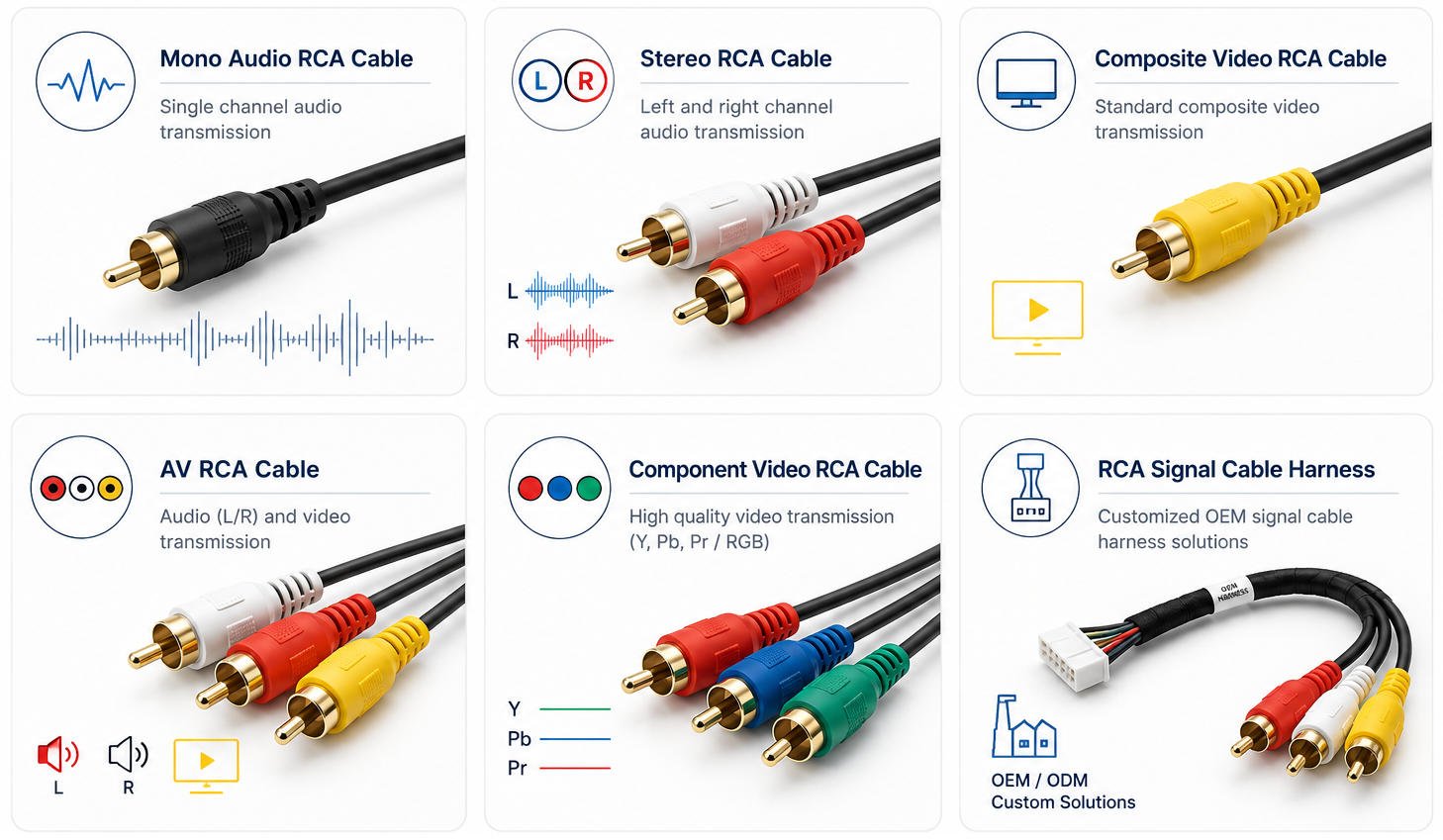

RCA cable assemblies can be designed for different signal functions. Before production, it is important to confirm whether the cable is used for mono audio, stereo audio, composite video, AV signal, component video or general low-voltage signal transmission.
| Design Type | Common Use |
|---|---|
| Mono Audio RCA Cable | Single-channel audio signal connection |
| Stereo RCA Cable | Left and right audio channel connection |
| Composite Video RCA Cable | Yellow video signal cable for video devices |
| AV RCA Cable | Red / white / yellow audio and video signal cable |
| Component Video RCA Cable | RGB or YPbPr video signal connection |
| RCA Signal Cable Harness | Low-voltage signal transmission in OEM equipment |
| RCA Extension Cable | Extends existing audio or video interface |
| RCA Breakout Cable | Multiple signal channels or mixed-end cable structure |
For audio and video applications, shielding, cable structure, connector quality and channel identification can affect signal stability and installation reliability.

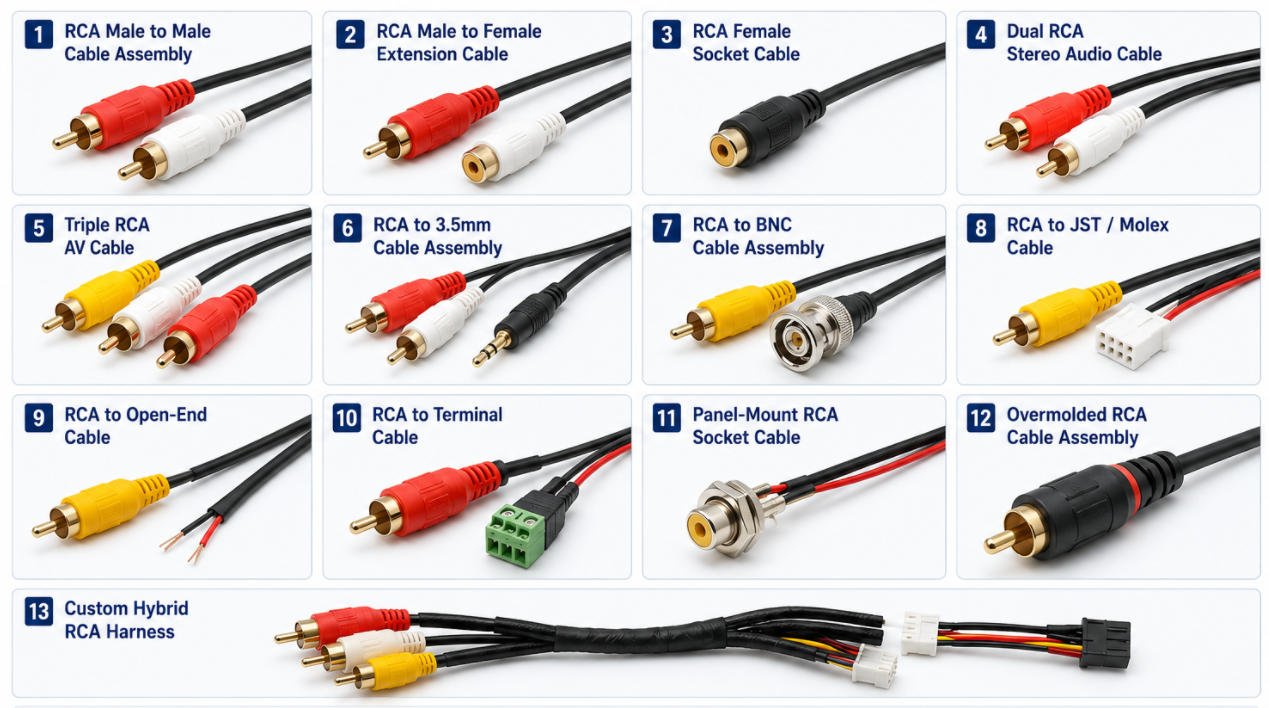

Different RCA cable projects require different connector structures and termination methods. Yihetai can customize RCA cable assemblies according to your device interface, housing space and assembly method.

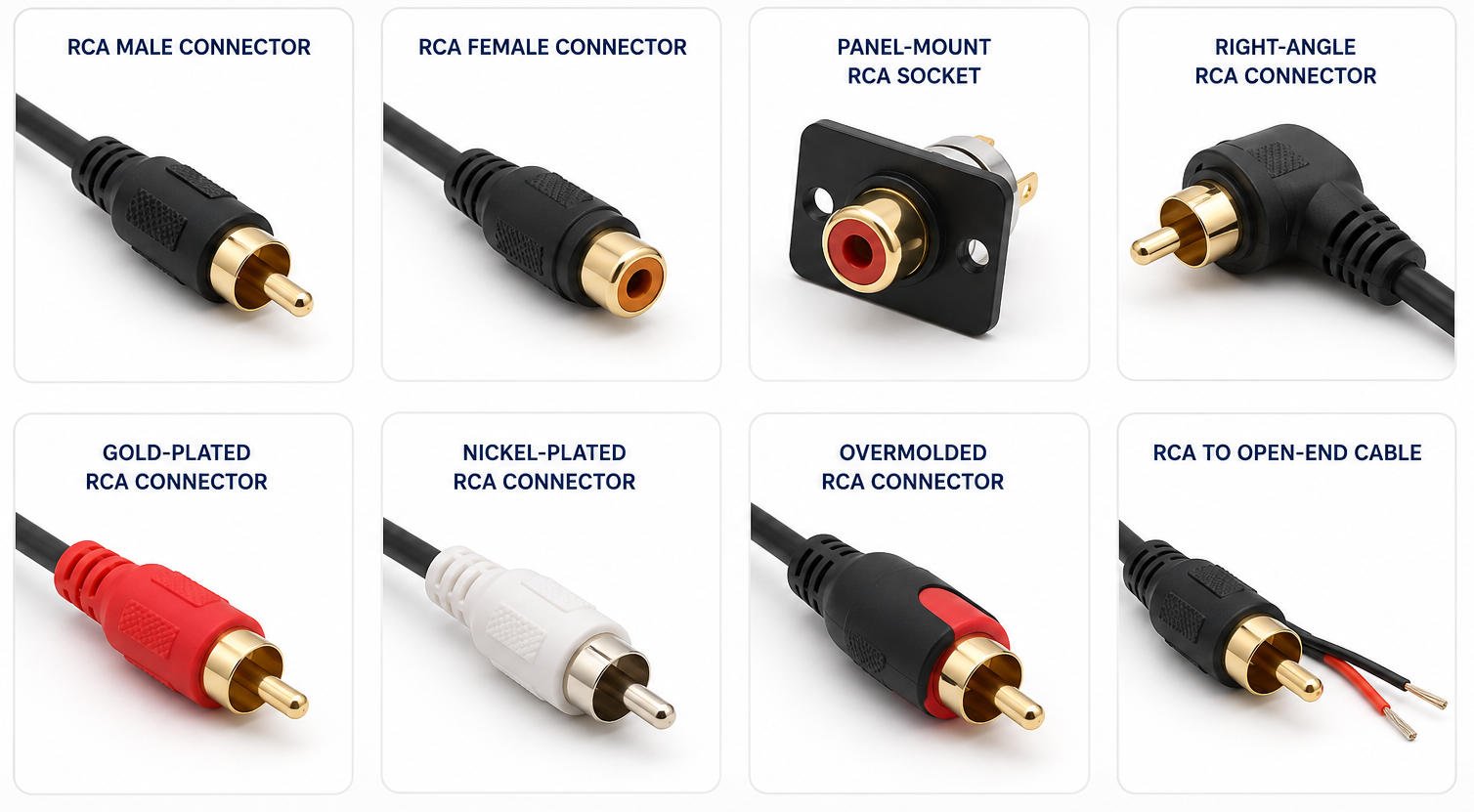

| Custom Item | Available Options |
|---|---|
| RCA Connector Gender | RCA male, RCA female, RCA socket |
| Connector Direction | Straight, right-angle, panel mount or custom |
| Contact Plating | Nickel-plated, gold-plated or customer-specified |

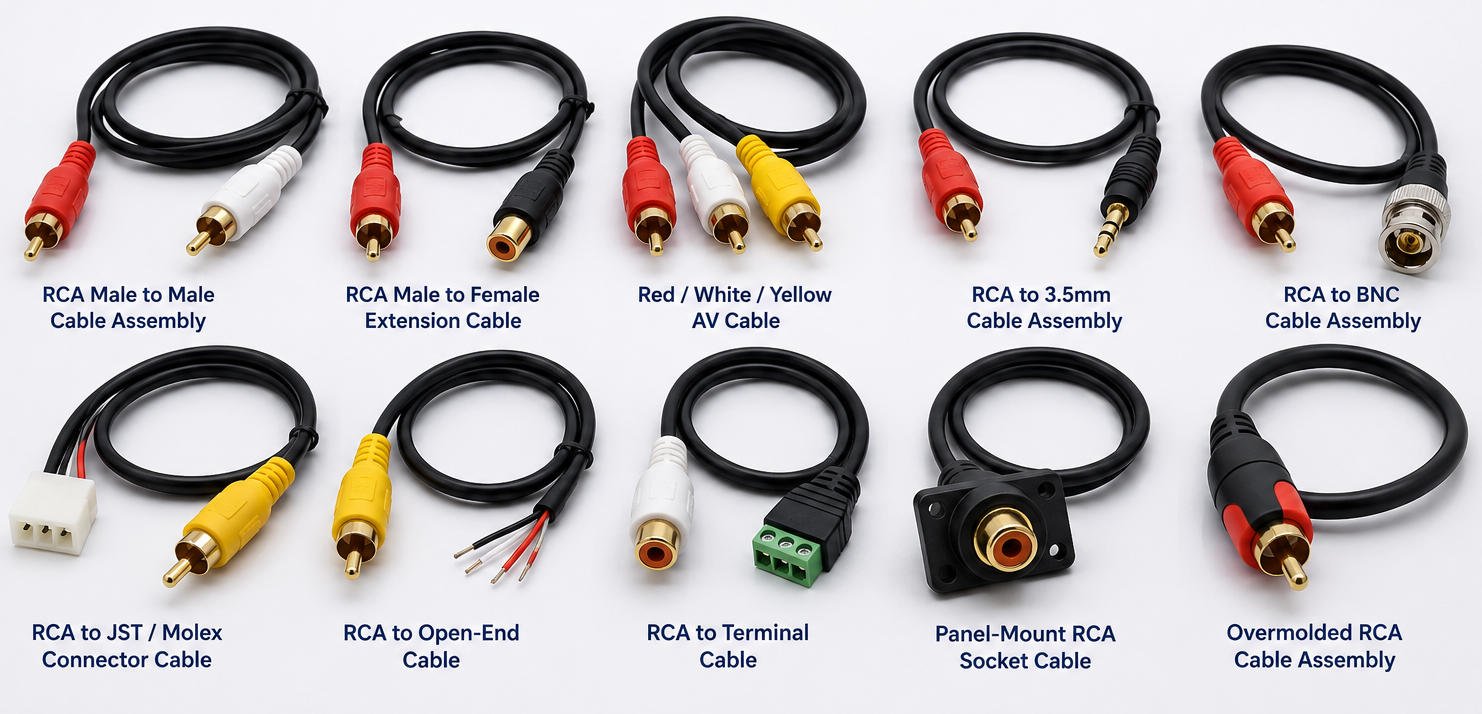

| End Structure | RCA to RCA, RCA to open end, RCA to 3.5mm, RCA to BNC, RCA to JST, RCA to terminal |
| Cable Type | Audio cable, video cable, coaxial cable, shielded cable, multi-core cable |
| Cable Length | Fully customized |
| Cable Color | Red, white, yellow, black, RGB or custom color |
| Overmolding | Standard mold, custom mold shape, logo, color or strain relief |
| Labeling | Cable label, channel label, barcode label or OEM marking |
For RCA audio and video cable assemblies, shielding design is important when the cable is used in signal-sensitive environments. Poor shielding may cause noise, interference, unstable video signal or poor audio performance.
Yihetai can help review shielding structure according to cable length, signal type, equipment environment and application requirement.
| Shielding Option | Purpose |
|---|---|
| Unshielded Cable | Suitable for simple low-cost or short-distance signal connection |
| Foil Shield | Helps reduce basic signal interference |
| Braided Shield | Improves EMI protection and mechanical durability |
| Dual Shield | Provides improved signal stability for selected applications |
| Coaxial Cable Structure | Commonly used for video and signal transmission |
| Drain Wire | Supports grounding design when required |
| Ferrite Core | Helps suppress EMI in certain equipment environments |
Shielding and grounding requirements should be confirmed before production, especially for CCTV, automotive camera, industrial AV and test equipment applications.

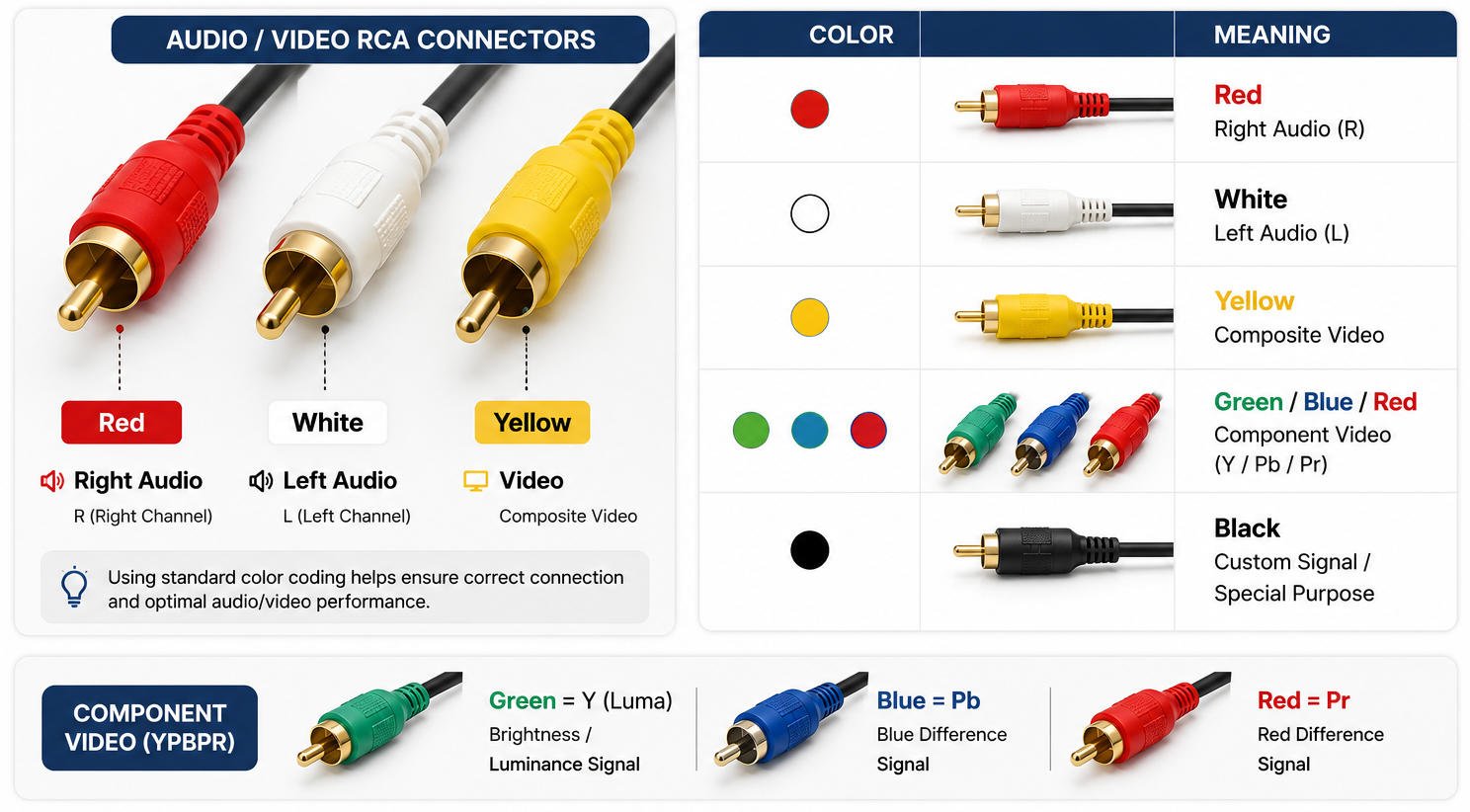

RCA cable assemblies are commonly identified by connector color. Correct color coding helps technicians, assembly workers and end users quickly distinguish audio channels, video signals and custom signal lines during installation.
For OEM equipment, RCA color coding is not only used for appearance. It can also help reduce wiring mistakes, improve assembly efficiency and make maintenance easier.
| RCA Color | Common Function | Typical Use |
|---|---|---|
| Red | Right Audio Channel | Stereo audio output or input |
| White | Left Audio Channel | Stereo audio output or input |
| Yellow | Composite Video Signal | Video connection for AV devices, cameras and monitors |
| Black | Mono Audio or Custom Signal | Single-channel audio, control signal or OEM-defined use |
| Green | Component Video Y Signal | Component video cable assembly |
| Blue | Component Video Pb / Cb Signal | Component video cable assembly |
| Red / Green / Blue | Component Video Group | YPbPr / RGB video signal connection |
| Custom Color | Customer-Defined Channel | OEM equipment, special signal wiring or internal assembly |
Yihetai can customize RCA connector colors, cable jacket colors, heat shrink colors, channel labels and packaging labels according to your product design and wiring requirement.

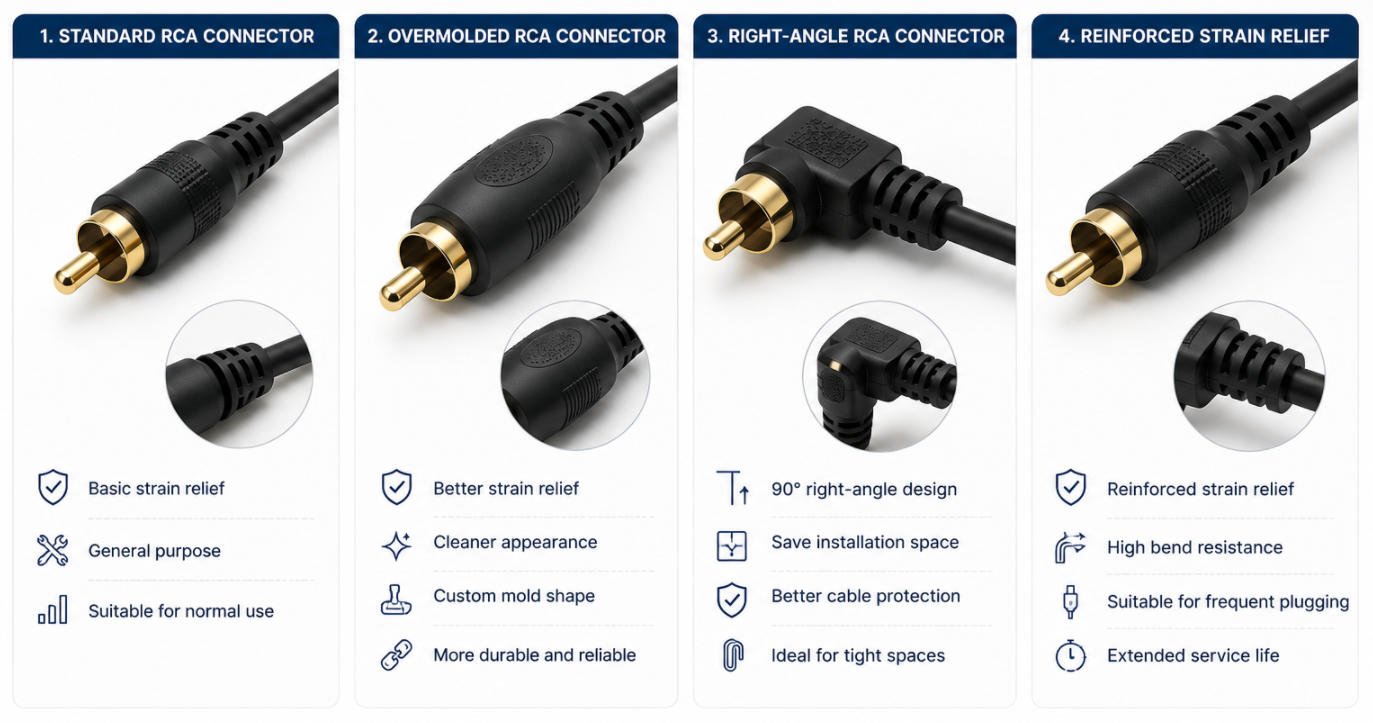

Many RCA cable assemblies are frequently plugged and unplugged. For these applications, connector protection and strain relief are important.
Yihetai can customize overmolded RCA cable assemblies according to mechanical requirement, appearance requirement and installation space.
| Option | Best Used For |
|---|---|
| Overmolded RCA Connector | Improves strain relief and appearance |
| Reinforced Cable Exit | Helps reduce bending stress near connector |
| Right-Angle RCA Connector | Suitable for limited installation space |
| Panel-Mount RCA Socket | Used for equipment panels and external connection ports |
| Custom Mold Shape | OEM product design and mechanical matching |
| Logo / Part Number Marking | Supports brand identity and traceability |
| Heat Shrink Protection | Adds insulation and cable protection |
| Parameter | Options |
|---|---|
| Product Name | Custom RCA Cable Assembly |
| Connector Type | RCA male, RCA female, panel-mount RCA socket, right-angle RCA |
| Cable Type | Audio cable, video cable, coaxial cable, shielded cable, hybrid cable |
| Wire Gauge | 20AWG–30AWG or custom |
| Cable Length | Fully customized |
| Shielding | Unshielded, foil shield, braid shield, dual shield, drain wire |
| Jacket Material | PVC, TPE, TPU or customer-specified material |
| Contact Plating | Gold-plated, nickel-plated or customer-specified |
| Color Coding | Red, white, yellow, black, RGB or custom color |
| End Structure | RCA to RCA, RCA to open end, RCA to JST, RCA to BNC, RCA to 3.5mm |
| Overmolding | Standard mold, custom mold shape, color, logo or strain relief |
| Process | Cutting, stripping, soldering, crimping, overmolding, labeling, testing |
| Testing | Continuity, pinout, short/open, signal-related test when required, visual inspection |
| OEM/ODM | Supported |
| Production Basis | Drawing, sample, pinout, BOM list, connector datasheet or application requirement |

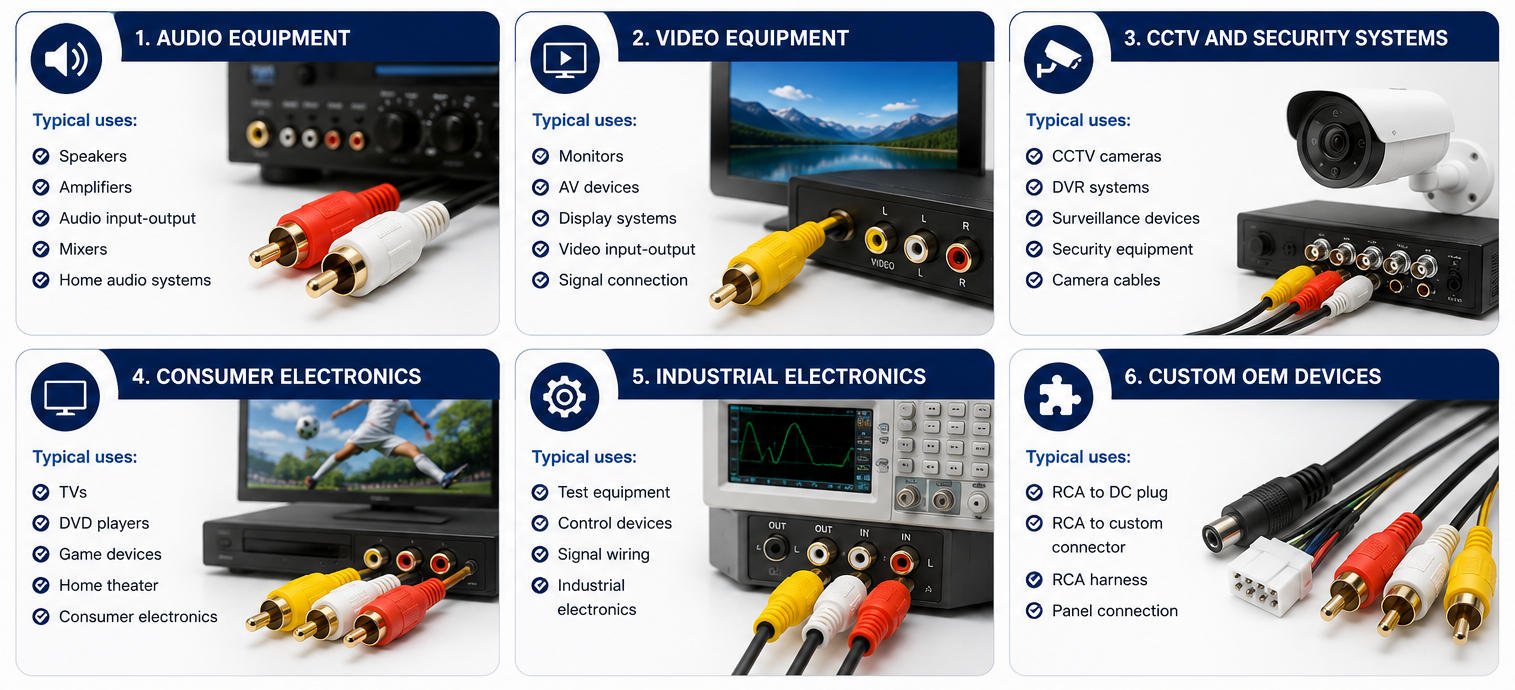

Typical uses: Speakers / Amplifiers / Audio input-output / Mixers / Home audio systems
Typical uses: Monitors / AV devices / Display systems / Video input-output / Signal connection
Typical uses: CCTV cameras / DVR systems / Surveillance devices / Security equipment / Camera cables
Typical uses: TVs / DVD players / Game devices / Home theater / Consumer electronics
Typical uses: Test equipment / Control devices / Signal wiring / Industrial electronics
Typical uses: RCA to DC plug / RCA to custom connector / RCA harness / Panel connection
An RCA cable assembly must provide stable signal connection and reliable mechanical performance during use. Poor soldering, weak shielding, incorrect channel identification, loose plug parts or insufficient strain relief may cause audio noise, video interference, unstable signal transmission or premature cable damage.
Yihetai focuses on the following quality points:
– correct RCA connector model
– accurate cable length
– stable soldering or crimping
– correct audio/video channel connection
– proper shielding treatment
– correct connector color coding
– clean overmolded appearance
– strong strain relief
– no conductor or shield damage during stripping
– reliable electrical continuity
– no open circuit or short circuit
– appearance and dimensional inspection before shipment

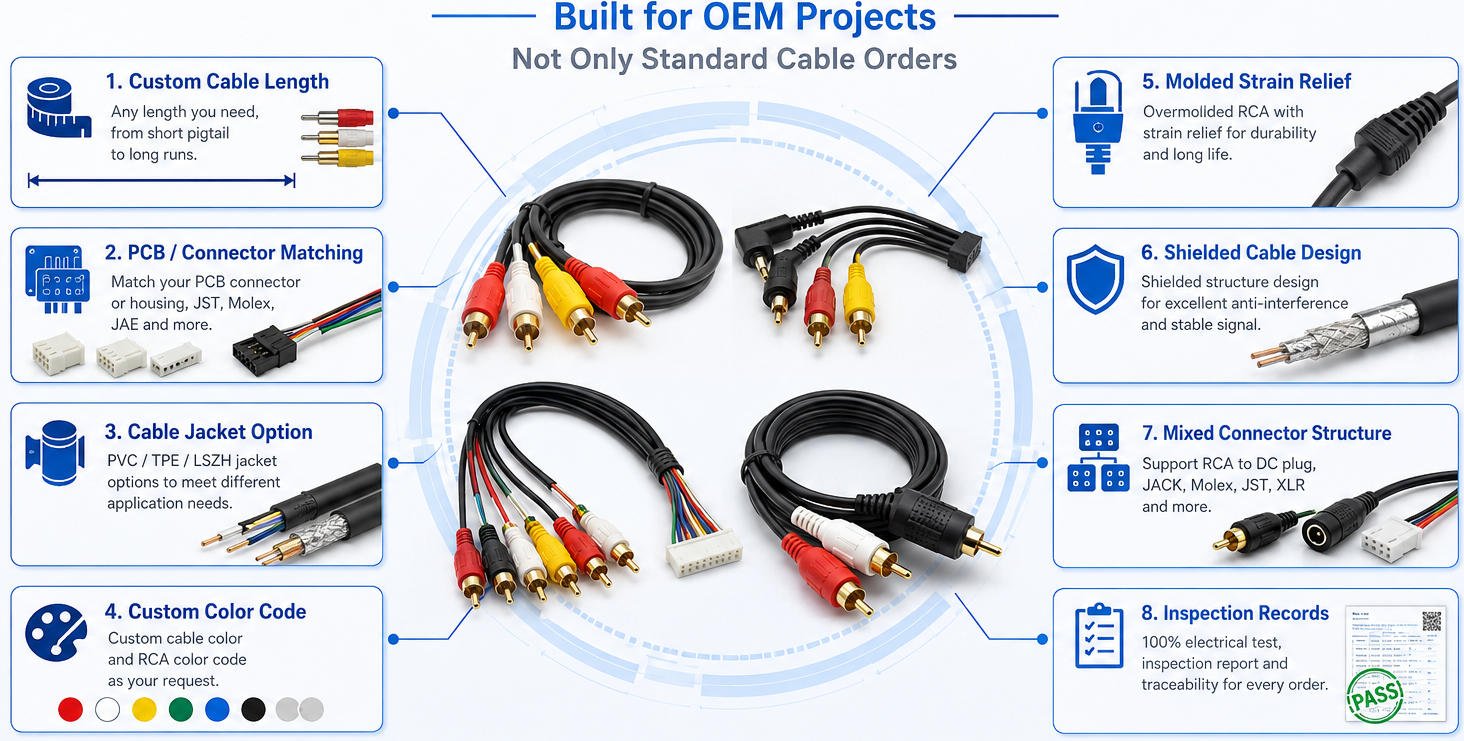

A standard RCA cable may be enough for retail use, but OEM projects usually need more control.
1. Real Factory Manufacturing, Not Just Trading
Yihetai was founded in 2001 and specializes in hook-up wires, wire processing and custom cable assemblies. The company integrates R&D, production and sales, and has import and export capability.
2. In-House Wire and Cable Processing
We are not limited to simple cable assembly. Yihetai has wire extrusion, wire cutting, terminal crimping, injection molding, assembly and continuity testing capabilities. This allows us to control cable material, processing quality and final assembly performance.
3. Strong Production Capacity
Yihetai’s company profile shows production capacity including PVC electronic wire, PVC power cord, composite cable, PVC cable material and wire processing capacity of up to 2 million pieces per month.

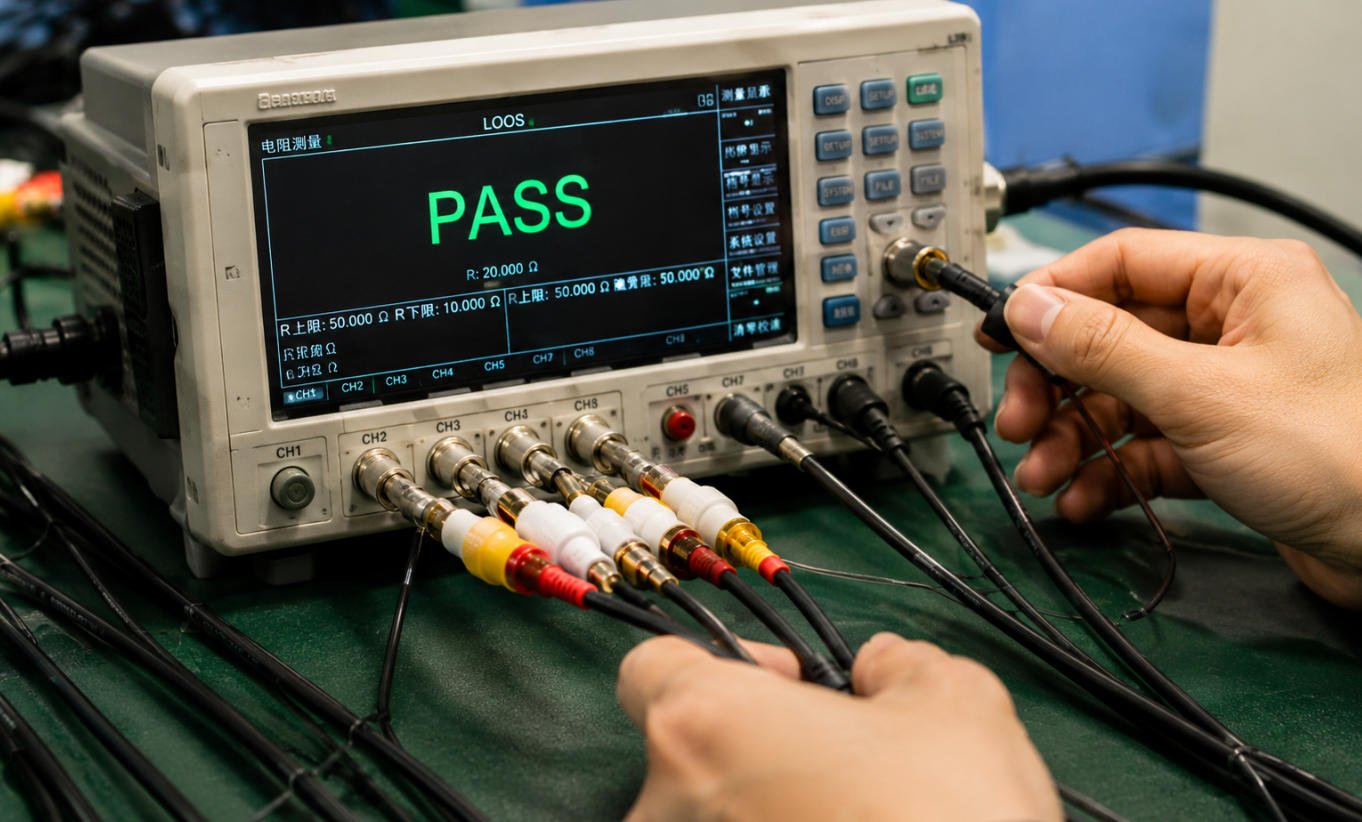

4. Strict Quality Testing
Each RCA cable assembly can be tested according to project requirements, including:
Yes. We can manufacture custom RCA cable assemblies based on drawings, samples, pinouts, connector datasheets, BOM lists or application requirements.
We can support RCA male connectors, RCA female connectors, panel-mount RCA sockets, right-angle RCA connectors and overmolded RCA connector designs.
Yes. We can manufacture mono RCA cables, stereo RCA audio cables, composite video RCA cables, AV cables and customized RCA signal cable assemblies.
Yes. We can manufacture RCA to 3.5mm, RCA to BNC, RCA to JST, RCA to Molex, RCA to Mini DIN, RCA to open-end and other mixed-end cable assemblies.
Yes. Shielding options include foil shield, braid shield, dual shield, drain wire and coaxial cable structures according to the signal and application requirement.
Yes. We can customize red, white, yellow, black, RGB or customer-defined color coding for audio, video or signal channel identification.
Send us your drawing, sample or technical requirements, and our team will provide a customized wire harness or cable assembly solution for your project.
