Custom D-sub Cable Assembly Manufacturer

Yihetai is a professional custom D-sub cable assembly manufacturer in China, providing reliable D-sub cable solutions for signal transmission, serial communication, control systems and industrial equipment connection. As an experienced wire harness manufacturer and cable assembly supplier, we manufacture custom DB9, DB15, DB25, DB37, DB50 and high-density D-sub cable assemblies according to customer drawings, samples, BOM lists or application requirements.

Our D-sub cable assembly products can be customized with different wire gauges, cable lengths, pin counts, male or female connectors, straight or angled hoods, metal or plastic shells, shielding structures, overmolded strain relief, screw locks, wire colors and special pin assignments. Whether you need a simple RS232 serial cable, a D-sub to open-end cable, a D-sub to terminal cable, or a complex custom wire harness with multiple branches, Yihetai can provide a stable and cost-effective custom wiring solution.

Our D-sub cable assemblies are widely used in industrial automation, PLC control systems, CNC machines, communication devices, medical equipment, test instruments, robotics, power control cabinets, security systems, transportation equipment and other electronic applications. With more than 25 years of wiring harness experience, in-house production capability and strict quality control, Yihetai supports prototype development, small-batch orders and mass production. Send us your drawing, sample or technical specification, and our engineering team will help you build the right D-sub cable assembly for your project.

What Is D-Sub Cable Assembly?

D-sub cable assembly is a customized cable or wire assembly using D-subminiature connectors for secure signal, data, or power transmission. It features male or female D-shaped plugs with pins from 9 to 50, designed for specific electrical, mechanical, and environmental requirements.This structure helps prevent wrong mating direction, improves mechanical strength and provides better protection for signal transmission.

D-sub cable assemblies are commonly used for low-voltage signal transmission, RS232 serial communication, control wiring, data acquisition, industrial I/O connection and equipment-to-equipment communication. Compared with standard off-the-shelf cables, a custom D-sub cable assembly can better match the equipment layout, pin assignment, installation space, shielding requirement and working environment.

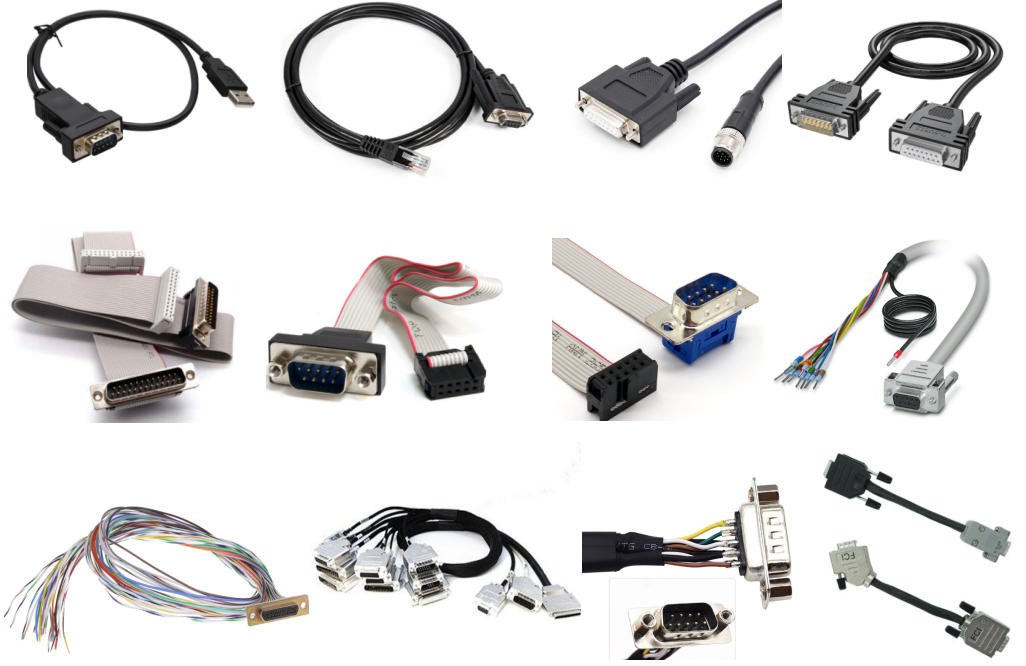

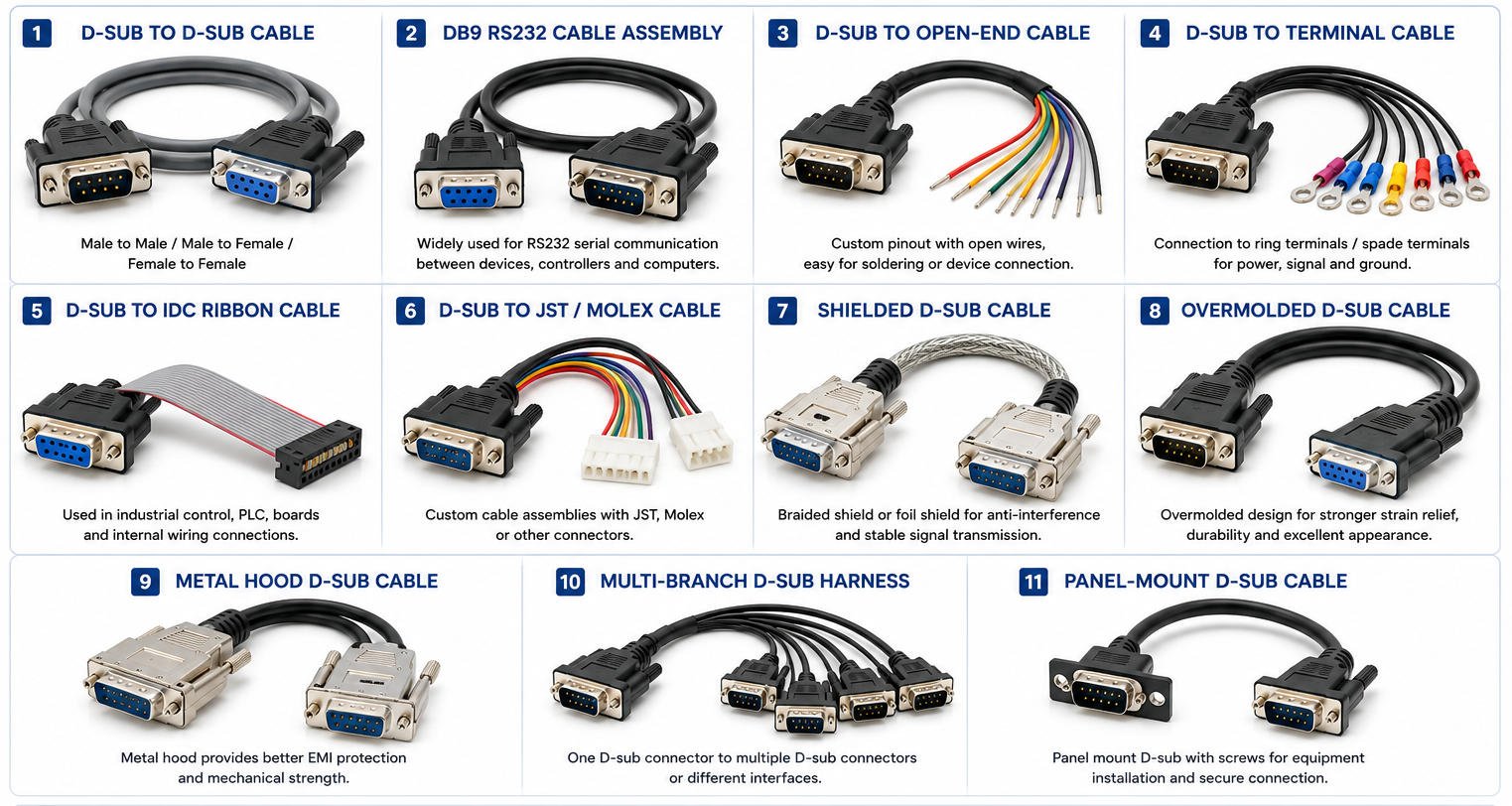

Common Custom D-sub Cable Assembly Types We Manufacture

Yihetai manufactures a wide range of custom D-sub cable assembly products for industrial and commercial applications, including:

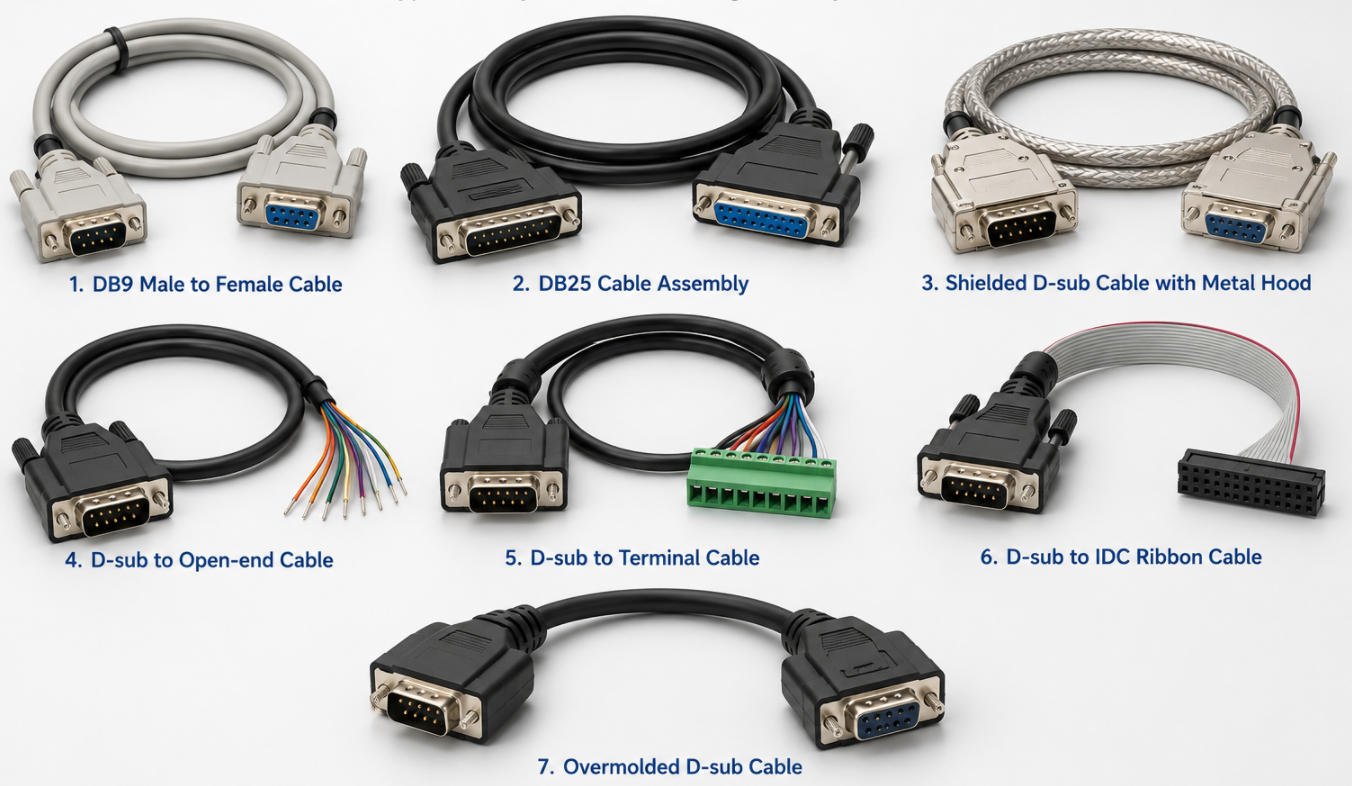

DB9 cable assembly
DB15 cable assembly
DB25 cable assembly
DB37 cable assembly
DB50 cable assembly
High-density D-sub cable assembly
D-sub male to female cable assembly
D-sub male to male cable assembly
D-sub female to female cable assembly
D-sub to open-end cable assembly
D-sub to terminal cable assembly
D-sub to IDC ribbon cable assembly
D-sub connector flat ribbon cable
D-sub cable with hood
D-sub overmolded cable assembly
Shielded D-sub cable assembly
RS232 serial D-sub cable assembly
Custom pinout D-sub cable assembly
Multi-branch D-sub wiring harness
OEM wire harness with D-sub connector

Key Features of our D-Sub Cable Assembly

Compatible with standard D-sub brands like Amphenol, TE Connectivity, and Positronic
Multiple wire gauges (18-28 AWG) and insulation like PVC, Teflon for durability
Custom DB9, DB15, DB25, DB37 and high-density D-sub connector options available

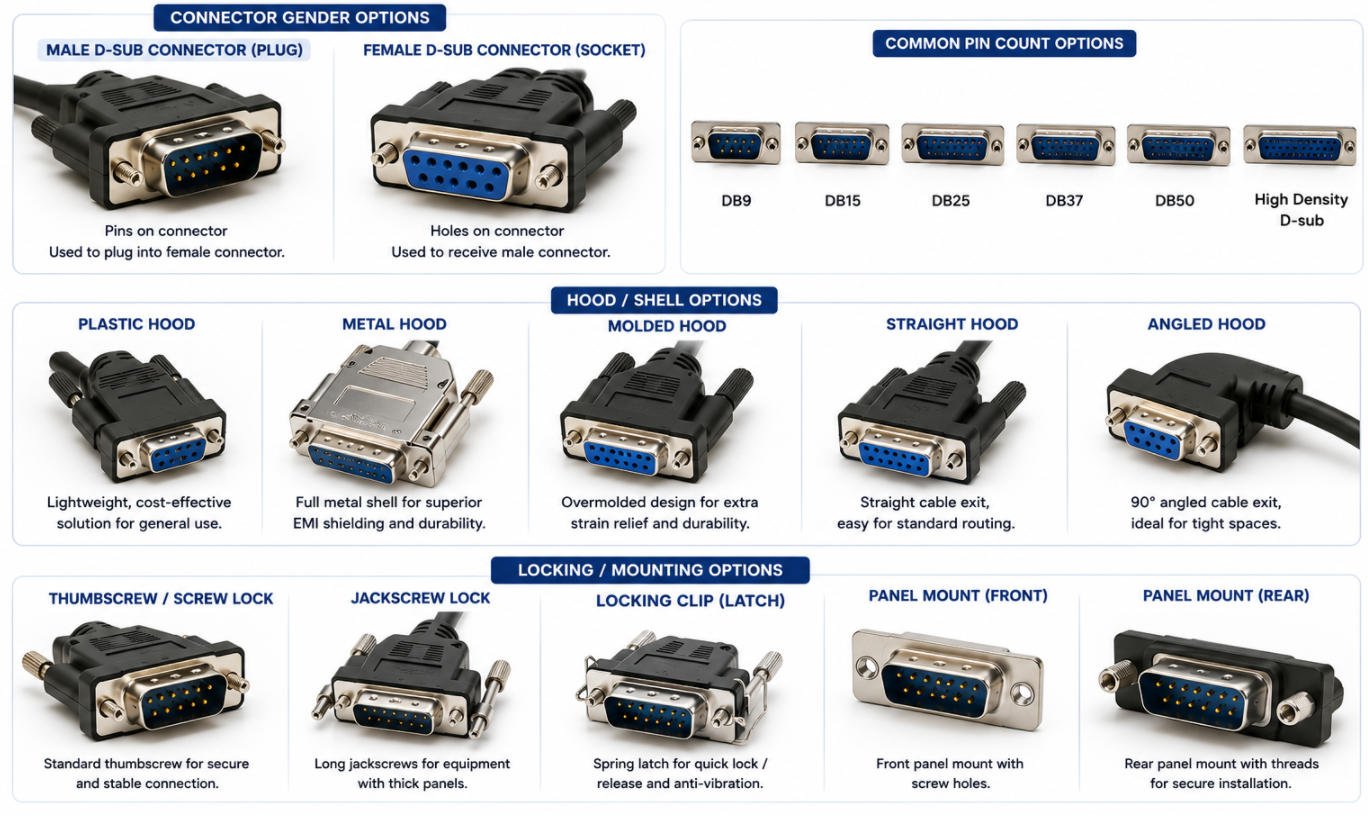

Male, female, straight, angled, hooded and overmolded connector designs can be customized
Shielded cable options help reduce EMI interference and improve signal stability
Custom pinout, wire color, cable length and branch structure according to drawings
Compatible with RS232, control signal, low-voltage data and industrial I/O applications
PVC, TPE, PUR, silicone and other jacket materials can be selected
Strong crimping, soldering, assembly and overmolding process for long service life
100% electrical testing before shipment to ensure reliable connection performance

Technical Specifications

Item	Available Options
Product Name	Custom D-sub Cable Assembly

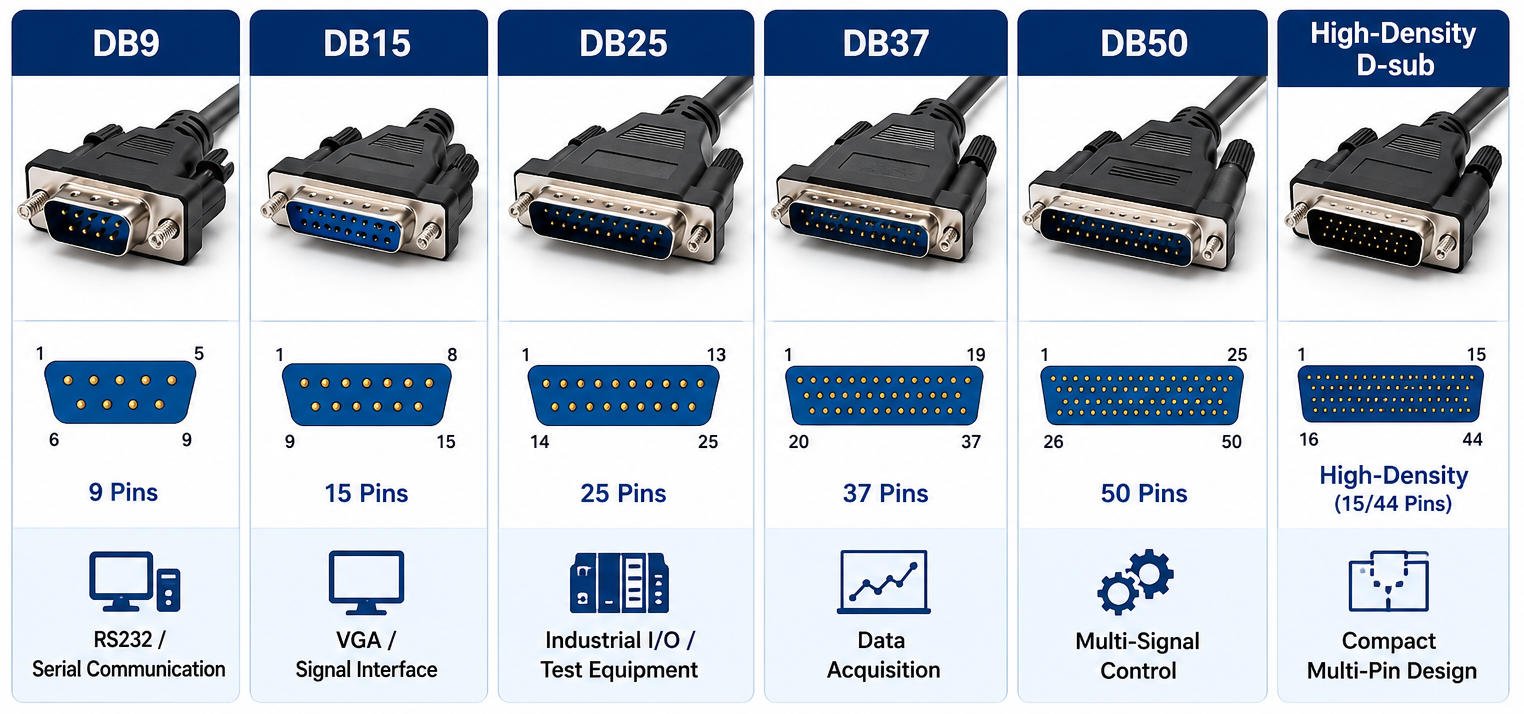

Connector Type	DB9, DB15, DB25, DB37, DB50, high-density D-sub
Connector Gender	Male, female, male-to-male, female-to-female, male-to-female

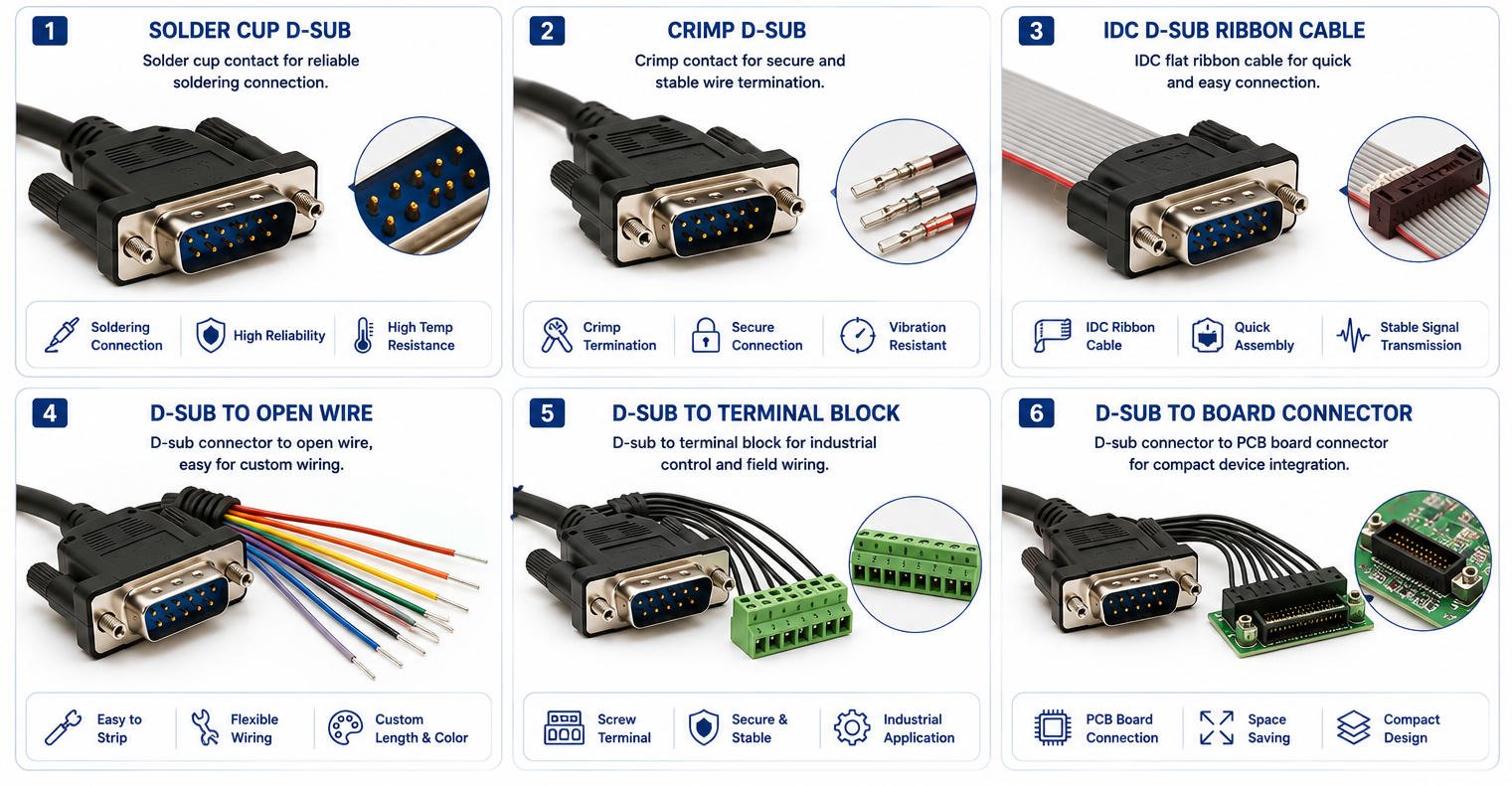

Termination Type	Solder cup, crimp, IDC, PCB, open end, terminal, connector-to-connector
Cable Type	Multi-core cable, shielded cable, flat ribbon cable, round cable, custom cable
Wire Gauge	Commonly 18AWG–30AWG, customized according to application
Cable Length	Customized according to customer drawing or installation requirement
Shielding	Unshielded, foil shield, braided shield, drain wire, metal hood
Jacket Material	PVC, PE, TPE, PUR, silicone or customized material
Connector Housing	Plastic hood, metal hood, overmolded type, assembled shell
Pin Assignment	Standard or fully customized pinout
Voltage Rating	Customized according to connector, cable and application requirements
Temperature Range	Depending on cable and jacket material
Color	Black, gray, white or customized color
Marking	Label, heat shrink marking, printing or customer part number
Testing	Continuity test, short/open test, high-voltage test, insulation resistance test
Compliance	ISO 9001:2015, UL, IATF 16949 manufacturing system support

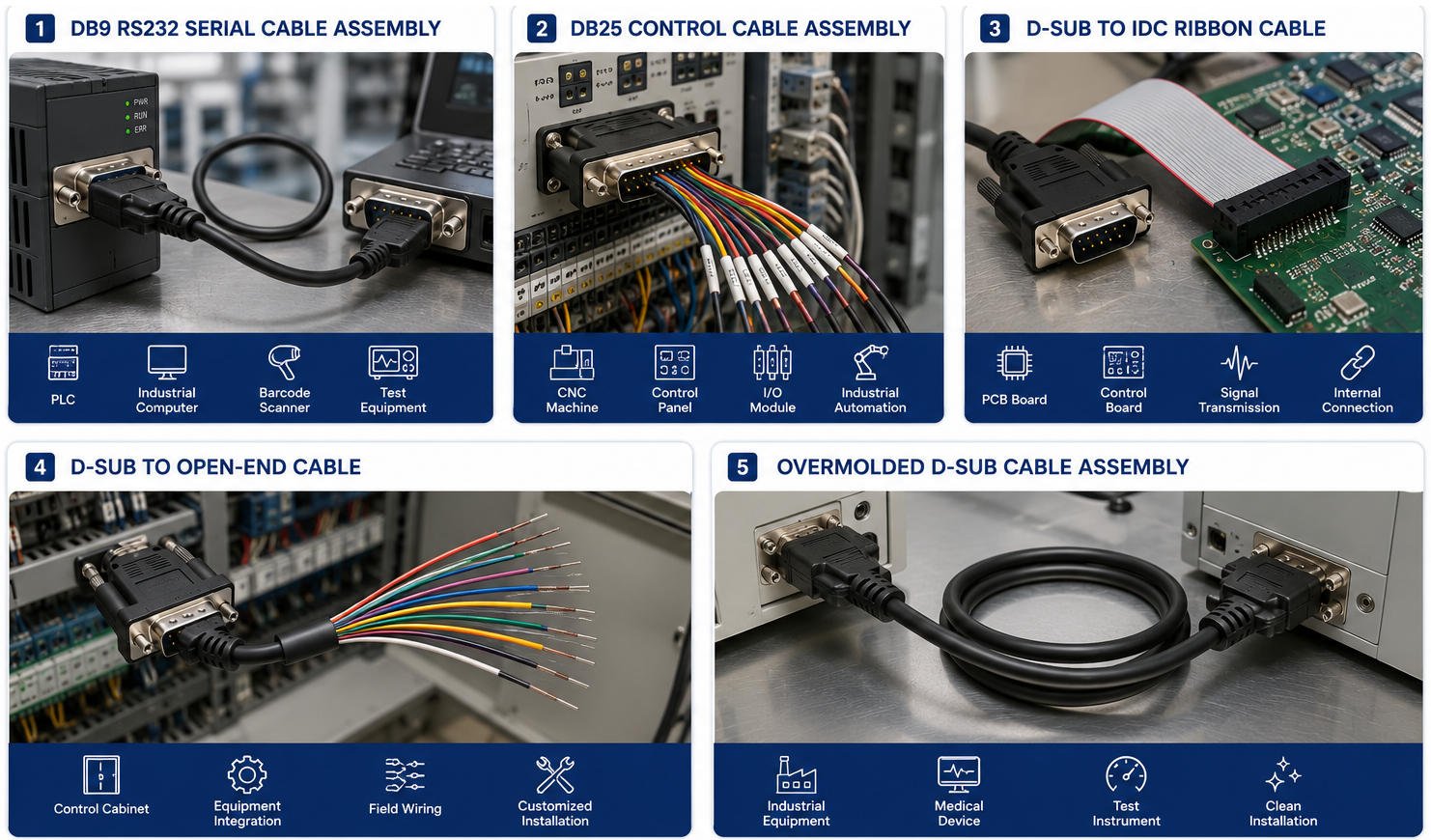

Applications

Our D-sub cable assembly solutions are widely used in industrial, commercial and special equipment applications.

Industrial automation equipment
PLC control systems
Control panels and electrical cabinets
CNC machines and machine tools
Servo drives and motor control systems
Industrial sensors and I/O modules
Test and measurement equipment
Data acquisition systems
Factory communication equipment
Robotics and intelligent equipment
Machine vision systems
Industrial computers and embedded systems
POS terminals and payment equipment
Computer peripheral devices
Display and video signal equipment
Office automation equipment

Audio and visual systems
Consumer electronics
Home appliances with control interfaces
Security monitoring equipment
Barcode scanners and data terminals
Communication devices
Medical devices and diagnostic equipment
Automotive electronic test systems
Aerospace ground support equipment
Energy storage control systems
Photovoltaic monitoring equipment
Laboratory instruments
Military and ruggedized electronic systems
Railway and transportation control equipment
Custom OEM electronic systems requiring stable signal connection

If your product requires a reliable multi-pin signal interface, a custom D-sub cable assembly can be designed to fit your electrical layout, enclosure space and installation method.

Customization Options

At Yihetai, all D-sub cable assembly products can be customized according to customer requirements.

Custom Item	Available Options	Notes
Wire Type	Single wire, multi-core cable, ribbon cable, shielded cable	Selected according to signal, flexibility and routing needs
Conductor	Bare copper, tinned copper, customized conductor	Tinned copper is commonly used for improved solderability
Wire Gauge	18AWG–28AWG or customized	Based on current, voltage and mechanical requirement
Cable Length	Fully customized	Short internal cables or long external connection cables
Color	Black, grey, white, red, blue or customized	Cable and wire colors can match customer standards
Connector	DB9, DB15, DB25, DB37, DB50, high-density D-sub	Male/female and mounting type customized
Terminal	Ring terminal, spade terminal, JST, Molex, TE, Dupont or open end	For D-sub to wire harness designs
Jacket Material	PVC, PE, TPE, PUR or special material	Based on flexibility, temperature and environment
Hood Material	Plastic hood, metal hood, molded PVC/TPE	Depends on durability and installation requirements
Shielding	Foil, braid, drain wire or no shielding	Recommended for EMI-sensitive signal applications
Process	Crimping, soldering, IDC, overmolding, labeling, sleeving	Process selected according to design
Testing	Continuity, pinout, short/open, Hi-Pot, pull test	Test plan can be customized for OEM projects
Packaging	Bulk packing, individual bag, label, carton	Customized for production line use

We can manufacture based on customer drawings, samples, BOM lists or application requirements.

Send us your drawing, sample or specification for a fast quotation

Manufacturing Capability

Yihetai operates as a full-service wiring harness factory with advanced automated crimping machines, soldering stations, and overmolding equipment dedicated to custom D-sub cable assembly production. Our 5,000 sqm facility supports volumes from prototypes to 100,000+ units monthly, ensuring scalability for OEM wire harness needs.

From material selection to final assembly and testing, all processes follow strict quality controls for consistent performance and reliability. Typical lead time for prototypes is 5-7 days, mass production 3-4 weeks.

Quality Assurance & Control

Yihetai follows a documented quality control system throughout the complete manufacturing process. From incoming material inspection to final product testing, each key production step is controlled and recorded to ensure that every D-sub cable assembly meets customer requirements. Our quality team checks connector specifications, wire materials, crimping quality, soldering points, cable length, pinout accuracy, appearance and electrical performance. Our production processes comply with ISO 9001:2015 quality management requirements, and Yihetai also has UL and IATF 16949 certification support. This makes us a reliable custom cable assembly and OEM wire harness partner for customers in industrial, automotive, energy, medical, communication and electronic equipment markets.

Quality inspection items include:

Incoming material inspection for connectors, wires, terminals and accessories
Wire cutting length and stripping dimension inspection
D-sub connector soldering or crimping quality check
Terminal crimp pull test when applicable
Pinout and wire sequence verification
Visual inspection for connector shell, hood, screws and cable jacket
Continuity and short/open circuit testing
High-voltage test according to customer requirements
Insulation resistance test when required
Dimensional and fixture inspection for customized assemblies
Final appearance, labeling and packaging inspection
Every harness is delivered with guaranteed electrical integrity and consistent quality across batches.

Why Choose Yihetai

25+ Years of Expertise in Delivering Custom Wire Harness & Cable Assembly Solutions Across Diverse Industries

Strong Engineering Support for Custom Design, Connector Matching, and Optimized Cable Assembly Solutions

Flexible Production from Prototype Development to Mass Production, Supporting Small-Batch Trials, Engineering Samples, and High-Volume Orders

Complete In-House Wire Processing and Assembly Capability, Covering Cutting, Stripping, Crimping, Soldering, Overmolding, Assembly, and Testing

100% Electrical Testing and Full Traceability for Every D-Sub Cable Assembly Before Shipment

Competitive Pricing with Reliable Delivery, Offering Cost-Effective Custom Wiring Solutions Without Compromising Quality

Frequently Asked Questions

What is a D-sub cable assembly?

A D-sub cable assembly integrates D-shaped connectors (DB9 to DB50) with custom wires for data, signal, or power links. It excels in EMI resistance and durability for industrial use. We customize lengths, shielding, and terminations based on your specs, making it ideal for RS-232, VGA, or control systems. As a cable assembly manufacturer, Yihetai ensures compatibility with legacy and modern equipment.

What customization options do you offer for D-sub cable assemblies?

We tailor wire gauge (18-28 AWG), lengths, connector genders/sizes, shielding (foil/braid), overmolding, and materials like PVC or Teflon. Provide drawings or samples, and our team handles crimping, soldering, or IDC. Notes include waterproofing for IP67. This flexibility suits OEM wire harness needs precisely.

What industries use your custom D-sub cable assemblies?

Primarily industrial automation, telecom, automotive diagnostics, test equipment, and medical devices. They connect PLCs, sensors, ECUs, and monitors reliably. Our assemblies withstand vibration, temperature extremes, and EMI, outperforming generics. Contact us for sector-specific solutions.

What quality tests do you perform on D-sub cables?

Every assembly undergoes 100% continuity, hi-pot (1000V), crimp pull (50N+), visual, and dimensional checks. We follow IATF 16949 and UL standards for consistency. This guarantees zero defects in batches, with full traceability.

What is your lead time and MOQ for custom D-sub cable assembly?

Prototypes: 5-7 days, MOQ 50-100 pcs; mass: 3-4 weeks, scalable. No rigid MOQ for samples, we support low-volume OEM runs. Upload specs for instant quote from our China factory.

Need a custom custom D-sub cable assembly for your project?

Send us your drawing, sample or specification for a fast quotation.
