Custom LVDS Cable Assembly Manufacturer

High-Reliability LVDS Display Cable Assemblies Built to Your Drawing, Pinout and Application Requirements.

Yihetai manufactures custom LVDS cable assemblies for LCD displays, industrial control panels, automotive electronics, medical devices, smart equipment and embedded systems. We support a wide range of connector options, including I-PEX, JAE, Hirose, Molex, JST and equivalent connectors, with customized cable length, wire gauge, pin assignment, shielding, ferrite core, labeling and packaging.

With more than 25 years of wire harness manufacturing experience, Yihetai provides OEM/ODM cable assembly solutions from prototype to mass production. Our production is supported by ISO 9001, UL and IATF 16949 quality systems, with 100% electrical testing and full traceability for every cable assembly.

Custom LVDS Cable Assemblies for Reliable Display Signal Transmission

Yihetai manufactures custom LVDS cable assemblies designed for high-speed signal transmission between LCD panels, display modules, embedded boards and control systems. Whether your application requires a standard LCD LVDS cable, a compact micro-coaxial cable assembly, a shielded display cable or a fully customized wire harness, we can build the cable according to your drawing, sample, connector model, pinout and production requirements.

LVDS means low-voltage differential signaling; Texas Instruments describes LVDS as a technology with specific architecture, electrical characteristics and application use cases. For display applications, connector and cable quality are especially important because LVDS cable assemblies often carry high-speed differential signals inside TVs, monitors, digital signage and other display-related products. JAE FI-R connectors, for example, are described as being used for high-speed digital serial transmission such as LVDS, TMDS and PCI Express, including internal video transmission in TVs, monitors and digital signage.

At Yihetai, every LVDS cable assembly can be customized for your exact electrical, mechanical and environmental requirements.

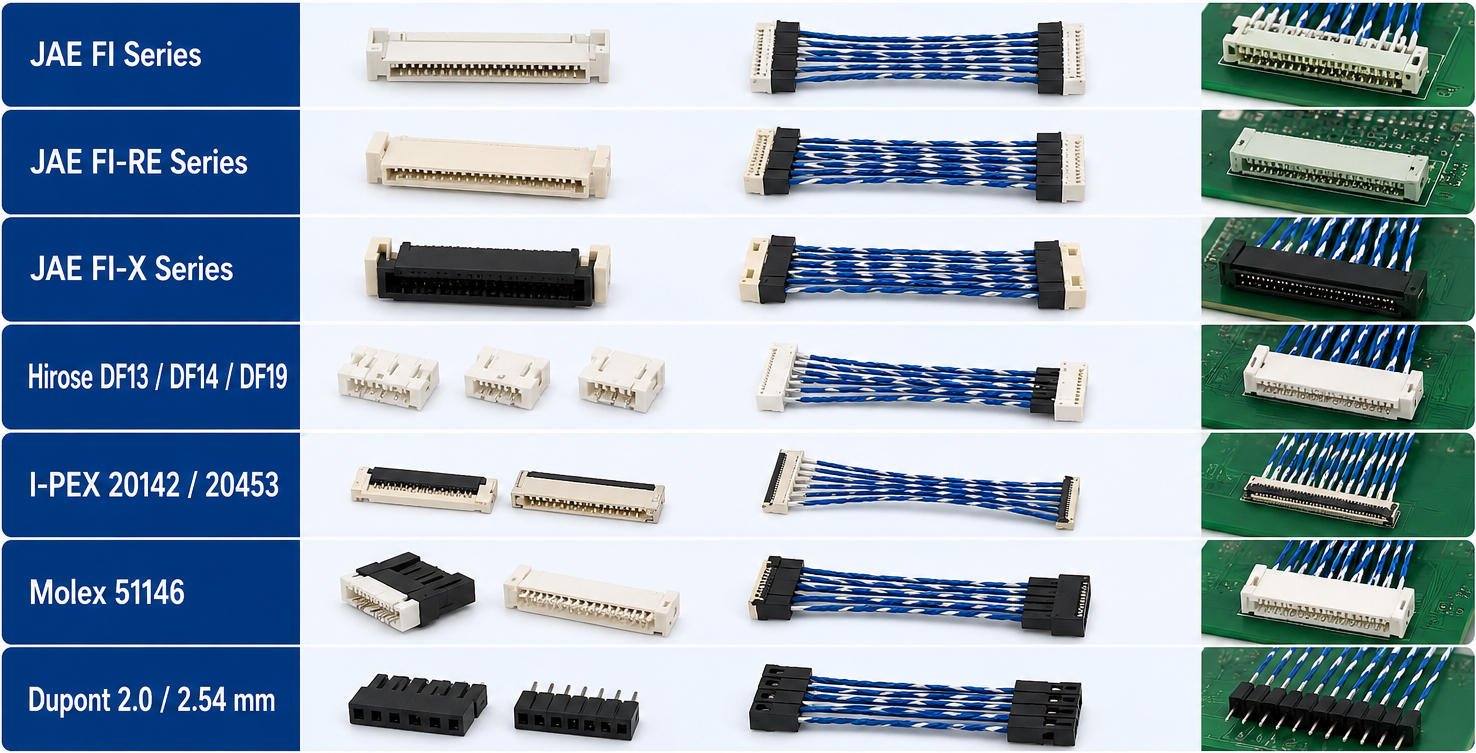

LVDS Connector Options We Support

Yihetai manufactures custom LVDS cable assemblies with JAE, Hirose, I-PEX, Molex, JST, TE and equivalent connector options. We can support different pin counts, pitch sizes, locking structures and board-to-display connection requirements according to your LCD panel, control board or embedded system design.

Connector Brand / Series	Typical Use	Customization
JAE FI Series	LCD display connection	Pin count, cable length, orientation
JAE FI-RE Series	Compact display modules	Fine pitch, locking option
JAE FI-X Series	Industrial display interface	Straight or customized routing
Hirose DF13 / DF14 / DF19	Board-to-display cable	Pitch and pinout customization
I-PEX 20142 / 20453	Compact LCD / embedded device	Thin cable, micro-coax option
Molex 51146	Display and signal cable	Custom pinout and cable length
Dupont 2.0 / 2.54 mm	General signal connection	Low-volume or prototype project

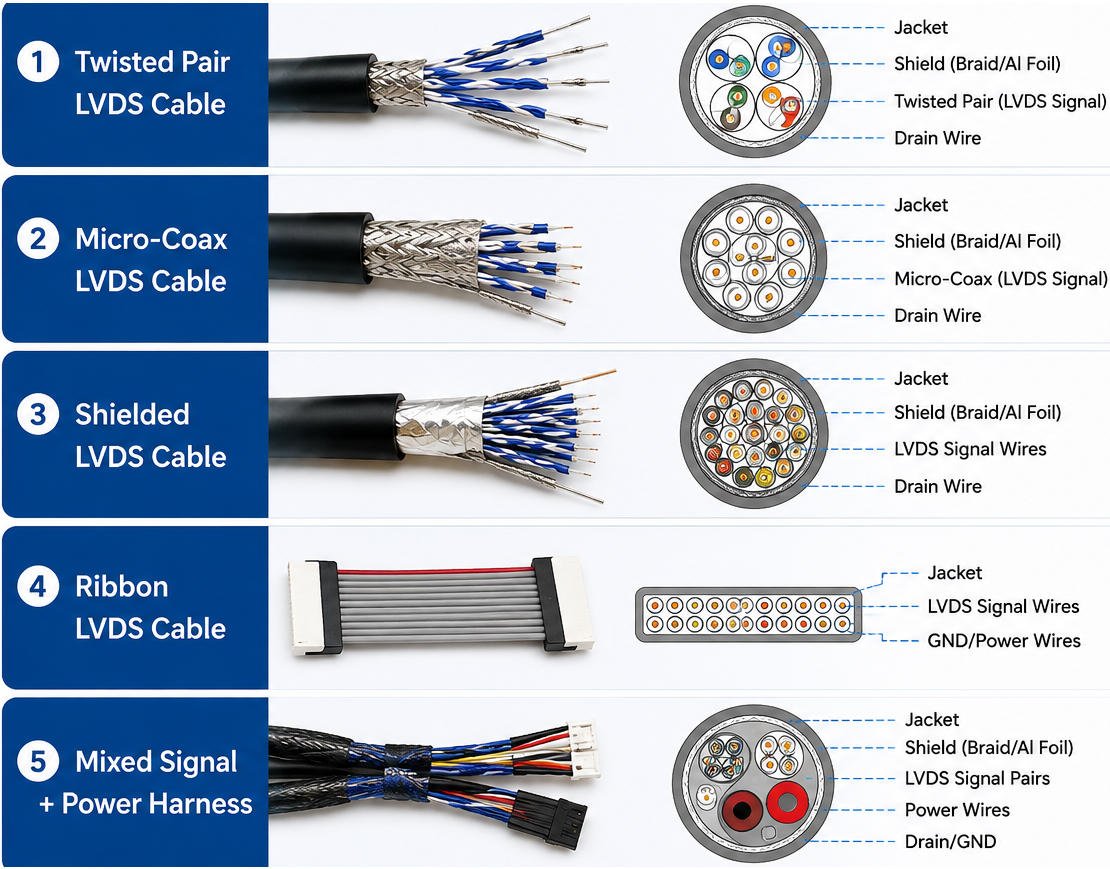

LVDS Cable Structure Options

Different LVDS applications require different cable structures. For compact LCD display modules, micro-coaxial cable may be preferred. For industrial equipment and control systems, twisted pair or shielded wire structures may be used to improve signal stability and reduce electromagnetic interference.

Cable Structure	Best For	Benefit
Twisted Pair LVDS Cable	Industrial displays, HMI panels	Helps reduce noise and crosstalk
Micro-Coax LVDS Cable	Compact LCD modules, thin devices	Flexible, compact and suitable for high-density routing
Shielded LVDS Cable	EMI-sensitive equipment	Helps improve signal stability
Ribbon LVDS Cable	Cost-sensitive internal display connection	Simple routing and easy assembly
Mixed Signal + Power Harness	Display modules requiring signal and power	Combines data, power and ground lines

Custom LVDS Pinout and Wiring Configuration

LVDS cable assemblies are often designed according to the specific LCD panel, driver board or control board interface. Yihetai can manufacture LVDS cables based on your pin assignment, sample cable, drawing or wiring table.

Custom Item	Available Options
Pin assignment	Standard or customer-defined pinout
Differential pairs	Matched pair routing for stable signal transmission
Power lines	Integrated power wires if required
Ground wires	Customized grounding and shielding design
Cable length	Short internal cable or longer display connection cable
Connector orientation	Same-side, reverse-side, straight, angled or customized
Labeling	Connector labels, wire labels, QR code or batch tracking

Key Features of Our LVDS Cable Assembly

Custom cable lengths, pinouts and wire configurations for different LCD, monitor and embedded display projects
Compatible with JAE, Hirose, I-PEX, Molex, JST, TE and equivalent connector options
Available in twisted pair, discrete wire, micro-coax and shielded cable structures
Optional foil shielding, braid shielding, ferrite, tape wrapping and strain relief structures
Stable high-speed signal transmission with impedance-controlled wiring structure
Optional overmolding, strain relief, and locking structures for better durability
Suitable for compact, vibration-prone, and long-life electronic applications
100% electrical testing before shipment for continuity, short/open and pinout verification

Technical Specifications

Parameter	Specification
Product Name	Custom LVDS Cable Assembly
Cable Structure	Twisted pair, discrete wire, shielded wire, micro-coax optional
Wire Gauge	Commonly 26–36 AWG, customized by application
Connector Type	JAE FI / FI-RE / FI-X, Hirose DF13 / DF14 / DF19, I-PEX 20142 / 20453, Molex 51146, Dupont, custom connectors
Pin Count	Customized according to panel and board interface
Pitch	0.5 mm / 1.0 mm / 1.25 mm / 2.0 mm / 2.54 mm depending on connector series
Cable Length	Fully customized
Insulation Material	PVC, PE, TPE, PTFE or specified material
Shielding	None, foil, braid, drain wire, conductive tape, ferrite optional
Temperature Range	Typically -20°C to +80°C; higher-temperature materials available
Voltage Rating	Application-specific, depending on wire and insulation selection
Impedance	100Ω ±10%
Processing	Cutting, stripping, crimping, soldering, taping, bundling, overmolding optional
Testing	100% continuity test, short/open test, pinout verification, insulation test, Hi-Pot if required
OEM/ODM	Supported

Applications of Our Custom LVDS Cable Assemblies

Custom LVDS cable assemblies are widely used in electronic devices that require stable, high-speed signal transmission between LCD panels, main boards, control boards and display modules.

They are commonly used in:

Application	Typical Products
LCD Displays	LCD monitors, touchscreens, embedded display modules
Industrial Equipment	HMI panels, industrial PCs, automation control systems
Medical Devices	Patient monitors, diagnostic equipment, imaging displays
Automotive Electronics	Dashboard displays, center control screens, camera display modules
POS & Kiosk Systems	Payment terminals, ticketing machines, self-service kiosks
Smart Appliances	Home appliance control panels and display modules
Communication Equipment	Network devices, embedded systems, camera modules

Send us your drawing, sample or specification for a fast quotation

Manufacturing Capability

As a leading wire harness manufacturer and cable assembly supplier, Yihetai boasts advanced facilities for LVDS cable assembly production, handling prototypes to high-volume runs.We operate advanced wire processing equipment including automatic cutting, crimping, soldering, and overmolding machines to ensure precision and efficiency.

Our in-house production covers the entire process from material selection, wire extrusion, assembly, and final testing, enabling us to deliver consistent quality and flexible production capacity.

From prototype development to mass production, we support fast turnaround. Typical lead time for prototypes is 5–7 days, and mass production within 3–4 weeks.

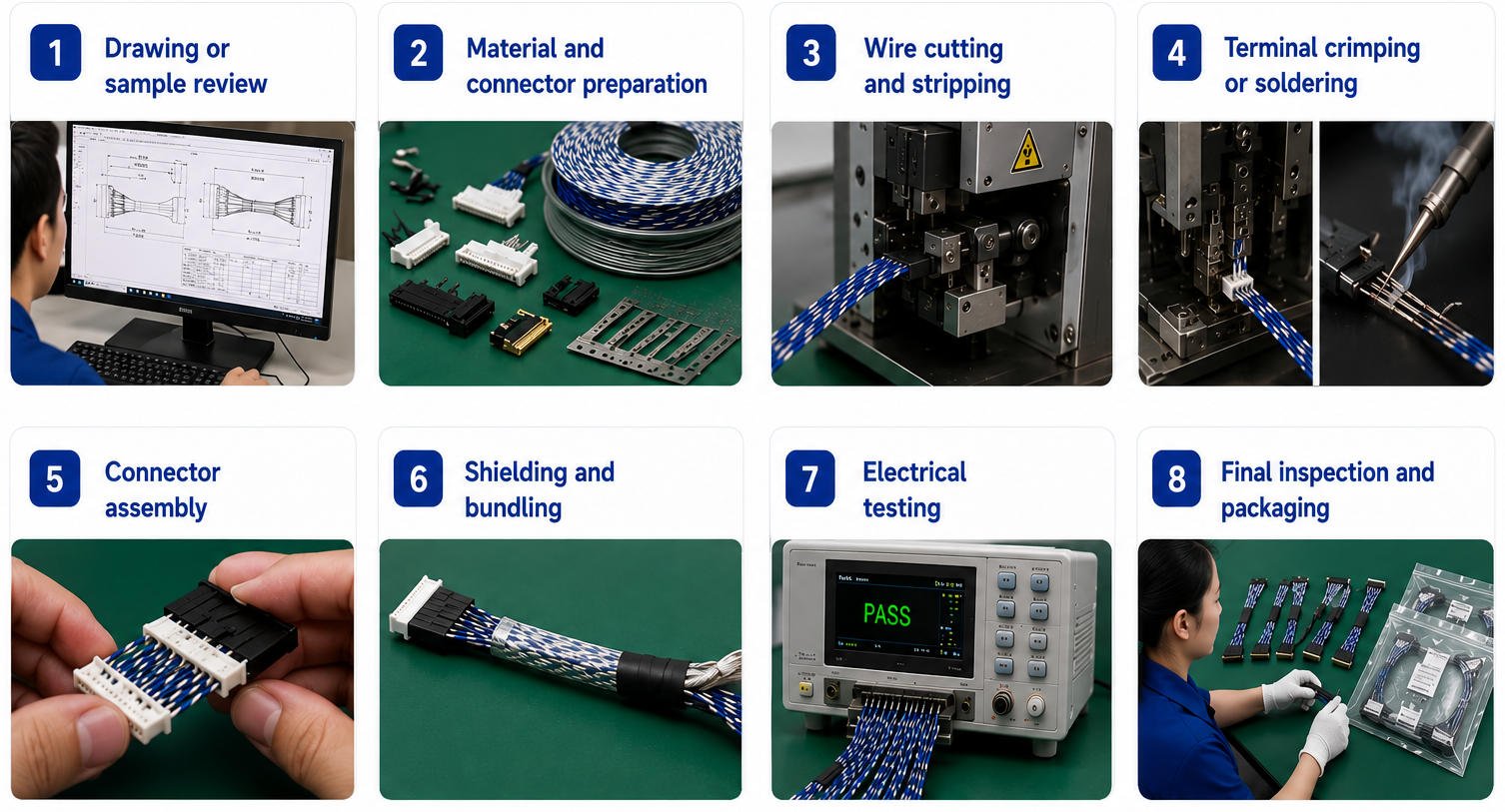

LVDS Cable Assembly Manufacturing Process

Drawing or sample review
Material and connector preparation
Wire cutting and stripping
Terminal crimping or soldering
Connector assembly
Shielding and bundling
Electrical testing
Final inspection and packaging

Quality Control for Every LVDS Cable Assembly

Each LVDS cable assembly is manufactured under strict process control. We check wire sequence, connector assembly, crimping quality, continuity, insulation resistance, withstand voltage, appearance and dimensions before shipment.

Inspection items include:

Common LVDS Cable Problems We Help Customers Solve

Yihetai helps customers solve common LVDS cable problems through custom design support, accurate pin assignment, reliable connector assembly, shielding options and electrical testing.

1.Display Flickering

Caused by unstable connection, poor contact or incorrect assembly.
Our Solution: Reliable connector assembly, accurate wiring and electrical testing.

3.Poor Shielding & EMI Interference

Poor shielding may affect high-speed signal transmission.
Our Solution: Custom foil shielding, braided shielding, drain wire and grounding design.

2.Wrong Pin Assignment

Incorrect wire sequence may cause display failure or abnormal images.
Our Solution: Built according to your drawing, sample or pinout diagram.

4.Connector Mismatch

Different LCD panels and mainboards require different connector types.
Our Solution: Support for I-PEX, JAE, Hirose, Molex, Dupont and equivalent connectors.

Why Choose Yihetai for Custom LVDS Cable Assemblies?

1.Strong Experience in Custom Wire Harness Manufacturing

Yihetai has been manufacturing custom wire harnesses and cable assemblies for more than 23 years, serving applications across automotive, industrial electronics, new energy, medical, aerospace, lighting, home appliances and building automation.

2.Wide LVDS Connector Capability

Our product range already covers LCD monitor LVDS and IPEX wire harnesses, including JAE FI, JAE FI-RE, JAE FI-X, JAE FI-X with lock, HRS DF13, HRS DF14, HRS DF19, Molex 51146, IPEX 20142, IPEX 20453, Dupont 2.0mm and Dupont 2.54mm LVDS harnesses.

3.Built for Signal Stability

LVDS cables often require controlled differential pair routing, proper twisting, grounding and shielding. For high-speed display transmission, we can customize twisted pair wires, micro-coaxial cables, shielding tape, conductive cloth, ferrite cores and grounding solutions according to your design.

4.Flexible Customization

We can manufacture according to your drawing, sample, BOM, connector part number or pin assignment. Custom options include cable length, connector brand, terminal type, wire gauge, color sequence, shielding, label, heat shrink tube, ferrite core and packaging..

5.Quality-Driven Production

Yihetai’s wire harness process includes incoming inspection, cutting, crimping, assembly, bundling, electrical testing, appearance inspection, final inspection and packaging. Testing items include continuity, insulation resistance, withstand voltage, appearance and size inspection.

How to Order a Custom LVDS Cable Assembly

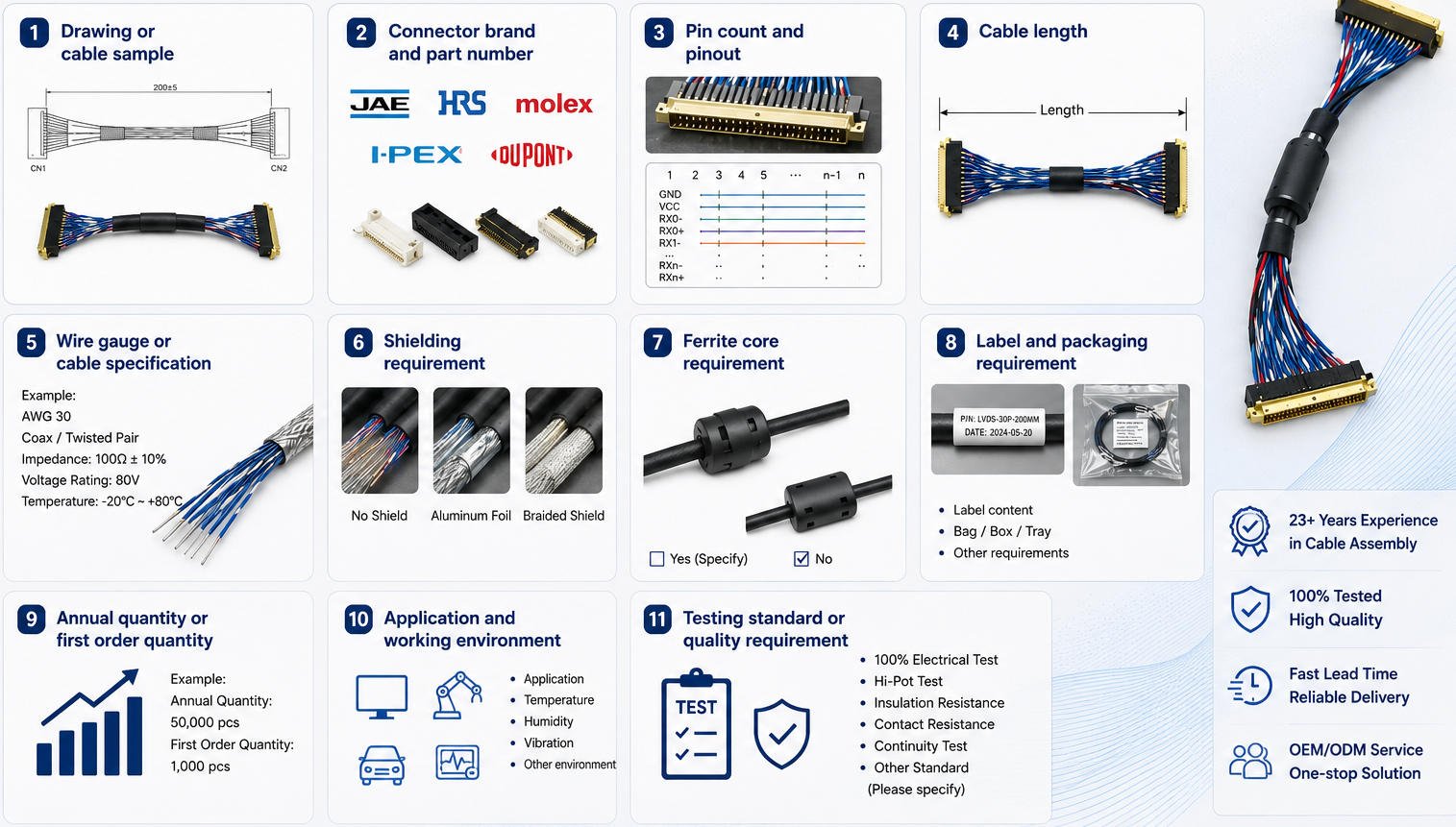

Supporting SubheadingTo help us quote accurately, please send the following information:

Frequently Asked Questions

Can you make LVDS cable assemblies based on our drawing or sample?

Yes. We can manufacture according to drawings, physical samples, connector part numbers, BOM lists or application requirements. This is the most common way we support OEM and custom cable assembly projects.

What information is needed for a quotation?

To quote accurately, it is best to provide cable length, connector models, wire specification, pin assignment, shielding requirement, quantity and application details. If you do not have a complete drawing, photos and basic technical information are also helpful.

Can you use original connector brands or compatible alternatives?

Yes. We can discuss original brand connectors or suitable equivalent parts according to your project, cost target and supply plan.

Can you support shielded or special-structure LVDS cable assemblies?

Yes. We can customize twisted pair structures, shielding, tape wrapping, braid sleeve, heat shrink and other protection or routing processes based on signal and installation needs.

Are your LVDS cable assemblies suitable for both sample orders and mass production?

Yes. We support prototype development, trial orders and ongoing production. This is useful for customers moving from design verification to regular supply.

Can you manufacture Hirose DF13, DF14 and DF19 LVDS cable assemblies?

Yes. Yihetai supports Hirose DF13, DF14 and DF19 LVDS cable assemblies for LCD displays, control boards, industrial monitors and compact electronic devices.

Can you make micro-coax LVDS cables?

Micro-coax LVDS cable structures can be reviewed according to connector type, cable length, pin count and application requirement. Please send your drawing, connector datasheet or sample for evaluation.

Have an LVDS Cable Problem to Solve?

Send us your drawing, sample, connector model or pinout requirement. Yihetai can help you develop a custom LVDS cable assembly solution for your display application.
