Custom RJ45 Ethernet Cable Assembly Manufacturer

Custom Cat5e, Cat6 and Cat6A RJ45 Ethernet cable assemblies for industrial equipment, network devices, automation systems and control cabinets.

Yihetai provides custom RJ45 Ethernet cable assembly solutions according to your drawings, samples, cable specifications and application requirements.Our custom RJ45 Ethernet cable assemblies are widely used in automation equipment, communication devices and industrial wire harness assemblies for reliable data transmission.

What Is RJ45/Ethernet Cable Assembly?

RJ45/Ethernet cable assembly is a customized cable or wire assembly featuring RJ45 connectors for Ethernet networking, enabling high-speed data transmission up to Gigabit speeds. It meets specific electrical, structural, and installation needs like Cat5e, Cat6, or Cat6a standards with twisted pair wiring for reduced interference.

Compared with standard patch cords, a custom RJ45/Ethernet cable assembly can be designed for specific routing space, connector orientation, environmental resistance, cable flexibility, shielding performance, and assembly requirements. This makes it more suitable for OEM equipment, industrial cabinets, machine wiring, panel installations, and special applications where standard network cables do not fit well.

Available RJ45 Cable Assembly Types We Make

1. RJ45 to RJ45 Ethernet Cable Assembly

Custom RJ45 to RJ45 cable assemblies are suitable for network communication, routers, switches, PLC systems, industrial computers, IP cameras and control cabinet wiring.

Available options include:

Cat5e, Cat6, Cat6A cable
Shielded or unshielded structure
Straight or angled RJ45 connector
PVC, PUR or custom jacket material
Standard or overmolded connector
Customized length and color
Labeling and packaging according to customer requirements

2. RJ45 to M12 Industrial Ethernet Cable

RJ45 to M12 cable assemblies are commonly used in industrial automation, sensors, machine vision systems, industrial cameras, PLC control systems and harsh environment communication applications.

Available options include:

RJ45 to M12 D-coded cable
RJ45 to M12 X-coded cable
Shielded industrial Ethernet cable
Waterproof M12 connector
PUR jacket for industrial environments
Customized pinout and cable length

3. RJ45 Pigtail Cable Assembly

RJ45 pigtail cable assemblies are designed for control cabinets, embedded devices, communication equipment and custom wiring systems where one end requires an RJ45 connector and the other end requires open wires, terminals or special connectors.

Available end options:

Open end
Stripped and tinned wires
Ferrules
Ring terminals
Faston terminals
JST, Molex, TE, AMP or custom connectors

4. Overmolded RJ45 Ethernet Cable

Overmolded RJ45 cables provide improved strain relief, better mechanical protection and a cleaner appearance for OEM equipment.

Recommended for:

Industrial control equipment
Security cameras and access control systems
Smart home devices
Medical or diagnostic equipment
Commercial electronics
Repeated plug/unplug applications

5. Panel-Mount RJ45 Cable Assembly

Panel-mount RJ45 assemblies are ideal for devices that require a fixed Ethernet interface on the enclosure or control panel.

Typical designs:

RJ45 female panel mount to RJ45 plug
RJ45 female panel mount to board connector
RJ45 bulkhead connector with custom internal harness
RJ45 with screw mounting, flange or snap-in structure

6. RJ45 Cable Harness with Mixed Connectors

For OEM equipment requiring multiple connection points, Yihetai can integrate RJ45 Ethernet cables into a complete wire harness.

Possible combinations:

RJ45 + USB
RJ45 + DC power cable
RJ45 + JST / Molex / TE / JST-compatible board connector
RJ45 + terminal connector
RJ45 + LED, sensor or switch wiring
RJ45 + power and signal cable harness

Key Features of our RJ45/Ethernet Cable Assembly

Custom lengths from 0.1m to 100m with ±1mm tolerance for precise installations.
Compatible with TE, Amphenol, Molex RJ45 brands and Cat5e to Cat8 ratings.
Multiple gauges (22-26AWG) and insulation like PVC, LSZH, or PE materials.
Stable gigabit Ethernet transmission with low crosstalk and return loss.
High-precision crimping and IDC termination for secure contacts.
Optional foil/braid shielding, waterproof IP67 overmolding available.
Rated for -40°C to +105°C harsh environments and vibration resistance.
100% tested for continuity, hi-pot, and TDR before shipment.

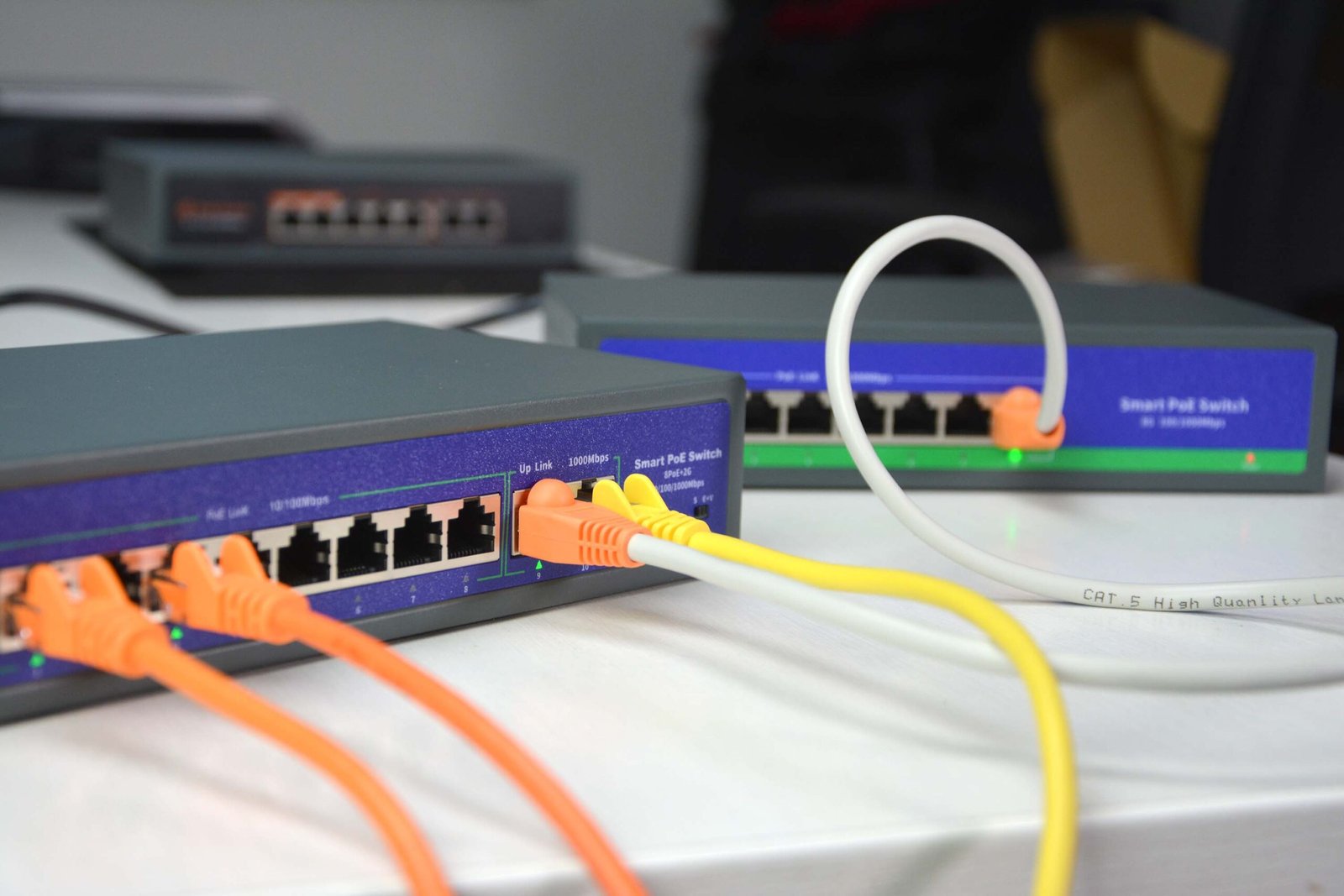

RJ45 Ethernet Cable Assemblies for PoE Applications

Many modern devices use Ethernet cables to transmit both data and power. For PoE, PoE+ and higher-power networked devices, cable construction, conductor size, shielding, contact quality and testing are critical. Yihetai can manufacture RJ45 Ethernet cable assemblies according to your required PoE application, including IP cameras, wireless access points, access control devices, LED control systems, sensors, industrial devices and smart building equipment.

For PoE projects, please share:

Required cable category
Device power requirement
Cable length
Operating environment
Shielding requirement
Connector type
Bend radius or movement requirement
Test standard or acceptance criteria

Cat5e vs Cat6 vs Cat6A Ethernet Cable Assembly

Cable Type	Transmission Speed	Frequency	Common Applications	Recommended Use
Cat5e RJ45 Cable	Up to 1Gbps	100MHz	Routers, switches, office equipment, general network devices	Cost-effective standard Ethernet connection
Cat6 RJ45 Cable	Up to 1Gbps / 10Gbps short distance	250MHz	Industrial equipment, control systems, IP cameras, automation devices	Better signal performance and lower crosstalk
Cat6A RJ45 Cable	Up to 10Gbps	500MHz	High-speed industrial networks, data systems, shielded applications	Best choice for high-speed and stable transmission

Available Cable Types and Custom Options

Yihetai supports a wide range of RJ45 Ethernet cable assembly configurations. Customers can provide drawings, samples, BOM, connector specifications or cable performance requirements, and our engineering and production teams will manufacture the cable assembly accordingly.

Item	Options	Notes
Wire Type	Twisted pair / Shielded cable	Based on data transmission needs
Conductor	Bare copper / Tinned copper	High conductivity options
Wire Gauge	22–26 AWG	Customizable
Length	0.1m – 100m+	Per drawing
Color	Black / Blue / Custom	Branding available
Connector	RJ45 / Shielded / Waterproof	Multi-brand compatible
Terminal	Standard / Gold-plated contacts	Improved signal stability
Jacket Material	PVC / LSZH / PUR	Environmental compliance
Process	Crimping / Overmolding / Shielding	Industrial-grade processing
Testing	100% electrical test	Optional Fluke certification

Yihetai customizes RJ45 Ethernet cable assemblies by length, shielding, connector type, pinout, and waterproof protection. For harsh industrial applications, we also offer IP67 M12 to RJ45 shielded Ethernet cable assembly, custom EMI shielded cable assembly, and custom M8 M12 waterproof cable assembly solutions.

Send us your drawing, sample or specification for a fast quotation.

Engineering Support

From Cable Design to Production-Ready Assembly

Many Ethernet cable failures are caused by poor strain relief, unsuitable cable jacket material, incorrect shielding, weak crimping, unstable connector contact, or designs that do not match the real installation environment. Yihetai supports customers at the design stage to help reduce these risks.

Our team can review:

Cable category and transmission requirement
Shielding and grounding method
Connector structure and orientation
Overmolding and strain relief design
Jacket material and flexibility
Pinout and wiring sequence
Installation space and bending requirement
Testing and inspection standard
Cost optimization for mass production

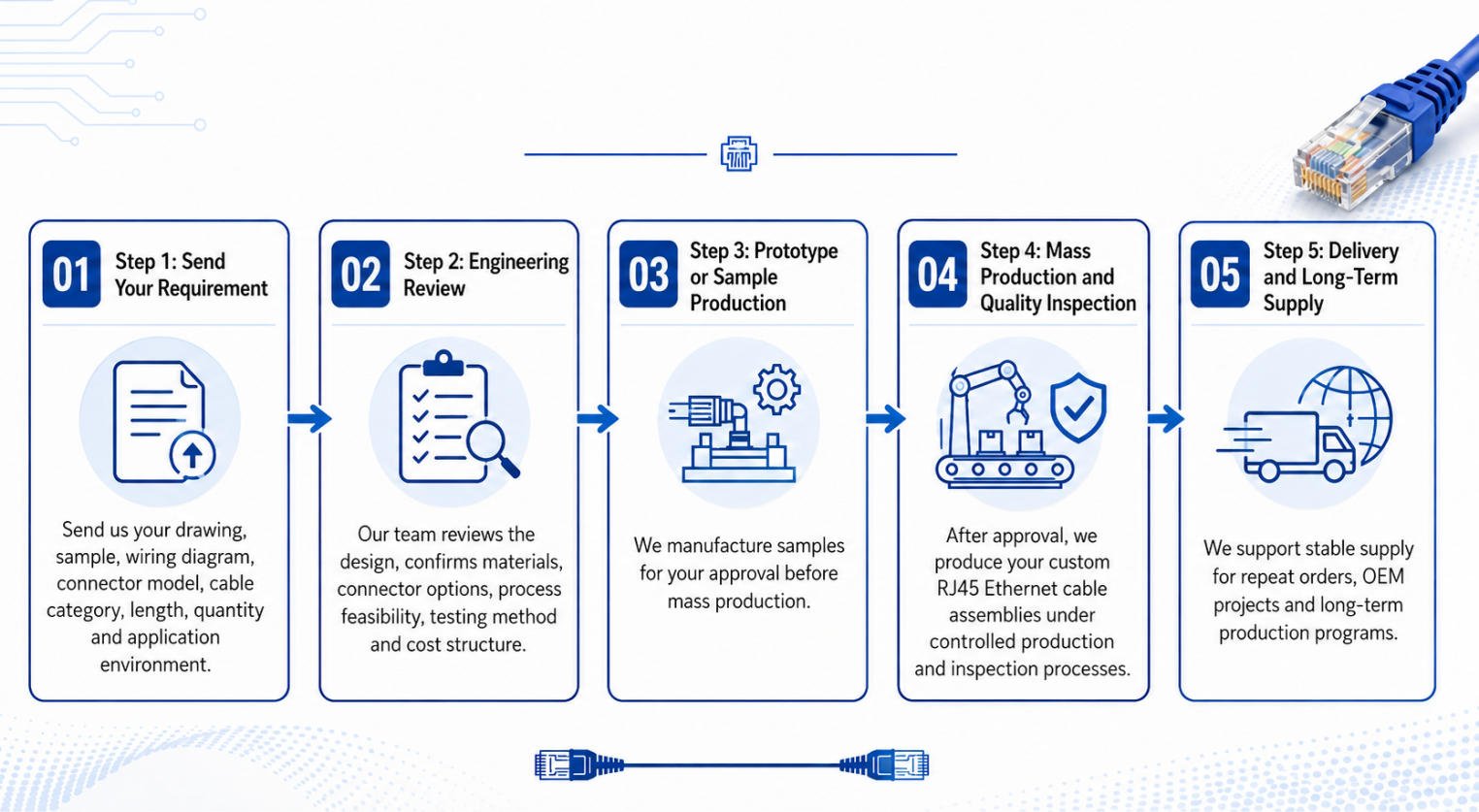

How to Start Your Custom RJ45 Cable Project

Manufacturing Capability

Yihetai has over 23 years of experience in custom cable assembly manufacturing, supported by advanced wire processing equipment, automated crimping machines, injection molding systems, and comprehensive testing facilities.

Our in-house production covers wire extrusion, cutting, crimping, soldering, overmolding, and final assembly, enabling us to control every step of the manufacturing process and ensure consistent product quality.

From material selection to final assembly and testing, all production processes are carried out under strict quality control to ensure stable performance and delivery reliability. Typical lead time for prototypes is 5–7 days, and mass production within 3–4 weeks.

Quality Assurance & Control

Yihetai implements full-process quality control with documented ISO systems, monitoring every step from incoming inspection to final packaging for zero defects in our custom cable assembly output. This ensures every RJ45/Ethernet cable assembly meets or exceeds specs. We hold ISO 9001:2015, UL, and IATF 16949 certifications for automotive-grade reliability in our cable assembly manufacturer operations.

Inspection processes include:

Incoming material inspection for wire and connector compliance
Terminal crimp pull test (min 50N force)
Visual and continuity check per T568 standards
High-voltage test (1000V AC for 60s)
Dimensional and fixture inspection for overmold fit
Return loss and NEXT testing for Cat6+ performance
Every harness is delivered with guaranteed electrical integrity and consistent quality across batches.

Why Choose Yihetai

25+ years of cable and wire harness manufacturing experience in Ethernet solutions.

UL, ISO 9001, and IATF 16949 certified production system.

In-house wire processing, connector crimping, and overmolding capability.

Professional OEM and ODM support for custom wiring solutions.

Strong capability for low-volume prototypes and high-volume runs.

Strong engineering team for custom design, RJ45 matching, and DFM reviews

Frequently Asked Questions

What is the difference between Cat5e and Cat6 RJ45 cable assemblies?

Cat5e supports up to 1Gbps at 100MHz, while Cat6 handles 10Gbps at 250MHz with better shielding to reduce crosstalk ideal for high-speed networks

What can be customized in your RJ45 / Ethernet cable assembly?

We can customize cable category, wire gauge, shielding type, cable length, connector type, connector orientation, overmolding, jacket material, color, label and packaging.

Can you make industrial Ethernet cable assemblies such as M12 to RJ45 or panel-mount RJ45 cables?

Yes. We can support different industrial Ethernet structures, including shielded RJ45 cables, M12 to RJ45 assemblies, panel-mount versions and other application-specific cable combinations.

Do you support both small trial orders and mass production?

Yes. Yihetai supports project development from prototype and sample evaluation to stable volume production, depending on your application and sourcing plan.

What information do you need to quote a custom RJ45 Ethernet cable assembly?

For a faster quotation, please send cable type, connector type on both ends, cable length, pinout or wiring standard, shielding requirement, jacket material, application environment, target quantity and any drawings or photos you have.

Can you make shielded RJ45 Ethernet cable assemblies?

Yes. Yihetai manufactures custom shielded RJ45 Ethernet cable assemblies including Cat5e, Cat6 and Cat6A types. We support custom cable length, shielding, overmolding, connector types and OEM/ODM production for industrial applications.

Can you support PoE Ethernet cable assemblies?

Yes. We can manufacture RJ45 Ethernet cable assemblies for PoE devices such as IP cameras, access control systems, wireless access points, smart building devices and industrial equipment. Please provide the cable length, power requirement, cable category and operating environment.

Looking for a reliable RJ45 / Ethernet Cable Assembly manufacturer?

Send us your drawing, sample or technical requirements, and our team will provide a customized wire harness or cable assembly solution for your project.
