Custom IP67 M12 to RJ45 Shielded Ethernet Cable Assembly

Yihetai manufactures custom M12 to RJ45 shielded Ethernet cable assemblies for industrial automation, PLC systems, machine vision, robotics and outdoor control equipment.

Built with waterproof M12 connectors, shielded Ethernet cable and RJ45 interfaces, our assemblies help provide stable data transmission in harsh environments with moisture, dust, vibration, oil and EMI interference.

Custom cable length, connector type, M12 coding, shielding, jacket material and electrical testing are available.

What Is an IP67 M12 to RJ45 Shielded Ethernet Cable Assembly?

An IP67 M12 to RJ45 shielded Ethernet cable assembly is a custom industrial network cable used to connect field devices with M12 Ethernet interfaces to RJ45 ports on switches, controllers, gateways, industrial PCs or control cabinets.

The M12 connector side is commonly used in industrial field environments where dust, moisture, vibration and mechanical stress may exist. The RJ45 side is usually connected inside a control cabinet, industrial switch, PLC, HMI, gateway or communication module.

Compared with standard RJ45 Ethernet cables, an M12 to RJ45 industrial Ethernet cable assembly requires more attention to connector coding, cable category, pair assignment, shielding structure, waterproof sealing, RJ45 wiring sequence and shield continuity.

For equipment that uses standard network interfaces, Yihetai also manufactures custom RJ45 Ethernet cable assemblies with different cable categories, shielding structures, lengths and overmolding options.

Why M12 Connectors Are Used In Industrial Ethernet

Traditional RJ45 connectors are widely used inside control cabinets, industrial switches and office network equipment. However, when Ethernet cables are installed near field devices, machines, sensors, cameras or outdoor equipment, the connection may be exposed to moisture, dust, vibration, pulling force and mechanical stress.

M12 connectors are commonly used in industrial Ethernet applications because they provide a more rugged and secure connection for harsh environments. Compared with a standard RJ45 plug, an M12 connector offers threaded locking, waterproof sealing and stronger mechanical protection.

1.Waterproof Sealing
M12 connectors can support IP67-rated waterproof protection when properly mated and assembled. This helps protect the connection from dust, moisture, water splash and outdoor installation conditions.

2.Vibration Resistance
The threaded locking structure helps prevent accidental disconnection caused by machine vibration, movement or cable pulling. This is especially important for automation equipment, robotics and field-mounted devices.

3.Rugged Construction
M12 connectors are designed for industrial environments where cables may be installed near motors, drives, sensors, moving equipment or outdoor control boxes. The connector body, molded strain relief and cable jacket can be selected according to the working environment.

4.Long-Term Reliability
For factory automation, machine vision, PLC systems, remote I/O modules and outdoor equipment, stable Ethernet communication is important. M12 connectors help improve connection reliability where standard RJ45 connectors may not provide enough environmental protection.

This is why many industrial Ethernet systems use an IP67 M12 connector on the field side and an RJ45 connector on the cabinet or switch side. Yihetai can customize M12 to RJ45 shielded Ethernet cable assemblies according to your M12 coding, cable category, RJ45 wiring sequence, shielding structure and installation environment. For sensors, actuators, I/O modules and field devices, Yihetai can also provide custom M8/M12 waterproof cable assemblies for power, signal and data connection in harsh environments.

M12 D-Coded Cat5e vs M12 X-Coded Cat6A Selection Guide

M12 Ethernet connectors are available with different coding structures for different network requirements. The two most common types for industrial Ethernet are D-coded and X-coded connectors.

M12 Ethernet Type	Cable Category	Pin Structure	Typical Use
M12 D-coded	Cat5e	4-pin / 2-pair	PROFINET, EtherNet/IP and 100M industrial Ethernet
M12 X-coded	Cat6A	8-pin / 4-pair	Gigabit or higher-speed industrial Ethernet applications
M12 to RJ45	Cat5e / Cat6A	M12 to shielded RJ45	Field device to control cabinet or switch connection
Shielded Industrial Ethernet Cable	Cat5e / Cat6A	Twisted pair with shielding	EMI-sensitive automation environments

M12 D-coded Cat5e cable assemblies are commonly used for industrial Ethernet communication in automation systems. M12 X-coded Cat6A cable assemblies are selected when higher data transmission performance is required.

Before production, the cable category, M12 coding, RJ45 wiring sequence, pair assignment and shielding structure should be confirmed according to the device interface and network requirement.

Cat5e vs Cat6A Ethernet Cable Selection

Choosing the right Ethernet cable assembly depends on the required data rate, transmission distance, installation environment, EMI exposure and equipment interface. For general industrial communication, Cat5e may be sufficient. For higher bandwidth devices, machine vision systems, industrial computers or Gigabit networks, Cat6 or Cat6A cable assemblies are often preferred. In environments with strong electromagnetic interference, such as areas near motors, inverters, drives or high-current power cables, shielded Cat6A or Cat7 cable assemblies may provide better signal stability and noise protection.

Yihetai can customize Ethernet cable assemblies according to your application, including cable category, shielding structure, connector type, cable length, jacket material, overmolding, strain relief and testing requirements.

Ethernet Type	Typical Application
Cat5e	General Industrial Communication
Cat6	Higher Bandwidth Applications
Cat6A	Gigabit Industrial Networks
Cat7	Special High EMC Environments

M12 to RJ45 Pinout & Wiring Sequence

For M12 to RJ45 Ethernet cable assemblies, pinout accuracy is critical. A wrong pair assignment or RJ45 wiring sequence may cause communication failure, unstable data transmission or device connection errors.

Yihetai can manufacture M12 to RJ45 cables according to customer pinout drawings, T568A, T568B, straight-through wiring, cross wiring or project-specific wiring requirements.

Design Item	Why It Matters
M12 Pin Assignment	Defines signal pair connection on the M12 side
RJ45 Wiring Sequence	Must match T568A, T568B or customer-specific wiring
Pair Matching	Important for Ethernet signal stability
Shield Connection	Helps maintain EMI protection
D-coded / X-coded Difference	Different coding types use different pin arrangements
Straight / Cross Wiring	Should follow device communication requirement
Wire Sequence Test	Prevents communication failure before shipment
Approved Pinout Drawing	Helps ensure batch consistency

For industrial Ethernet applications, we recommend providing the required pinout table, existing cable sample or device connector datasheet before quotation.

Shielding & Grounding Design for Industrial Ethernet

M12 to RJ45 Ethernet cables are often installed near motors, servo drives, inverters, switching power supplies and high-current cables. In these environments, shielding and grounding design can affect data stability and communication reliability.

Shielding Design	Purpose
Shielded Twisted Pair	Supports Ethernet signal stability
Foil Shield	Helps reduce external noise
Braided Shield	Improves EMI protection and mechanical durability
Drain Wire	Supports shield grounding
Foil + Braid Shield	Provides stronger EMI protection for selected applications
Shielded RJ45 Plug	Maintains shielding at the RJ45 side
M12 Metal Shell Connection	Helps improve shield continuity
360° Shield Termination	Supports stable industrial Ethernet performance
Shield Continuity Test	Confirms shield path according to project requirement

Shielded Ethernet cable performance depends not only on the cable shield, but also on connector shielding, grounding method, shield termination and installation routing. For EMI-sensitive equipment, Yihetai can also manufacture custom EMI shielded cable assemblies with foil shield, braid shield, drain wire and connector grounding options.

IP67 M12 Field Side vs RJ45 Cabinet Side Design

One important feature of this cable assembly is that the two ends usually work in different environments. The M12 side is often used near field equipment, while the RJ45 side is connected inside a cabinet or switch.

Cable Side	Design Focus
M12 Side	IP67 waterproof structure, threaded coupling, overmolding and vibration resistance
RJ45 Side	Shielded RJ45 plug, boot protection, cabinet or switch connection
Cable Body	Cat5e / Cat6A twisted pair, shielding and jacket material
Transition Area	Strain relief, overmolding, label and routing direction
Installation Layout	Field device outside cabinet to RJ45 interface inside cabinet

In many industrial installations, the M12 side is used near sensors, cameras, I/O modules or field devices where dust, moisture and vibration may exist. The RJ45 side is connected to an industrial switch, PLC, controller or gateway inside the control cabinet.

This makes connector matching, cable routing, shielding, strain relief and final inspection important for reliable installation.

Industrial Ethernet Protocol & Application Compatibility

M12 to RJ45 shielded Ethernet cable assemblies are widely used in industrial network systems. The cable structure should be selected according to communication protocol, data speed, installation environment and device interface.

Network / Application	Cable Design Focus
PROFINET	M12 D-coded Cat5e, shielded twisted pair and correct pair assignment
EtherNet/IP	Industrial Ethernet wiring, RJ45 sequence and shield continuity
Industrial Ethernet Switches	RJ45 cabinet-side connection and cable routing
Machine Vision Cameras	Stable data transmission, shielding and flexible installation
Remote I/O Modules	M12 field connection, waterproof design and labeling
PLC Systems	Cabinet wiring, cable length and reliable connector matching
Gateways & Controllers	Device interface matching and shielded Ethernet structure
Outdoor Control Boxes	IP67 M12 side, jacket durability and strain relief

Cable Jacket, Overmolding & Protection Options

Industrial Ethernet cables may be installed in control cabinets, outdoor equipment, automation machines or moving systems. Cable jacket and protection method should be selected according to the application environment.

Option	Purpose
PUR Jacket	Better abrasion resistance, oil resistance and flexibility
PVC Jacket	General industrial or cabinet wiring applications
TPE / TPU Jacket	Flexible and durable jacket options
LSZH Jacket	Selected applications requiring low-smoke halogen-free material
Overmolded M12 Connector	Improves sealing, strain relief and appearance
RJ45 Boot Protection	Helps protect RJ45 latch and cable exit
Heat Shrink Label	Supports identification and assembly
Cable Label / Barcode	Supports part number, traceability and installation
Braided Sleeve	Adds abrasion protection and cable organization

For M12 to RJ45 cables used near moving equipment, cable flexibility and strain relief should be reviewed before production.

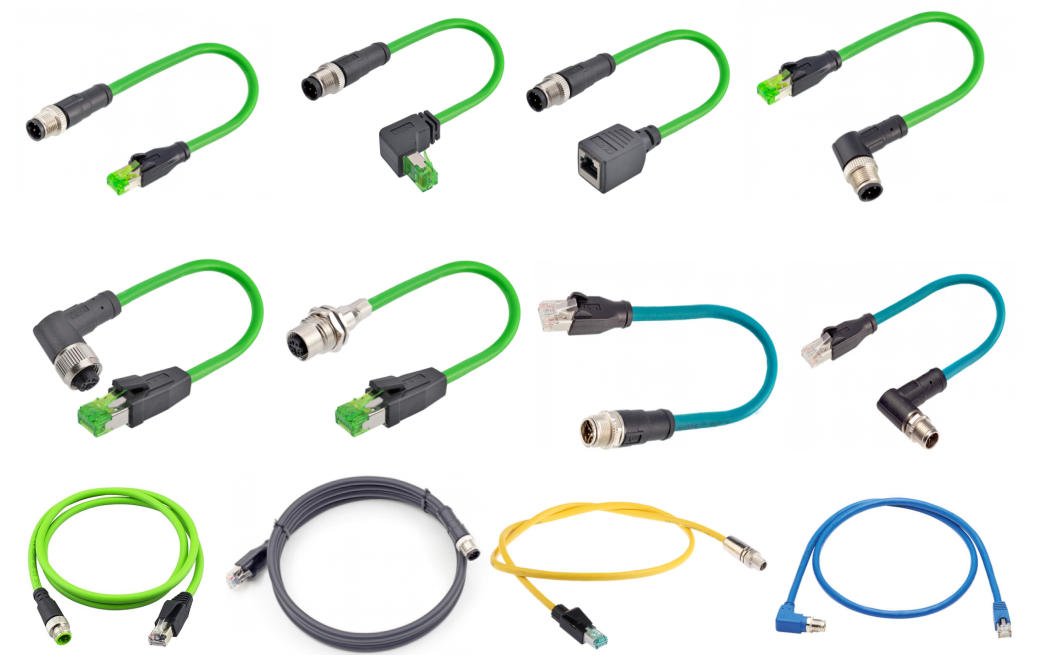

M12 to RJ45 Cable Assembly Types We Manufacture

Yihetai can manufacture different M12 to RJ45 shielded Ethernet cable structures according to customer drawings, samples and application requirements.

Key Features of our IP67 M12 to RJ45 Shielded Ethernet Cable Assembly

M12 D-coded Cat5e and M12 X-coded Cat6A options
IP67 M12 connector side with overmolded waterproof structure
Shielded RJ45 plug, molded RJ45 or RJ45 with boot protection
Custom cable length, cable jacket, pinout and wiring sequence
Shielded twisted pair, foil shield, braid shield and drain wire options
Shield continuity and grounding design according to customer requirement
Straight, right-angle and panel-mount M12 structures available
Suitable for industrial Ethernet, PROFINET, EtherNet/IP, PLC and machine vision systems
Prototype samples and mass production supported
Wire sequence, continuity, shield continuity and visual inspection before shipment

Typical M12 to RJ45 Shielded Ethernet Cables Applications

Custom IP67 M12 to RJ45 shielded Ethernet cable assemblies are widely used in industrial network systems where reliable data transmission, waterproof field connection and EMI protection are required.

1.Industrial Automation
M12 to RJ45 Ethernet cables for automation machines, industrial networks and equipment communication.

2.PLC & Control Cabinets
Custom M12 to RJ45 cables for connecting field devices to PLCs, switches and control cabinets.

3.Industrial Ethernet Switches
Shielded Ethernet cable assemblies for industrial switches, gateways and network modules.

4.Machine Vision Systems
M12 Ethernet cables for industrial cameras, vision controllers and imaging equipment.

5.Robotics & Motion Control
Shielded Ethernet cables for robots, motion systems and automation devices.

6.Remote I/O Modules
IP67 M12 to RJ45 cables for distributed I/O modules and fieldbus communication.

7.Outdoor Control Boxes
Waterproof M12 side cables for outdoor cabinets, control boxes and rugged equipment.

8.Transportation & Energy Monitoring
Industrial Ethernet cables for railway, energy systems, monitoring equipment and harsh environments.

Application-Specific Design Notes

Different M12 to RJ45 Ethernet applications require different cable category, shielding and connector structures. Yihetai can help review your project and recommend a suitable cable assembly solution.

Application	Design Considerations
PROFINET System	D-coded Cat5e, correct pair assignment and shield continuity
Gigabit Ethernet	X-coded Cat6A, 4-pair cable and stable shielding
PLC Cabinet Wiring	RJ45 side protection, labels and cable routing
Machine Vision	Data stability, EMI protection and connector matching
Outdoor Field Device	IP67 M12 side, overmolding and jacket durability
Robotics	Cable flexibility, strain relief and shield durability
Industrial Switch	RJ45 connector type, cable length and cabinet installation
OEM Equipment	Custom pinout, label, packaging and approved sample control

Manufacturing Capability

Yihetai has in-house manufacturing capability for wire processing, cable cutting, terminal crimping, soldering, shield preparation, connector assembly, overmolding, electrical testing and final packaging. Our company profile shows dedicated wire-processing workshops, wire harness assembly workshops, production equipment, terminal crimping areas, welding zones, testing areas and testing equipment.

For M12 to RJ45 Ethernet Cable Assembly projects, our production team can handle shielded twisted-pair cable processing, M12 connector assembly, RJ45 plug termination, pin assignment control, drain wire treatment, overmolding, labeling and 100% electrical testing. We support both standard industrial Ethernet cable designs and OEM custom wiring solution projects.

Our IP67 M12 to RJ45 Ethernet Cable Quality Control

For industrial Ethernet cable assemblies, correct wiring sequence, shield continuity and connector assembly quality are important for stable network communication.

Yihetai controls M12 to RJ45 cable quality through material verification, connector matching, cable preparation, shield treatment, pinout testing, continuity testing and final visual inspection.

Wire sequence, continuity, shield continuity, insulation resistance, Hi-Pot, dimensional or functional tests can be arranged according to customer drawings, cable category, connector specification and agreed inspection standards.

How to Specify Your Custom IP67 M12 to RJ45 Ethernet Cable Assembly

To help us provide an accurate quotation and suitable cable solution, please send the following information:

Not sure whether you need M12 D-coded Cat5e or M12 X-coded Cat6A? Send us your device interface photo, cable category requirement, data speed, pinout and application environment. Our team can help confirm the suitable M12 coding, RJ45 wiring sequence, shielding and cable assembly structure.

Why Choose Yihetai

Yihetai brings over 25 years of experience in custom wire harnesses, cable assemblies, and OEM cable projects, serving diverse industries with reliable, application-specific solutions

Yihetai helps customers match the right connectors, cable categories, shielding, and pinouts for M12 D-coded, M12 X-coded, RJ45, and other custom cable assembly projects

We support Cat5e, Cat6, and Cat6A shielded Ethernet cable assemblies designed for industrial automation, stable data transmission, and harsh working environments

From cutting, crimping, soldering, and shield treatment to overmolding, assembly, and final testing, every key process is managed in-house for better quality control

Our ISO 9001:2015, UL, and IATF 16949 certified quality systems help ensure consistent production quality and effective process control

From prototypes and trial orders to customized OEM projects and mass production, Yihetai provides flexible manufacturing support to meet different project needs

Frequently Asked Questions

Can Yihetai manufacture custom IP67 M12 to RJ45 Shielded Ethernet Cable Assembly according to my pinout?

Yes. Yihetai can manufacture custom IP67 M12 to RJ45 Shielded Ethernet Cable Assembly according to your drawing, sample, pinout diagram or technical specification. Our engineering team can review the M12 coding, RJ45 wiring sequence, cable category, shielding structure, length, jacket material and testing requirements before production, helping you reduce assembly risk and improve project efficiency.

What is the difference between M12 D-coded Cat5e and M12 X-coded Cat6A cable assemblies?

M12 D-coded Cat5e cable assemblies usually use a 4-pin structure and are commonly used for industrial Ethernet networks such as PROFINET and EtherNet/IP. M12 X-coded Cat6A cable assemblies use an 8-pin structure and are designed for higher-speed industrial Ethernet applications. X-coded Cat6A designs are commonly associated with 10 Gb/s industrial Ethernet transmission.

Can you provide PUR jacket industrial Ethernet cables?

Yes. Yihetai can customize PUR, PVC, TPE, TPU or other jacket materials according to your application. PUR jackets are often selected for industrial Ethernet cable assemblies because they can provide better flexibility, abrasion resistance and durability in demanding environments. Industrial cable suppliers commonly offer PUR-jacketed Cat5e or Cat6A M12 Ethernet cables for automation and moving equipment applications.

What information should I provide for a fast quotation?

For a fast quotation, please provide the cable category, such as Cat5e or Cat6A, M12 coding, connector gender, RJ45 type, cable length, jacket material, shielding requirement, pinout, quantity and application environment. If you have drawings, samples or existing supplier part numbers, you can also send them to us for faster evaluation and price confirmation.

Do you support prototype samples and mass production?

Yes. Yihetai supports prototype samples, small-batch trial orders and mass production for M12 to RJ45 Ethernet Cable Assembly projects. For new designs, we can first make samples for installation testing, communication testing and structure confirmation. After approval, we can move into stable batch production with controlled process documents, inspection standards and traceability records.

Can you make right-angle or panel-mount M12 to RJ45 cables?

Yes. We can support straight M12, right-angle M12, panel-mount M12, molded M12 and custom cable exit directions according to installation space.
