Yihetai manufactures custom car stereo wiring harnesses, car radio harness adapters, plug-and-play audio wiring harnesses, 16-pin and 20-pin car audio connectors, aftermarket stereo harnesses and auto stereo wiring assemblies. Custom connector type, pinout, wire color, label, length and OEM packaging are available.
A car stereo wiring harness is an assembly of wires, terminals, and connectors used to connect a vehicle’s audio system to a car stereo or head unit. It provides organized electrical connections for power, ground, speakers, and other supported audio or control functions.
In factory audio systems, the wiring harness connects the original stereo to the vehicle’s electrical system. When installing an aftermarket stereo, a compatible harness adapter can help connect the new head unit to the existing vehicle wiring without unnecessary modifications.
A typical car stereo wiring configuration includes constant 12V power, switched accessory power, ground, and speaker connections. However, wire colors, connector types, and pin assignments can vary between vehicle models and stereo manufacturers.
Correct compatibility depends on more than connector shape. The connector type, pin position, wire function and circuit assignment must all match the vehicle and stereo requirements.

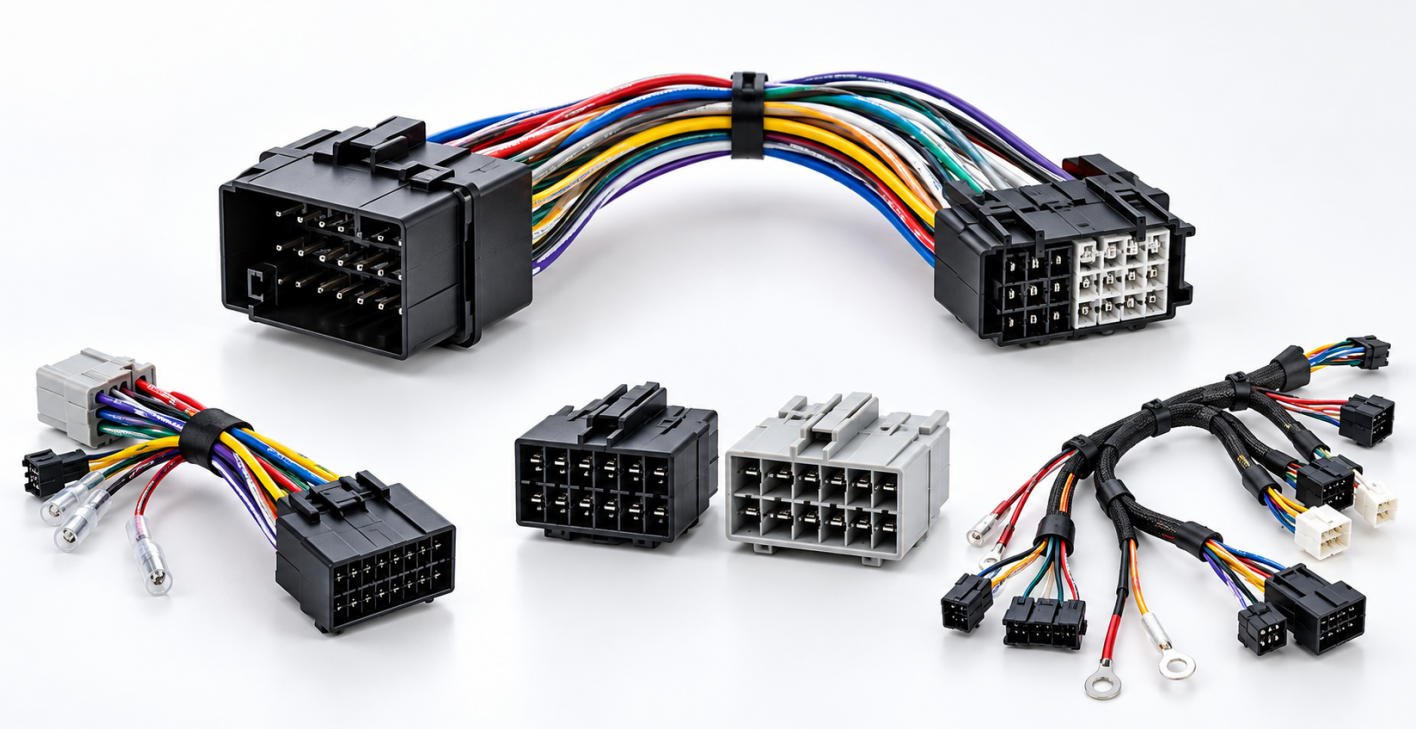

Yihetai manufactures custom car stereo harness connector assemblies with different pin counts, connector housings and terminal configurations for OEM and aftermarket applications.

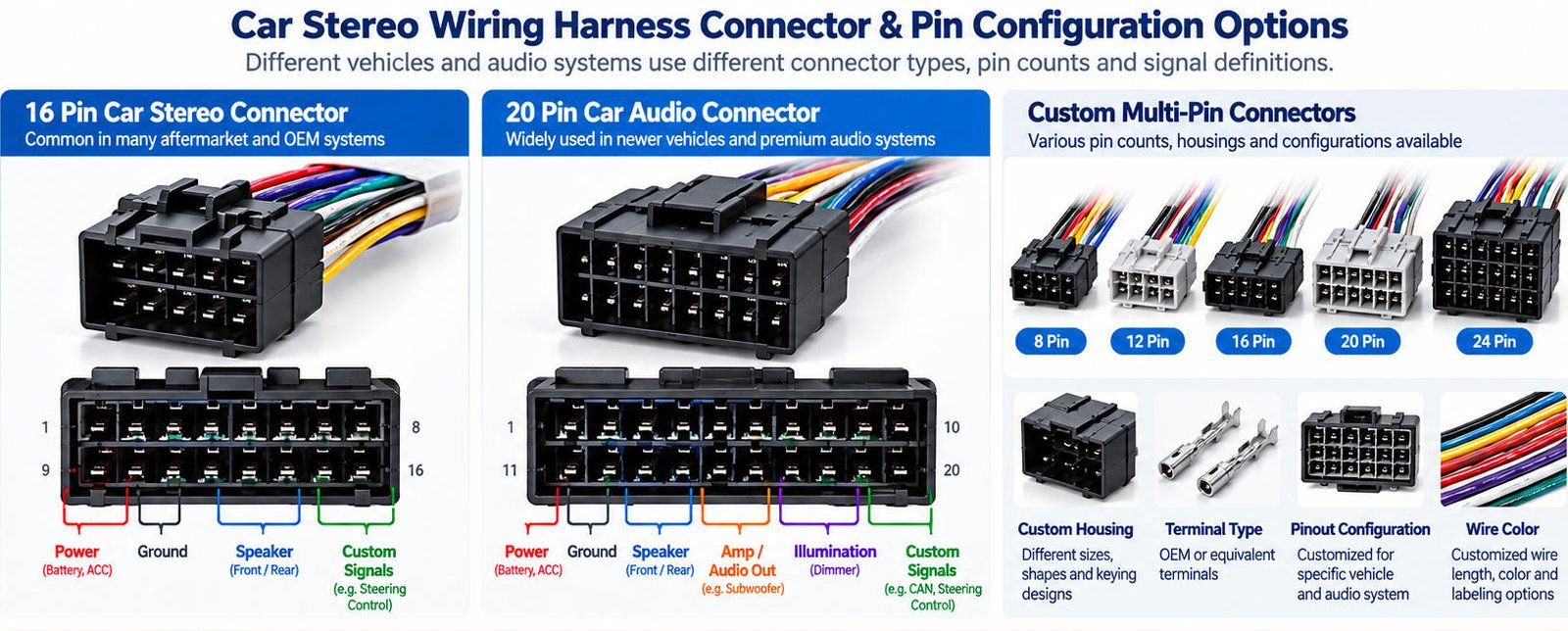

A 16 pin car stereo connector may be used for power, ground, speakers and other radio functions.
However, 16-pin does not mean universal compatibility. Connector housing, keying and pinout can vary between different vehicles and stereo brands.
A 20 pin car audio connector is also commonly used in automotive audio and infotainment systems.
Typical custom options include:
Yihetai can manufacture custom car radio connector and multi-pin automotive harnesses in different configurations, including:
Connector and wiring specifications can be customized according to your project, including:
Important: Pin count alone does not determine compatibility. A 16-pin or 20-pin connector may have different pinouts depending on the vehicle, stereo or equipment manufacturer.
For production, Yihetai recommends confirming the design using a customer drawing, connector specification, approved terminal data or physical sample.
Yihetai manufactures plug and play car stereo wiring harness assemblies based on confirmed vehicle connectors, stereo connectors and wiring definitions.
These pre-terminated harnesses are designed to simplify installation and reduce additional cutting, splicing or field wiring when the correct vehicle and head-unit interfaces are known.

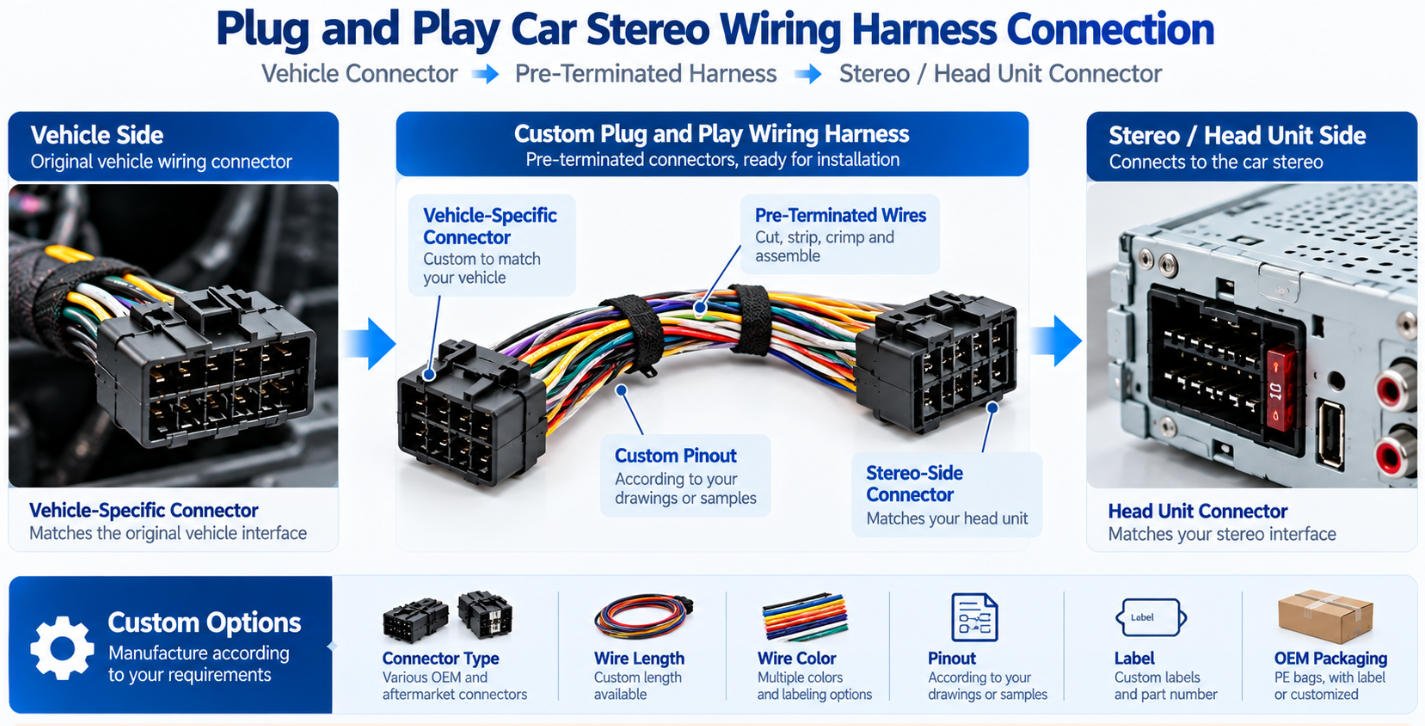

A plug and play radio harness connects the vehicle-side connector to the stereo-side connector using a pre-defined pinout.
Typical structure:
Vehicle Connector → Pre-Terminated Harness → Stereo Connector
This type of car stereo plug adapter can be customized with the required connector housing, terminals, wire length, wire color and circuit assignment.
A vehicle specific stereo wiring harness is designed according to the connector and wiring configuration of a specific vehicle or audio system.
Compatibility may depend on:
For this reason, the connector and wiring definition should always be confirmed before production.
For OEM and aftermarket audio projects, Yihetai can manufacture fully terminated connector-to-connector harnesses according to customer drawings, pinout tables or approved samples.
Custom options include:
Important: “Plug and play” does not mean one harness fits every vehicle. The assembly must be designed around the confirmed vehicle, stereo and electrical interface requirements.
Are car stereo wiring harnesses universal? Not always. While a universal car stereo wiring harness may be used with certain aftermarket audio systems, connector types, pin assignments, and vehicle wiring configurations can vary significantly.
Choosing the correct harness depends on the vehicle, stereo model, connector compatibility, and required audio or control functions.
A universal car stereo wiring harness is typically designed for general aftermarket stereo applications. It may provide standardized wire connections for power, ground, and speakers, but additional wiring or connector adaptation may be required.
Universal harnesses should not be assumed to fit every vehicle or head unit.
A vehicle-specific radio harness adapter is designed to match the connector and wiring requirements of a defined vehicle and stereo configuration.
When properly specified, it can simplify installation and reduce the need to modify existing vehicle wiring. However, some systems may require additional interface modules to retain factory amplifiers, steering wheel controls, or other vehicle functions.
| Feature | Universal Harness | Vehicle-Specific Harness |
|---|---|---|
| Connector Compatibility | Must be checked | Designed for a defined vehicle interface |
| Wiring / Pinout | Requires verification | Based on specified configuration |
| Installation | May require additional wiring | Can simplify installation when compatible |
| OEM Customization | Available by specification | Available by vehicle and equipment requirements |
Before selecting a car stereo wiring harness, confirm the vehicle model and year, head unit model, connector type, wiring pinout, and required functions.
For OEM applications, Yihetai manufactures custom car stereo wiring harness assemblies based on customer-approved drawings, connector specifications, and samples.
A car stereo wiring diagram shows how a head unit connects to the vehicle’s electrical system through a wiring harness. It helps identify power, ground, speaker, and supported control connections.
A basic car stereo wiring harness connects the head unit to several electrical circuits through one or more connectors.
Typical connection groups include:

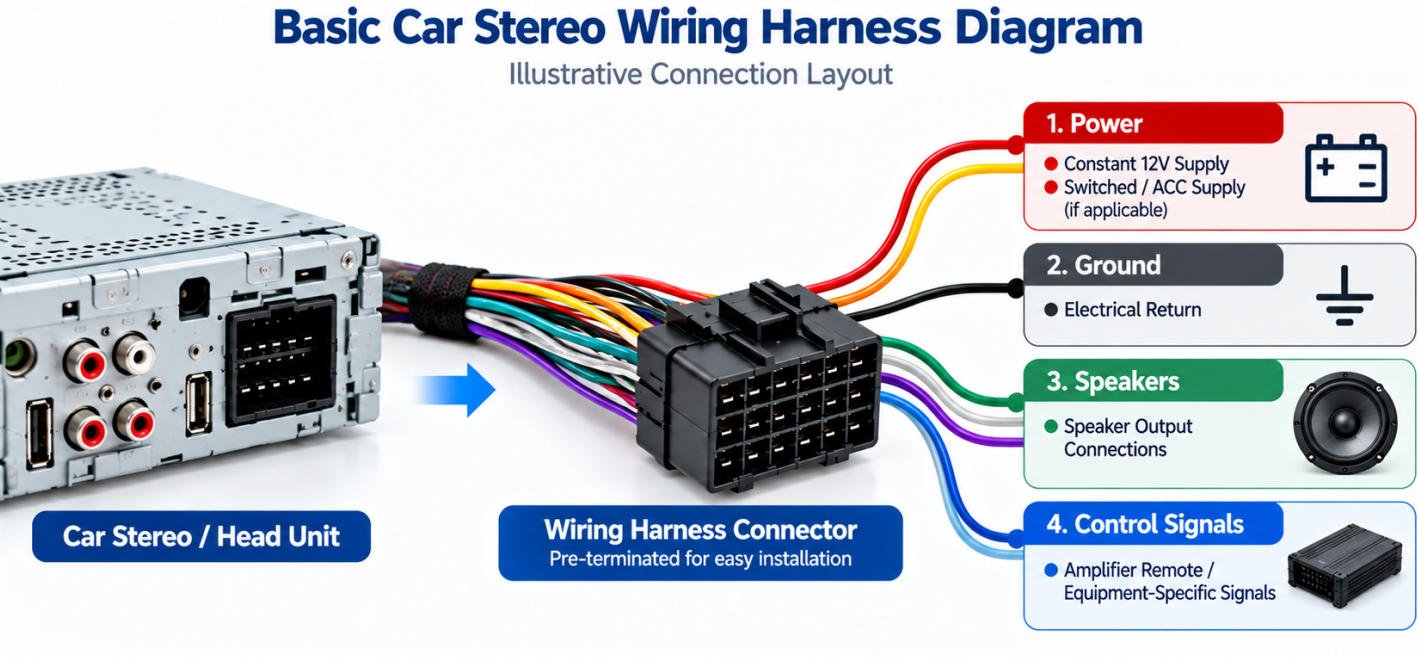

The diagram below illustrates these connection groups. It is not a universal connector pinout.
Car stereo wiring commonly includes constant power, switched power, ground, and speaker connections. The exact wiring arrangement depends on the head unit and vehicle electrical system.
| Circuit | Typical Function |
|---|---|
| Constant 12V Power | Supplies continuous battery power where required |
| Switched / ACC Power | Provides an accessory or ignition-controlled supply where applicable |
| Ground | Provides the electrical return path |
| Speaker Connections | Connect specified audio output channels to speakers |
| Control Signals | Support equipment-specific functions, such as amplifier remote turn-on |
A color code car stereo wiring diagram may help identify wires in certain aftermarket audio systems. However, wire colors are not universal and must be verified against the manufacturer’s documentation
A car stereo harness pinout identifies the function assigned to each connector terminal.
When reviewing a pinout diagram, check:
A matching connector shape does not guarantee a matching pinout.
Yihetai manufactures custom car stereo wiring harness assemblies according to customer-approved wiring diagrams, connector specifications, and pin assignments. Our production process includes electrical testing against the approved harness requirements.
Car stereo wiring color codes help identify common power, ground, speaker, and control connections in aftermarket audio systems. Understanding these colors can make it easier to read a wiring diagram and review a car stereo wiring harness configuration.
However, wire colors are not universal. Always verify the correct connections using the vehicle manufacturer’s documentation, head unit wiring diagram, and approved harness pinout.
Many aftermarket car stereo wiring harnesses use common color conventions to identify electrical functions.

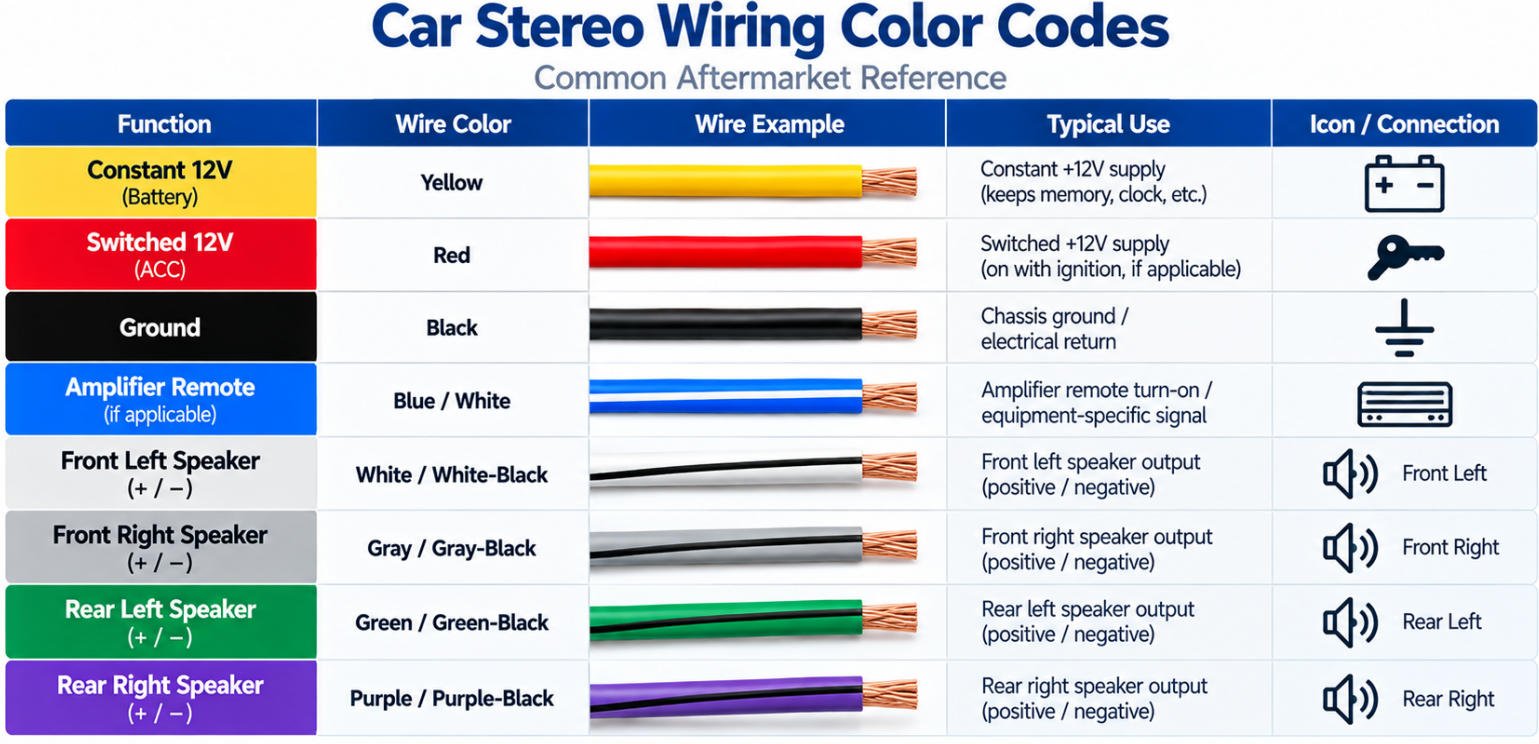

The following car stereo wiring color code chart provides a general reference for typical aftermarket head unit connections.
| Typical Color | Common Aftermarket Function |
|---|---|
| Yellow | Constant +12V Power |
| Red | Switched / Accessory +12V |
| Black | Ground |
| Blue / White | Amplifier Remote Turn-On |
| White / White-Black | Front Left Speaker + / − |
| Gray / Gray-Black | Front Right Speaker + / − |
| Green / Green-Black | Rear Left Speaker + / − |
| Purple / Purple-Black | Rear Right Speaker + / − |
Important: These are common aftermarket wiring conventions, not a universal standard for factory vehicle wiring. Actual wire colors and functions must be confirmed before making electrical connections.
In many aftermarket stereo harnesses, speaker wires are arranged in color-coded pairs. A solid-color wire commonly represents the positive connection (+), while the corresponding wire with a black stripe represents the negative connection (−).
For example, white and white/black may identify the front-left speaker pair, while gray and gray/black may identify the front-right speaker pair.
These conventions can help when reviewing a color code car stereo wiring diagram, but the approved head unit pinout remains the authoritative reference.
Factory radio wiring colors may differ from common aftermarket stereo color conventions. Vehicle manufacturers can use different wire colors, connector designs, and pin assignments depending on the model, production year, and audio system.
A factory wire should never be connected to an aftermarket stereo based on color alone.
For OEM and aftermarket audio projects, Yihetai manufactures custom car stereo wiring harness assemblies with customer-specified wire colors, gauges, connector types, and pin configurations.

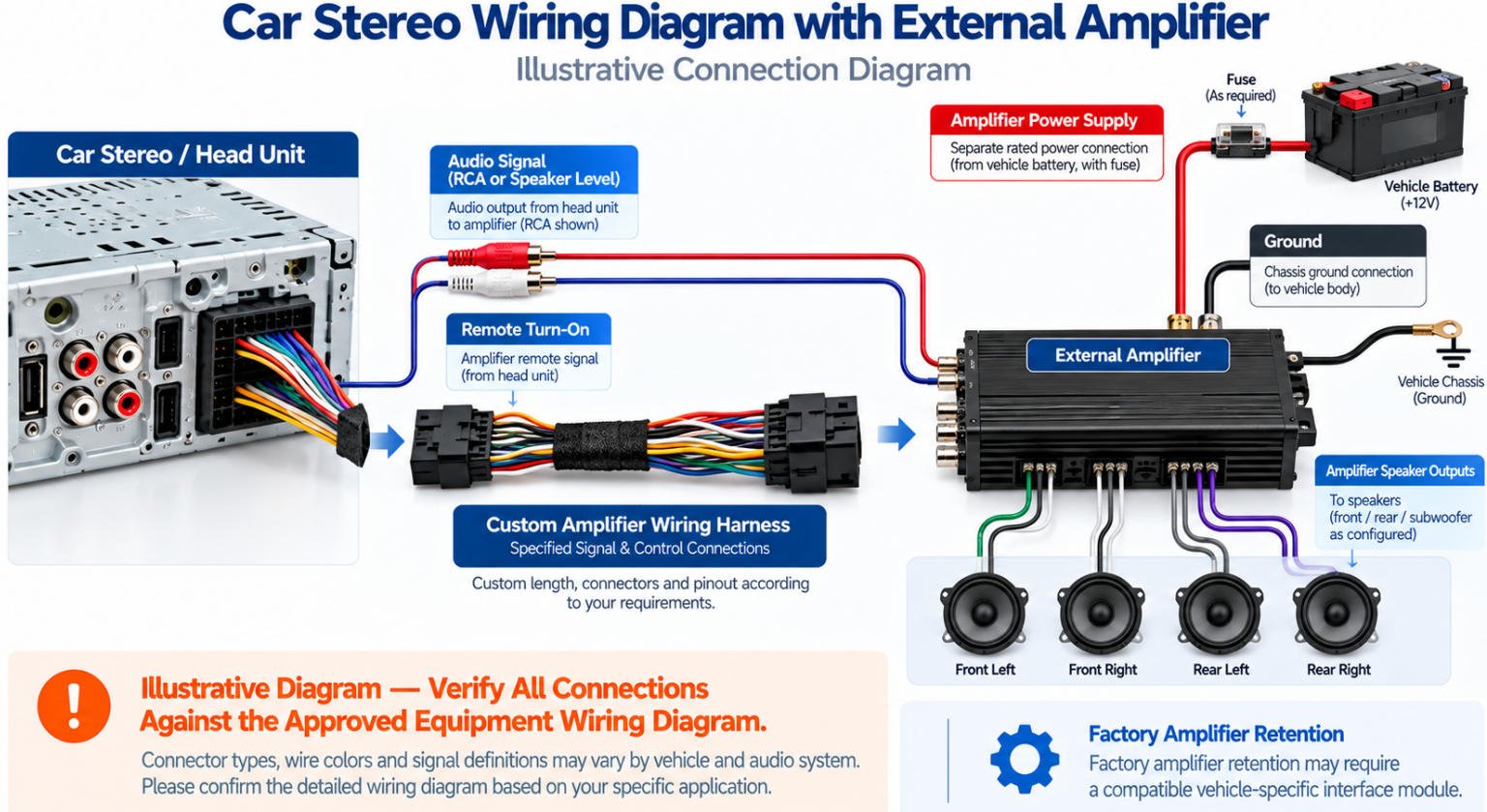

A car stereo wiring diagram with amp shows how the head unit, wiring harness and amplifier are connected within the audio system.
Depending on the vehicle, the system may use an external aftermarket amplifier or an existing factory amplifier.
A typical aftermarket amplifier connection may follow this structure:
Head Unit → Car Stereo Amplifier Wiring Harness → Amplifier → Speakers
The harness may include audio signal wiring, power-related control circuits and customer-specific connections according to the stereo and amplifier design.
Many amplifier systems use a remote turn-on signal from the head unit to switch the amplifier on.
Typical structure:
Stereo Remote Output → Amp Remote Wire → Amplifier
However, the required circuit and wire assignment should always be confirmed from the approved equipment wiring diagram.
When replacing a factory radio, retaining the original amplifier may require a factory amplifier retention harness or additional interface electronics.
Typical structure:
Aftermarket Stereo → Car Audio Amp Wiring Harness / Interface → Factory Amplifier → Speakers
Keeping a factory amplifier does not always mean simply connecting a remote wire. Some vehicles require a dedicated interface module to manage amplifier control, audio signals or vehicle-data communication.
Yihetai can manufacture the cable and harness assembly according to customer-approved connector, pinout and wiring specifications. Active interface electronics should be evaluated separately where required.
Installing an aftermarket stereo may require more than a basic power and speaker connection. Depending on the vehicle and audio system, additional wiring connections may be needed for factory amplifiers, steering wheel controls, and vehicle communication interfaces.
A car audio interface helps connect compatible aftermarket equipment with the vehicle’s existing audio and electronic systems. The required wiring harness and interface components depend on the specific vehicle, head unit, and supported functions.
An aftermarket stereo wiring harness connects a replacement head unit to compatible vehicle wiring or adapter components.
Our OEM manufacturing services help automotive audio equipment suppliers obtain pre-assembled wiring harnesses for their defined applications.
Some vehicles require a dedicated steering wheel control interface module to retain audio control functions when replacing the factory radio.
A steering wheel control interface harness provides the specified electrical connections between the vehicle wiring, compatible interface module, and aftermarket head unit.
Vehicles equipped with factory amplifiers may require additional audio signal connections, amplifier activation circuits, or specialized interface components.
Retaining factory amplifier operation may require a compatible vehicle-specific interface module. A wiring harness alone does not guarantee compatibility or retention of factory audio functions.
Some automotive audio systems use CAN Bus communication for vehicle information, equipment status, or control functions.
A custom stereo wiring harness may include specified connections for a compatible CAN Bus interface or decoder module.
Yihetai manufactures custom car stereo wiring harness assemblies and interface connection cables according to customer-approved drawings, connector specifications, and pinout requirements.
At Yihetai every custom car stereo wiring harness is manufactured according to customer-specific connector, pinout, wire, and assembly requirements.
Vehicle-side / Radio-side / ISO / Multi-pin
Customer-specific circuit assignment
Pigtail / Branch / Full harness
Gauge / Insulation / Color
Marking / Label / Part number

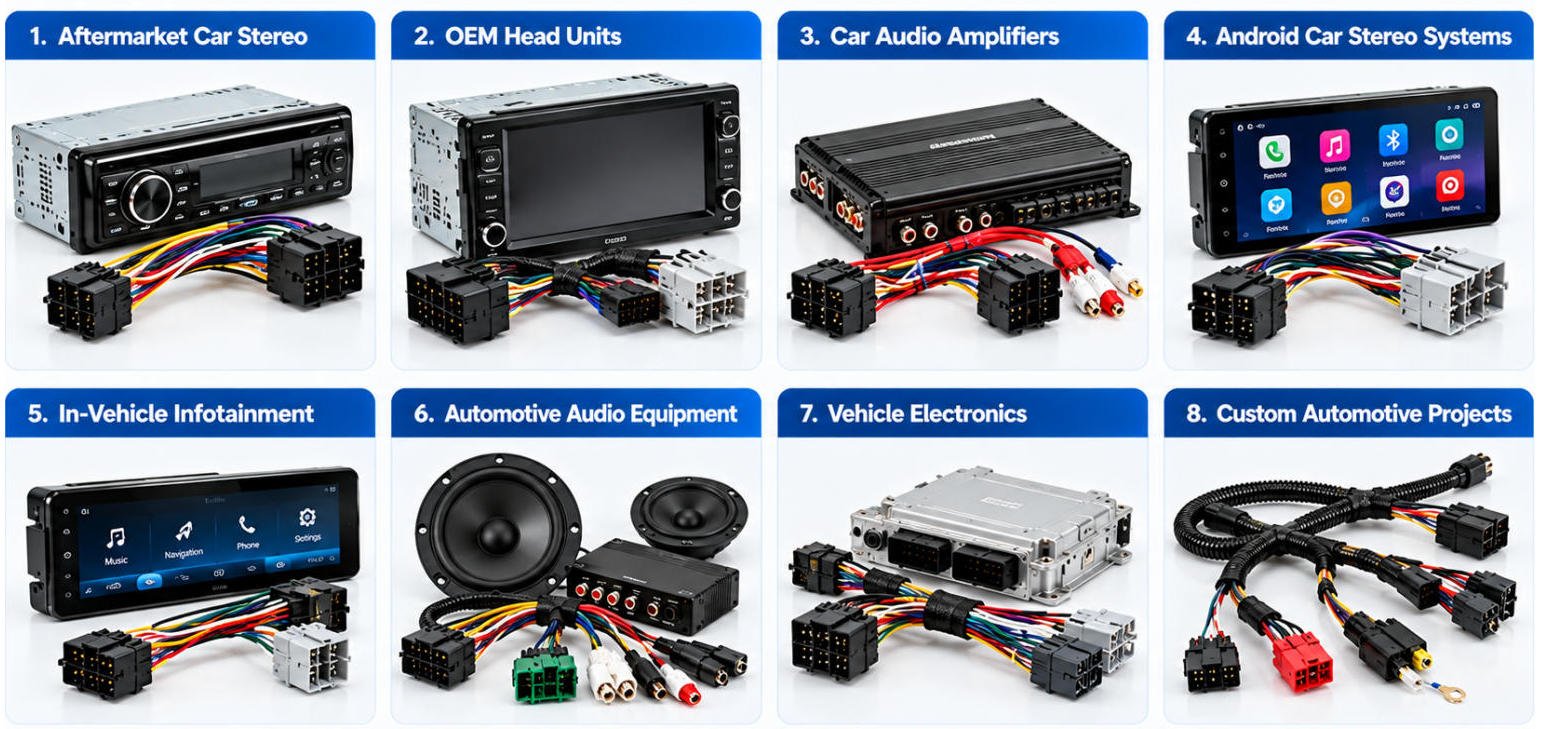

Yihetai manufactures custom car stereo wiring harness assemblies for aftermarket, OEM, infotainment, amplifier, and specialized automotive electronic applications.
With over 25 years of wire harness manufacturing experience, Yihetai provides custom car stereo wiring harness production services for automotive audio equipment manufacturers, OEM suppliers, and aftermarket stereo brands.

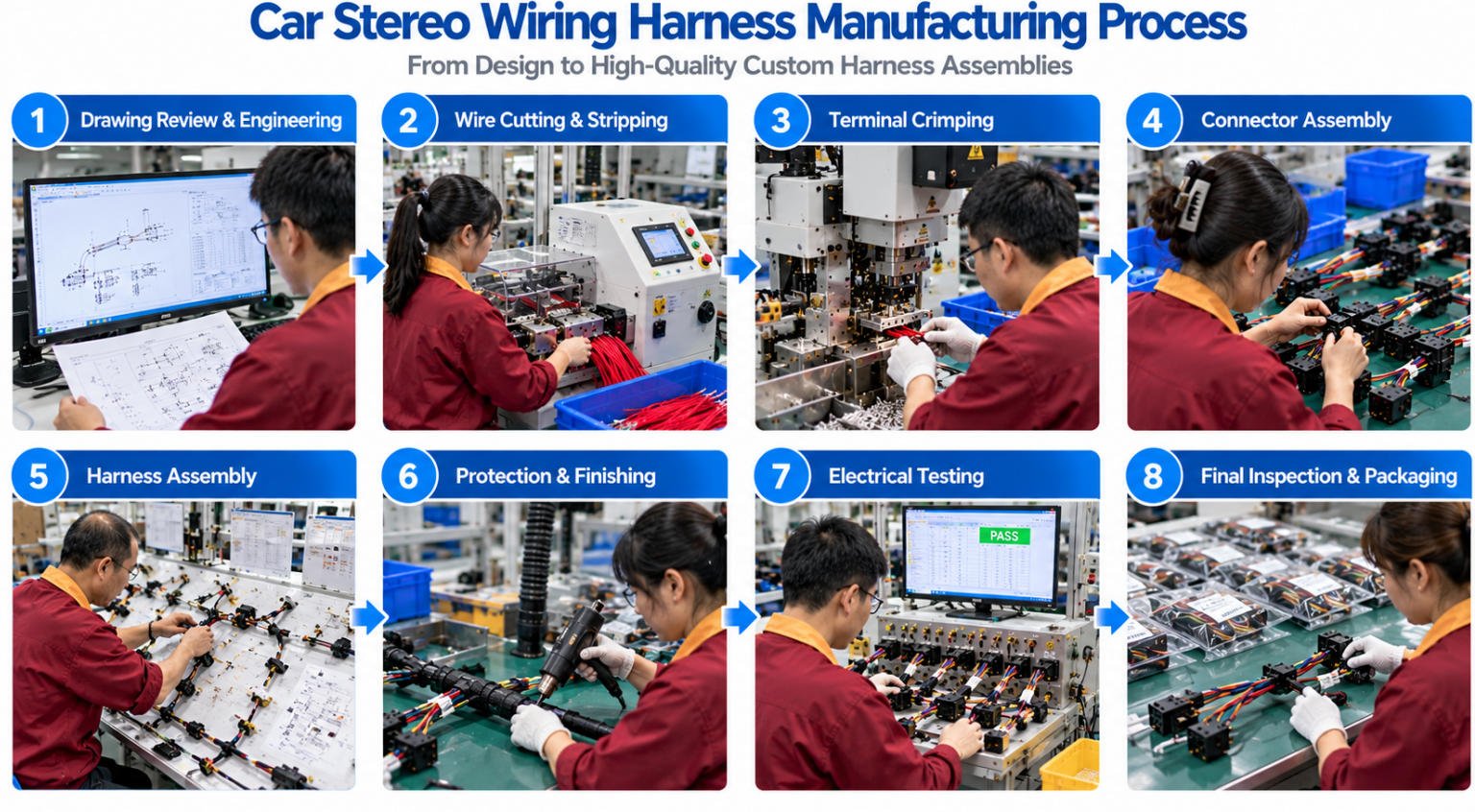

From initial drawing review to final electrical testing, our manufacturing process is designed to deliver consistent quality, reliable connections, and flexible production for prototypes, small batches, and high-volume orders.
Our engineering team reviews customer drawings, connector specifications, wiring diagrams, pinout assignments, and assembly requirements before production.
Wires, connectors, terminals, and protective materials are prepared according to the approved bill of materials (BOM) and project specifications.
Wires are cut to specified lengths and stripped to the required dimensions using suitable processing equipment.
Terminals are crimped onto prepared wires according to the specified terminal types, wire sizes, and applicable process requirements.
Crimped terminals are inserted into the designated connector cavities according to the approved wiring diagram and pinout configuration.
Wires are arranged, bundled, and protected using specified tape, sleeving, conduit, or other approved materials to form the required harness structure.
Completed harness assemblies undergo 100% electrical testing according to approved requirements, including continuity and pin-to-pin connection verification.
Finished assemblies are inspected for connector positioning, wire lengths, labeling, workmanship, and other specified quality requirements before packaging and shipment.
With established production processes, electrical testing, and product traceability, we help customers maintain consistent assembly quality across production orders.
Years of Experience
Electrical Testing
Flexible Production
No. Car stereo wiring harnesses are not universally compatible with all vehicles or head units. Factory connectors and pinouts can vary by vehicle make, model, year, trim, audio package, and amplifier configuration. Although many aftermarket stereos follow common wire color conventions, the correct harness must match the specific vehicle and stereo requirements.
A car stereo wiring harness adapter connects a compatible aftermarket head unit to a vehicle’s existing radio wiring system. It provides the specified connector and circuit connections without requiring a completely new wiring arrangement. Adapter compatibility depends on the vehicle connector, stereo pinout, and any additional audio interface requirements.
A plug and play car stereo wiring harness is a pre-assembled cable harness designed to connect compatible vehicle and stereo connectors with minimal additional wiring work. It can simplify installation when the connectors and pin assignments are correctly matched. Plug-and-play compatibility must be verified for the specific vehicle and head unit.
Car stereo wiring color codes commonly identify power, ground, speaker, and control connections in aftermarket audio systems. For example, yellow often indicates constant 12V power, red indicates switched accessory power, and black indicates ground. However, factory vehicle wiring colors may differ, so connections must always be verified against the approved wiring diagram.
In many aftermarket stereo harnesses, the red wire is the radio ignition switched 12V wire, also called the ACC or accessory power wire. It typically supplies power when the vehicle’s accessory or ignition circuit is active. However, some vehicles use electronic interfaces or different power-control arrangements, so the actual circuit must be verified.
In many aftermarket stereo harnesses, the yellow wire is the car stereo constant 12V wire. It typically provides continuous battery power for functions such as memory retention. This is a common aftermarket convention, not a universal factory wiring standard. Always confirm the connection using the head unit manufacturer’s wiring diagram.
A 16-pin car stereo connector is a multi-pin electrical connector with 16 contact positions. Depending on the head unit design, it may carry power, ground, speaker, and control circuits. However, not all 16-pin connectors share the same shape or pinout. Yihetai manufactures custom 16-pin car stereo wiring harness assemblies according to approved specifications.
A 20-pin car audio connector is a multi-pin connector with 20 contact positions used in certain automotive audio systems. Its electrical functions and pin assignments depend on the equipment design. A 20-pin connector is not automatically compatible with another 20-pin connector. Yihetai supports customer-specific 20-pin connector and wiring harness configurations.
A car stereo wiring harness diagram shows how connector pins and wires correspond to electrical functions such as power, ground, speaker outputs, and control signals. Start by identifying the correct connector orientation and pin numbering, then match each circuit to the approved equipment documentation. Never rely on wire colors or connector appearance alone.
Yes, a compatible wiring harness can provide the required connections between an aftermarket stereo and a factory amplifier. However, factory amplifier integration may also require a vehicle-specific interface module for audio signals, amplifier activation, or vehicle communication. A wiring harness alone does not guarantee that the factory amplifier or other original audio functions will operate correctly.
Send us your connector specifications, wiring diagram, drawing, or sample. Yihetai can manufacture a customized harness assembly according to your approved requirements.
