Choosing the right wire gauge might seem like a small detail but it’s one that can make or break your entire electrical system. I’ve seen projects suffer from mysterious voltage drops, overheating wires, and unreliable signals, all because the wrong wire size was used.
The problem is, many people don’t realize that power and signal circuits have very different requirements. Using a wire that’s too thin for power applications can cause overheating and even fire hazards. On the signal side, the wrong gauge can lead to interference, data loss, or total communication failure.
That’s exactly why I wrote this guide. In this article, I’ll walk you through everything you need to know to confidently select the correct wire gauge for both power and signal applications. Whether you’re an engineer, technician, or just wiring up your own project, this guide will help you make safe, efficient, and cost-effective decisions.
What Is Wire Gauge?
Wire gauge refers to the measurement of a wire’s diameter, and it’s one of the most important factors in determining how much electrical current a wire can safely carry. Selecting the correct wire gauge ensures efficient electrical performance, prevents overheating, and maintains system reliability.
1.Wire Gauge Standards: AWG, SWG, and Metric
There are several systems used globally to define wire gauge, the most common being:
- AWG (American Wire Gauge): Widely used in North America, especially in electrical and electronic wiring. AWG numbers range from 40 (very thin) to 0000 or 4/0 (very thick).
- SWG (Standard Wire Gauge): A British standard, less common today, used mainly in the UK and older systems.
- Metric system: Uses millimeters to indicate the cross-sectional area (mm²) or diameter (mm) of the wire. Common in Europe and international applications.
2.Diameter vs. Current-Carrying Capacity
There is a direct relationship between a wire’s diameter and its ability to carry current:
- Thicker wires (larger diameter) can carry more current without overheating.
- Thinner wires (smaller diameter) have higher electrical resistance, which limits current capacity and can cause voltage drop or heat buildup.
For example, a 10 AWG wire can handle significantly more current than a 20 AWG wire. Choosing the right size helps maintain safety and performance.
3.Gauge Number Logic: Lower Number = Thicker Wire
One of the most misunderstood aspects of wire gauge is that the lower the gauge number, the thicker the wire. This is especially true in the AWG system:
- 12 AWG is thicker than 18 AWG
- 4 AWG is much thicker than 10 AWG
This inverted numbering system is historical and can be confusing, so it’s important to always refer to gauge charts when designing or selecting cables.
What Are the Key Factors That Influence Wire Gauge Selection?
Choosing the correct wire gauge isn’t just about matching a size it’s about balancing electrical performance, safety, environmental conditions, and long-term reliability. Below are the most critical factors you should consider when selecting the appropriate wire gauge for power or signal applications:
A.Current Load (Amperage)
The current load is the amount of electrical current (in amperes) that a wire needs to carry.
- Low-power signal wires, like those used for sensors or data communication, typically carry only milHigh-power wires, such as those used for motors, batteries, or heating elements, may require much larger wires (e.g., 10 AWG or thicker) to handle 20–100 amps or more.
- liamps or a few amps and can use smaller gauges (e.g., 22–28 AWG).
Choosing a wire gauge too small for the current load can lead to overheating, voltage drops, or even fire hazards.
B.Voltage Drop Considerations
Voltage drop refers to the loss of voltage as current travels through a wire due to resistance. It’s especially critical in low-voltage systems, where even small drops can affect performance.
- Longer wire lengths and higher currents increase voltage drop.
- Most applications aim to limit voltage drop to 3% or less of the system voltage.
For example, in a 12V system, a 0.4V drop (3.3%) could already affect device performance. Using thicker wire can help minimize this loss.
Tip: Use a voltage drop calculator or reference chart that factors in wire gauge, load current, and length.
C.Wire Length
The longer the wire, the greater its resistance and the more voltage drop you’ll experience.
To compensate, longer wire runs require thicker gauges.
For example:
- A 14 AWG wire may be fine for 10A over 10 feet
- But you may need 10 AWG or 12 AWG for the same current over 50–100 feet.
Recommendation: Refer to NEC (National Electrical Code) or IEC wire sizing charts that factor in both current and distance.
D.Application Type: Power vs. Signal
The purpose of the wire matters greatly:
- Power wires prioritize current-carrying capacity and thermal safety. They must be sized to prevent overheating and voltage loss.
- Signal wires focus on signal integrity, EMI protection, and impedance matching. In data and communication lines, gauge selection affects signal quality, noise immunity, and bandwidth.
For example, CAT6 Ethernet cables use precise gauge and shielding combinations to meet performance standards.
E.Environmental Conditions
Harsh environments can influence the choice of wire gauge indirectly:
- High temperatures can reduce a wire’s ampacity, requiring thicker wire or heat-resistant insulation (like PTFE or silicone).
- Wet or corrosive areas may require water-blocking jackets or sealed connectors.
- Flexible applications (e.g., robotics or moving machinery) need finely stranded, flexible wire with durable insulation like TPE or PUR.
Also, insulation and jacket thickness may affect the effective outer diameter important in tight installation spaces or bundled harnesses.
In Summary：
| Factor | Influence on Wire Gauge Selection |
| Current Load | Wire gauge must support required amps without overheating |
| Voltage Drop | Longer distances and higher currents require thicker wire to minimize voltage loss |
| Wire Length | Resistance increases with length; thicker wires needed for long runs |
| Application Type | Power cables prioritize ampacity and safety; signal cables focus on signal integrity |
| Environmental Conditions | Temperature, moisture, flexibility, and insulation type affect ampacity and gauge choice |
What Are the Typical Gauge Sizes Used for Common Applications?
Wire gauge selection varies depending on whether the application involves power transmission or signal communication. Below is a breakdown of commonly used wire gauge sizes for power and signal wiring across home, automotive, and industrial environments.

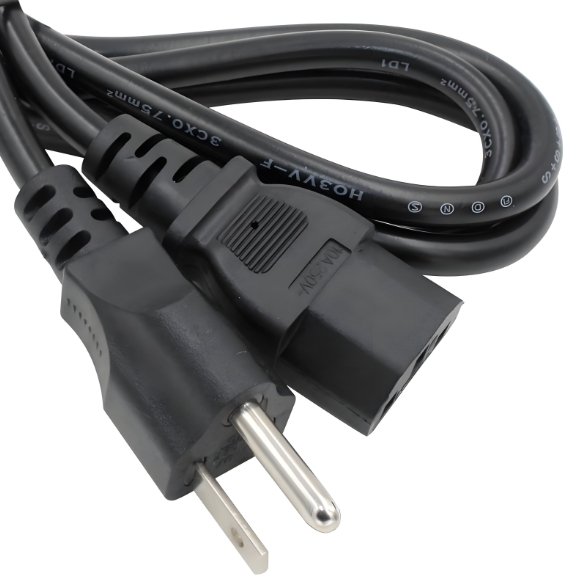

1.Recommended Gauges for Power Lines
Power lines generally carry higher currents and require thicker conductors to ensure safe operation and minimize voltage drop. The gauge selection depends heavily on current load, length, and application environment.
Home Electrical Wiring:
- 14 AWG: Typically used for 15-amp circuits such as lighting outlets or small appliances.
- 12 AWG: Common for 20-amp circuits powering outlets and general-purpose circuits.
- 10 AWG: Used for 30-amp circuits such as electric water heaters or HVAC units.
- 8 AWG or larger: Employed for higher current loads (40 amps and above), e.g., electric ovens, large air conditioners, subpanels.
Note: National Electrical Code (NEC) guidelines specify minimum wire sizes for certain amperages and uses.
Automotive Power Wiring:
- 16 AWG or 14 AWG: Typical for low to moderate power circuits such as lighting, sensors, and control circuits with currents up to ~10-15 amps.
- 12 AWG to 8 AWG: Used for high current circuits like starter cables, alternator feeds, or high power accessories carrying 20 to 50+ amps.
For very high current applications (batteries, main power feeds), sizes can be 4 AWG or larger.
Automotive cables are often stranded for flexibility, with insulation suitable for oil and temperature extremes.
Industrial Power Wiring:
- Wide range depending on equipment load: from 12 AWG up to 1/0 AWG (or larger) for motors, heavy machinery, and power distribution.
- Large gauge wires such as 4/0 AWG (0000) or metric equivalents are common for supplying main feeders and motor starters.
These applications often require consideration of thermal ratings, mechanical protection (conduits, armored cables), and environmental resistances.
2.Common Signal Cable Gauges
Signal wires carry low currents but require attention to wire gauge for signal integrity, noise immunity, and connector compatibility. The gauges are generally much finer (higher gauge number) than power wiring.
- Typical gauges are 16 AWG to 22 AWG, with 18 AWG being very common for speaker wiring.
- Thinner gauges (20-22 AWG) are used for low-current signal lines like microphone or line-level audio cables.
- For twisted-pair data cables (e.g., Ethernet Cat5e/6), conductors are commonly 24 AWG solid or stranded.
- USB, HDMI, and other digital signal cables often use 28 to 32 AWG for control and low current signals internally.
Sensor and Control Wiring:
- Control signals such as from sensors, switches, PLC inputs/outputs frequently use 22 AWG to 24 AWG wires.
- For longer runs or interference-prone environments, larger gauges (20 AWG) or shielded twisted pairs may be used.
- Stranded wire is preferred where flexibility is needed; solid core for fixed installations.
Industrial Control Cables:
- Wire gauges vary from 20 AWG to 16 AWG depending on current requirements, distance, and noise environment.
- Multi-conductor cables often bundle these signal wires with shielding and separate power conductors.
Summary Table of Typical Wire Gauges by Application：
| Application | Typical Wire Gauge (AWG) | Notes |
| Home Power Circuits | 14 – 8 AWG | 14 AWG for 15A, 12 AWG for 20A, 10 AWG+ for heavier loads |
| Automotive Power Lines | 16 AWG – 4 AWG | 16-14 AWG low current, 12-8 AWG moderate, 4 AWG+ high current |
| Industrial Power Wiring | 12 AWG – 4/0 AWG and larger | For motors, heavy machinery, main feeders |
| Audio Signal Cables | 22 AWG – 16 AWG | Speaker wires commonly 18 AWG; line-level signals finer |
| Data Communication (Ethernet, USB) | 24 AWG (Ethernet), 28-32 AWG (USB, HDMI) | Solid or stranded depending on cable type |
| Sensor & Control Wiring | 22 AWG – 20 AWG | Stranded preferred for flexibility, shielded for noise immunity |
| Industrial Control | 20 AWG – 16 AWG | Multi-conductor, shielded cables common |
How Wire Gauge Affects Termination, Shielding, and Harness Reliability
Selecting the correct wire gauge is not only about ampacity or voltage drop. It also affects how your wire harness is built and how reliable it will be in real use. In many projects, failures happen not because the gauge was wrong, but because the gauge was not matched with terminals, connectors, or shielding design.
A. Wire Gauge vs. Terminal Crimp Quality
Every terminal has a defined wire range, for example 18 to 22 AWG. If the wire is too thin, the crimp may not grip firmly and can pull out under vibration. If the wire is too thick, the crimp barrel can deform and create high resistance, overheating, or intermittent contact. This is why I recommend checking both conductor crimp and insulation crimp specifications during harness design, especially for automotive and industrial applications.
B. Wire Gauge and Connector Compatibility
Connector housings and pins are designed around specific wire sizes. A mismatch can cause assembly difficulty, incomplete locking, or reduced contact area. In signal harnesses such as USB, LVDS, and sensor cables, choosing the wrong gauge can also affect impedance and signal stability. The correct gauge supports both mechanical fit and electrical performance.
C. Wire Gauge and Shielding Effectiveness for Signal Lines
For signal applications, wire gauge is often linked with shielding structure such as foil shield, braided shield, or shielded twisted pair. Thicker conductors can reduce resistance and attenuation, but without proper shielding and grounding, EMI issues can still appear. For noise sensitive systems, I usually recommend shielded twisted pair designs and planning the drain wire and termination method early, not after prototyping.
D. Wire Gauge and Flex Life in Moving Applications
In robotics, automated machinery, and drag chain systems, the same gauge can perform very differently depending on strand count. Fine stranded conductors with higher strand count offer better flexibility and longer bending life than solid or coarse stranded wires. When durability matters, wire gauge should be selected together with strand structure and jacket material such as PUR or TPE.
Practical Tip
When specifying a custom wire harness, do not list wire gauge alone. Define gauge plus insulation type plus terminal part number plus connector series plus shielding requirement. This helps ensure consistent production, reliable testing, and fewer field failures.
What Tools and Resources Can Help with Wire Gauge Selection?
Selecting the correct wire gauge requires more than just estimating current or voltage. To ensure safety, performance, and compliance, I always rely on trusted tools and reference materials. Here are the most useful resources I use during the design process:
1.Wire Gauge Charts and Calculators
Wire Gauge Charts:
These provide quick reference tables showing wire diameters, cross-sectional areas, ampacity (current carrying capacity), and resistance values for different gauge sizes (e.g., AWG, SWG). They help designers select an appropriate wire size based on current load, length, and allowable voltage drop. Many charts also factor in insulation type and temperature ratings.
Online Wire Size Calculators:
These interactive tools allow users to input parameters such as system voltage, current load, conductor material (copper or aluminum), length of cable run, maximum allowable voltage drop, and operating temperature to compute the correct wire gauge automatically. They simplify complex calculations and improve accuracy, especially for long runs or unusual conditions.
Popular examples include:
- OmniCalculator Wire Size Calculator: Covers DC/AC single and three-phase systems, adjusts for voltage drop and temperature, outputs AWG and cross-sectional area.
- Eland Cables Cable Calculator: Calculates cable size per British and IEC standards, including voltage drop and current ratings.
- Paige Electric Wire Size Calculator: Designed for pump and motor applications, includes NEC compliance considerations.
- General sites offering calculators with NEC compliance and wiring guidelines.
2.Online Selection Tools and Engineering Standards
Engineering Standards:
Detailed guidance for wire gauge selection is found in industry standards such as:
- NEC (National Electrical Code, USA): Specifies minimum wire sizes for safety, ampacity, voltage drop, and installation conditions.
- IEC 60364 Series: International standards covering low-voltage electrical installations, including wiring regulations and sizing.
- BS 7671 (IET Wiring Regulations): UK wiring regulations providing detailed cable sizing and selection criteria.
- AS/NZS 3008: Australian/New Zealand wiring standards for cable sizing emphasizing safety, voltage drop, and thermal ratings.
Tools Linked to Standards:
Many online calculators and software integrate or reference these standards to provide code-compliant wire gauge recommendations. For example, calculators from Elek Software or Eland Cables support BS 7671 and IEC standards. Some provide fault loop, short circuit, and conduit sizing in addition to ampacity and voltage drop.
Wire Size Conversion Tools:
To translate between different gauge systems (AWG, SWG, metric mm²), conversion charts and interactive tools are available from wire manufacturers, distributors, and platforms like DigiKey.
Other Resources:
- Manufacturer datasheets and technical guides with ampacity tables for various wire types and insulation ratings.
- Mobile apps and engineering software that include wire gauge calculators for field and design use.
- Technical handbooks and reference guides with detailed explanations on derating factors, temperature effects, and grouping effects.
Summary：
| Resource Type | Description & Use | Examples / Links |
| Wire Gauge Charts | Tables listing wire diameter, ampacity, resistance for different gauges | Engineering Toolbox, manufacturer datasheets |
| Online Calculators | Input electrical parameters to get recommended gauge size | OmniCalculator, Eland Cables, Paige Electric |
| Engineering Standards | Regulatory rules for safety, sizing, and installation | NEC (USA), IEC 60364, BS 7671 (UK), AS/NZS 3008 |
| Conversion Tools | Convert between AWG, SWG, metric sizes | DigiKey AWG Conversion, Alloy Wire Chart |
| Technical Guides & Apps | Detailed design considerations, derating, flexibility, environmental factors | Manufacturer handbooks, mobile apps |
Which Mistakes Are Most Important to Avoid?
When selecting wire gauge for power and signal applications, I have found that even small errors can lead to serious consequences. To ensure both performance and safety, here are the 4keys most common and critical mistakes I always work to avoid:
1.Undersizing Wire for the Current Load
One of the most common and dangerous mistakes is using a wire that is too thin for the amount of current it needs to carry. This can cause the wire to overheat, damage insulation, and in severe cases, start a fire. I always calculate the maximum expected current and choose a wire gauge that provides enough margin for safety and durability.
2.Overestimating the Importance of Insulation Thickness
It is easy to assume that thicker insulation means a wire can handle more power. However, what really matters is the conductor size, not just the insulation. A wire may look large, but if the copper inside is small, it will not safely carry high current. I always check the actual conductor gauge (AWG or mm²) rather than judging by appearance alone.
3.Ignoring Voltage Drop Over Long Distances
Voltage drop becomes a serious issue when wires are installed over long distances. If not accounted for, it can lead to poor equipment performance or unstable system behavior. I always consider both the current and the total length of the wire run, and I use voltage drop calculators or charts to select a thicker wire when necessary.
4.Using the Same Wire Type for Both Power and Signal
Power and signal cables have different roles, and using the same wire type for both can compromise system reliability. Power cables focus on current capacity and insulation, while signal cables are designed for data integrity and may need shielding to prevent interference. I always select the proper cable type for each function to avoid cross-talk, noise, or communication failure.
Avoiding these mistakes has helped me design safer and more reliable wiring systems. At Yihetai, we take each of these factors into account during every wire harness project to ensure long-term performance and full compliance with industry standards.
Why Proper Gauge Selection So Important?
In my experience, choosing the correct wire gauge is one of the most critical steps in designing a reliable electrical system. Whether I am working on power distribution or signal transmission, getting the gauge right has a direct impact on safety, performance, and long-term value. Here’s why：
1.Impact on Safety, Efficiency, and Product Longevity
Wire that is too small for the current it carries can overheat, melt insulation, or even cause fires. On the other hand, a wire that is properly sized keeps the system safe and stable. It also improves electrical efficiency by minimizing resistance, which helps the entire system run cooler and smoother. Over time, this contributes to fewer failures and extends the life of both the wiring and the connected equipment.
2.Reduced Energy Loss and Maintenance Cost
Improper wire sizing can lead to excessive energy loss due to heat buildup and voltage drop. This not only wastes power but also puts more strain on the power source. When I select the right wire gauge, I help reduce this loss and improve overall system efficiency. Lower energy waste means lower operating costs and fewer service calls for overheating or wire damage, especially in large or mission-critical installations.
3.Better Compliance with Regulatory Standards
Regulatory bodies like NEC, IEC, and UL set strict guidelines for wire size, current ratings, and insulation standards. Selecting the correct wire gauge is essential for meeting these rules and passing inspections. It also provides peace of mind to manufacturers, engineers, and installers who need to meet customer safety requirements or industry certifications.
For all these reasons, I never treat wire gauge selection as a guesswork task. At Yihetai, we help our clients evaluate all factors current, voltage, length, and environment so that every wire harness we produce delivers maximum safety, efficiency, and reliability.
How to Work with a Reliable Wire Harness Manufacturer?
When I begin designing a wire harness, especially for critical or demanding applications, I know the success of the project depends not only on the design but also on the manufacturing partner I choose. A reliable wire harness manufacturer does more than just assemble cables—they bring valuable insight and engineering support to help ensure the harness is built for performance, safety, and durability.
It is important to work with a supplier who understands the specific wire gauge requirements for your application. A knowledgeable manufacturer will consider all the key factors, including electrical load, voltage, cable length, operating temperature, and environmental conditions. They should also be familiar with industry standards and safety regulations, and be able to guide you in making decisions that balance performance and cost.
At Yihetai, I always take time to understand the full purpose and environment of the customer’s product before recommending wire sizes and materials. Whether the harness is intended for industrial machinery, automotive systems, or sensitive signal transmission, our team looks at the complete picture—how it functions, where it will be used, and what conditions it must withstand. From there, we help customers select the most appropriate wire gauge, insulation type, and connector design.
By working closely with a reliable and experienced manufacturer like Yihetai, you ensure that your final product will meet both technical expectations and long-term reliability. I believe early communication and clear understanding are the keys to a successful wire harness project.
Conclusion
After working on many electrical and electronic projects, I can confidently say that choosing the correct wire gauge is never a step to take lightly. Whether it is for power or signal applications, the right gauge ensures safety, efficiency, and long-term reliability. Getting it wrong can lead to overheating, signal loss, or even system failure.
If you are unsure about the best wire size for your specific needs, I always recommend speaking with a professional. A quick consultation can save you from costly mistakes and give you peace of mind that your system is built to perform.
At Yihetai, we have the experience and tools to help you select the ideal wire gauge for any application. Whether you need support with material choices, prototyping, or complete custom harness design, our team is ready to help. Feel free to contact us，we are here to support your next project with confidence and precision.
